Our Home Energy Storage System: the perfect solution designed for convenience, safety, and versatility. Whether you need backup power, off-grid capabilities, scheduled usage, or self-consumption, our system delivers consistent reliability. It ensures uninterrupted operation of your solar energy system during power outages and harnesses the stored energy from daytime for powering your home at night. Experience the peace of mind and sustainable energy independence with our Home Energy Storage System.
>Self-powered home
Use solar and Allspark power to reduce reliance on the grid and run your home off solar day and night.
>Backup Power
Protect your home from a power outage with seamless and reliable backup power.
>Energy saving
Reduce your electricity bill, if your utility offers a time-of-use rate plan.
>Home energy control
Manage and control your home energy by our mobile App.

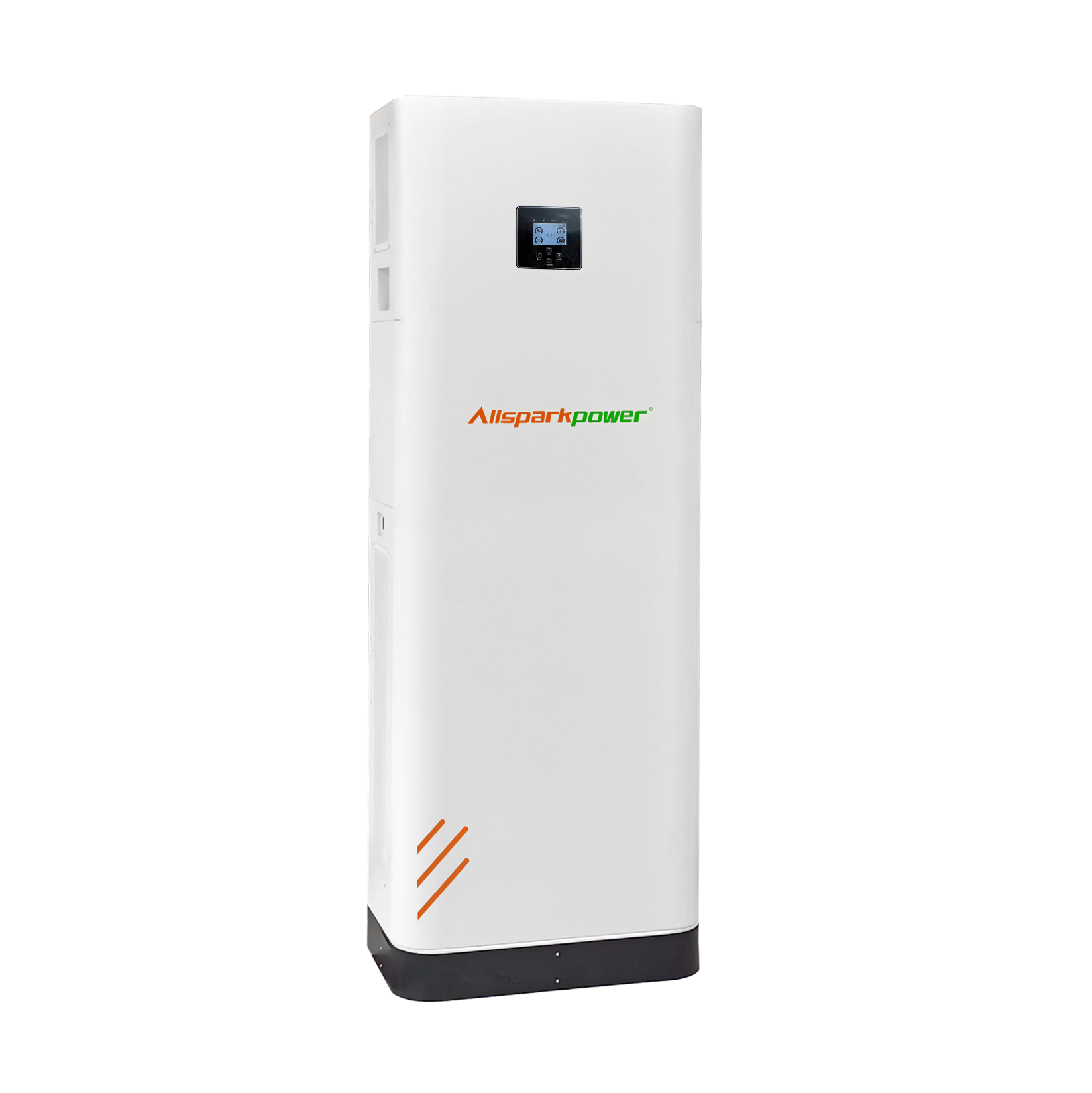

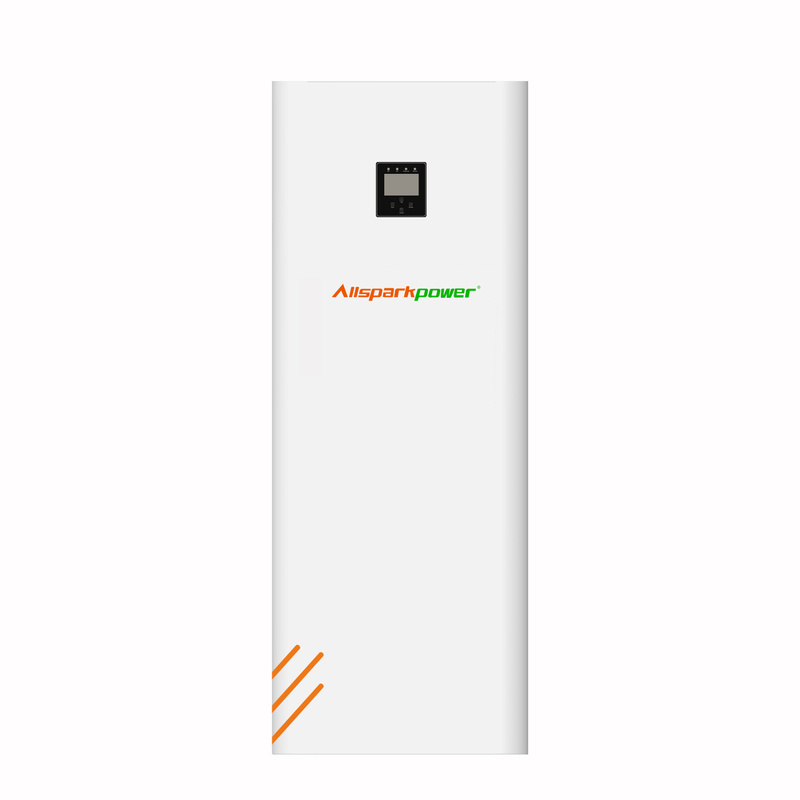

AP-80192 Allsparkpower is an integrated system including photovoltaic power generation, energy storage, home energy management and energy efficiency management system.
| Model | AP-80192 |
| Feed-in Type | Single / Split / Three Phases |
| Output Voltage | 120 / 208 / 240 / 230 / 400Vac |
| Storage Ability | 19.2 kwh |
| Max Solar input | 10.4 kwp |
| PV Side Max. Input Voltage | 370V (100V~500V) |
| MPPT Voltage | 125V-425V |
| Continuous Output Power | 8 kw |
| Peak power | 16 kw (discharge only) |
| Battery DC voltage | 48V |
| Depth of Discharge | 90% |
| Operating Humidity(RH) | Up to 100%,condensing |
| Operating Temperarure | -10℃-50℃ / 14°F~122°F |
| Storage Temperature | -20℃-60℃ / 4°F~140°F |
| Warranty | 10 years |
