Core Characteristics
- High Compatibility & Flexibility
- The REVO Series boasts exceptional compatibility, supporting both built-in and external configurations, making ideal fit for a diverse range of small to medium-power UPS (Uninterruptible Power Supply) systems and other inverter devices. This ensures seamless integration into existing infrastructure or new deployments, maximizing operational efficiency.
- Advanced Communication Protocols
- Embracing the latest technology, the REVO Series supports both CANBUS and MODBUS communication protocols, enabling seamless data exchange and remote monitoring capabilities. This feature significantly enhances system manageability and allows for precise control and monitoring of battery status, ensuring optimal performance and timely maintenance.
- Scalable
- The series' second or third-level management structure allows for external parallel connection, providing unparalleled scalability for future expansion needs. Whether you're scaling up your data center or expanding your renewable energy storage capabilities, the REVO Series grows with you, ensuring continuous and reliable power backup.
- Precision Control & Efficiency
- Boasting a remarkable 3mV voltage accuracy and 1°C temperature control, the REVO Series delivers unparalleled precision in power delivery. Coupled with a high discharge efficiency exceeding 90%, this ensures minimal energy maximum performance from every cycle.
Applications

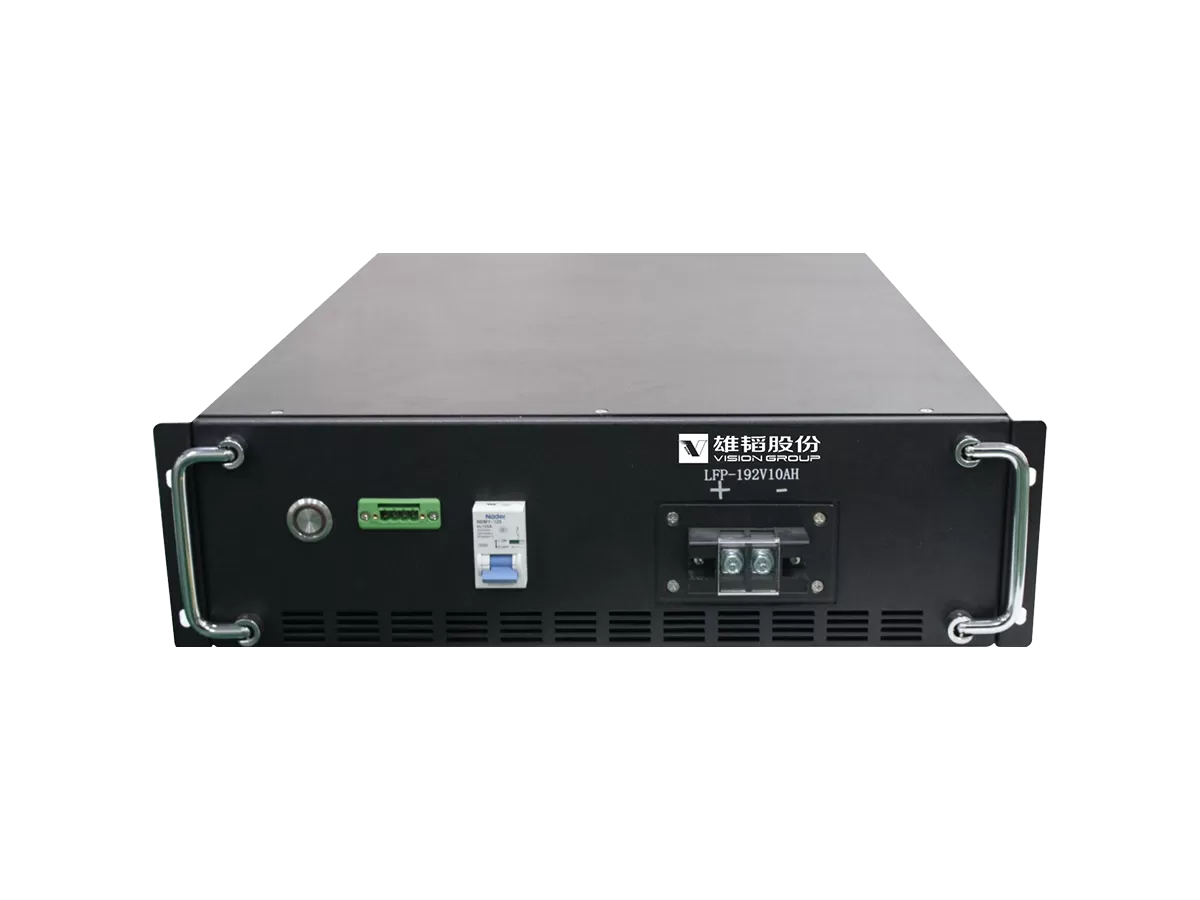

The Vision Lithium Battery Series REVO Single-phase is tailored to meet the demanding requirements critical infrastructure sectors:
- Data Centers: Ensure uninterrupted operation of servers and storage systems, protecting valuable data and maintaining business continuity.
- Computer Rooms of Financial Organizations: Safeguard against power outages, maintaining real-time transactions and protecting sensitive financial data.
- Computer Rooms of Rail Transportation: Power essential systems in railway signaling, communication, and control rooms, ensuring safe and efficient train operations.
- Wind-Solar Hybrid Systems: Optimize energy storage and distribution in renewable energy installations, maximizing the utilization of.
- Energy Storage in Areas Without Power Supply: Provide reliable and sustainable power solutions to remote locations, fostering economic development and improving quality of life.
Technical Specifications:
| Type |
Capacity |
Module type |
Module type |
Dimensions(mm) |
Weight（kg) |
Nominal energy(kwh) |
| D |
W |
H |
| SP12V-6 |
12.8V6AH |
1.5AH |
4S4P |
151 |
65 |
100 |
0.95 |
0.076 |
| SP12V-9 |
12.8V9AH |
9Ah |
4S1P |
65 |
152 |
98 |
1.25 |
0.115 |
| SP12V-100 |
12.8V100AH |
100AH |
4S1P |
330 |
171 |
220 |
10.5 |
1.28 |
| SP12V-150 |
12.8V150AH |
50AH |
4S3P |
482 |
170 |
240 |
20.5 |
1.92 |
| SP12V-200 |
12.8V200AH |
100AH |
4S2P |
522 |
238 |
223 |
21 |
2.56 |
| SP192V-28 |
192V28AH |
6AH |
5P60S |
440 |
700 |
174 |
68 |
5.37 |
