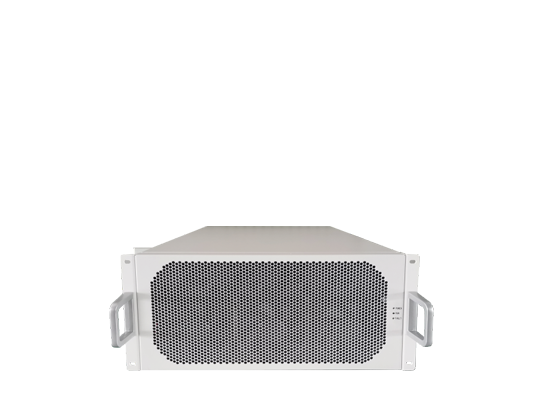

Technical Parameters 1Input voltage380V，-30%~+20%Input voltage208V，-10%~+20%Input frequency50Hz，±10%Connection mode3P3W/3P4W (compatible with both)Module capacity30kvar、50kvar、100kvar、150kvar 25kvar、50kvarSingle cabinet capacity30kvar~1000kvar 25kvar~500kvarResponse time≤5msPower loss＜3%Control modeReactive power compensation, constant reactive power, constant power factor.Control accuracyNot less than 2.5%Compensation functionReactive power, three-phase imbalance; priority selectable and settableCT scan requirements5A, sampling available on both the grid side and the load side.ProtectionMultiple protection functions such as overcurrent, overheating, over and under voltage protection.IP gradeModule: IP20, complete machine: IP30; higher IP grades for the complete machine can be customized.Ambient temperatureWorking temperature: -10°C ~ 50°C (derating above 40°C)；Storage temperature: -25°C ~70℃Ambient humidity≤95% (45°C), no condensationAltitude<2000m; for altitudes over 2000 meters, use according to derating requirements specified in GB/T3859.2Incoming modeWhole cabinet: Top entry line/bottom entry line/through-busbar on top of the cabinetOverall dimensions(W×D×H: mm)Module::50kvar：440mm×560mm×88mm（2U）；100kvar：440mm×560mm×145mm（3.3U）；150kvar：440mm×560mm×228mm（5.2U）。Complete machine: 800 x 1000 x 2200; dimensions of the complete machine can be customizedInstallation methodModule: rack-mounted or wall-mounted; complete machine: freestanding installationDisplay screen7-inch touch screenDisplay contentVoltage, load current, compensating current, grid-side current, voltage distortion rate, current distortion rateCommunication interface and communication modeRS485, LAN, WiFi (optional configuration)Communication protocolModbus ProtocolTechnical Parameters 2Input voltage690V，±10%Input frequency50Hz，±5%Connection mode3P3WModule capacity150kvar、175kvar、200kvarSingle cabinet capacity150kvar~800kvarResponse time≤10msPower loss<3%Compensation functionInductive reactive power, capacitive reactive powerCT scan requirements5A, sampling available on both the grid side and the load sideProtectionMultiple protection functions such as overcurrent, overheating, over and under voltage protection.IP gradeComplete machine: IP20; higher IP grades for the complete machine can be customized.Ambient temperatureWorking temperature: -10℃~ 50℃ (derating above 40°C);Storage temperature: -25°C ~70℃Ambient humidity≤95% (45°C), no condensationAltitude<1000m; for altitudes over 1000 meters, use according to derating requirements specified in GB/T3859.2Incoming modeWhole cabinet: Top entry line/bottom entry line/through-busbar on top of the cabinetOverall dimensions(W×D×H: mm)Complete machine: 1400×1000×2200; dimensions of the complete machine can be customizedDisplay screen7-inch touch screenDisplay contentCurrent, voltage, power, distortion rate, etc.Communication interface and communication modeRS485Communication protocolModbus Protocol
