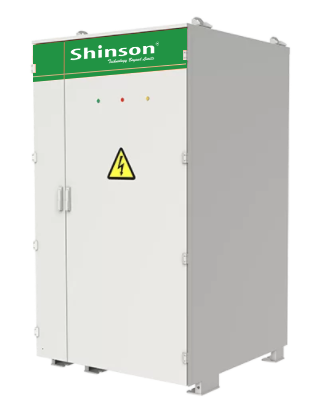

MEGATRON 1500V 373kWh liquid-cooled energy storage battery cabinets are an integrated high energy density, long lasting, battery energy storage system. Each battery cabinet includes an IP56 battery rack system, battery management system (BMS), fire suppression system (FSS), HVAC thermal management system and auxiliary distribution system. Outdoor liquid cooled cabinets can be paired together utilizing a high voltage/current battery combiner box.
Outdoor liquid cooled cabinet is manufactured to be a install ready and cost effective part of the total on-grid, hybrid, off-grid commercial/industrial or utility scale battery energy storage system. BESS string setup examples are:
12 units at 0.25C = 4472.4 kWh
9 units at 0.5C = 3354.3 kWh
6 units at 1C = 2236.2 kWh
Battery Packs utilize 280Ah Lithium Iron Phosphate (LiFePO4) battery cells connected in voltage DC configurations (1331.2V). Liquid cooling is integrated into each battery cabinet using a 50% ethylene glycol water solution. Aerosol fire suppression is also integrated into each outdoor cabinet allowing for safer and more controlled energy storage system design for firefighting.
373kWh rack systems can be paired with 1500V PCS inverters to complete fully functioning battery energy storage systems.
The battery pack, string and cabinets are certified by TUV to align with IEC/UL standards of UL 9540A, UL 1973, IEC 62619 etc.
The MEGATRONS 373kWh Battery Energy Storage Solution is an ideal solution for medium to large scale energy storage projects. Utilizing Tier 1 LFP battery cells, each battery cabinet is designed for an install friendly plug-and-play commissioning with easier maintenance capabilities.
Each outdoor cabinet is IP56 constructed in a environmentally controlled liquid cooled cabinet including fire suppression. Multiple 373kWh cabinets can be installed together creating up to 4472kWh energy storage blocks.
Designed for 373kWh’s to 100MWh+ systems.Utility Projects
Grid Support
Business’ & Factories
Shopping and Distribution Centers
Microgrid Island communities
Renewable Energy Applications
More Land Area Savings
Better Installation Efficiency
Lower Energy Consumption
Liquid Cooling with 98% Longer Life
Adaptable with a Variety of PCS’s 600V-1500V
Easy to Transport, Install and Maintain
Each 373kW liquid cooled outdoor cabinet solution is pre-engineered and manufactured to be ready to install.
System options can include:
Battery Racks & Wiring (LFP)
DC Battery Combiner Cabinet
BESS Controller with Battery Management System
High Voltage Units (BMS)
PCS 1500V (depending on design) (E.g. Delta, Sungrow, PE, SMA and Kelong)
Outdoor Storage Cabinet
HVAC System
Fire Suppression System
Installation Manuals, Certificates, Usage Guide, etc.
