MEGATRON 50kW Battery Energy Storage Systems have been created to be a install ready and cost effective on-grid, hybrid, off-grid commercial/industrial battery energy storage system.Each BESS is designed and shipped with the batteries pre installed utilizing UN 3536 shipping standards. Each BESS container has a PV inverter making it easy for completing your renewable energy project.Multiple functionality modes allows simple switching between Grid, PV, or Genset enabling better user control and stability. All system systems are offered in either 400VAC or 480VAC 3 phase.
Our commercial and industrial battery systems include Lithium Iron Phosphate (LiFePO4) battery packs connected in high voltage DC configurations. Battery Systems come with 5000 cycle warranty and up to 80% DOD (Depth of Discharge) @ 1C 25℃.
These DC coupled systems (higher round trip efficiency) offer large residential and light commercial customers turn key energy storage solutions that are designed for 10+ years of hassle free energy generation and usage.
Offered with a 24 x 7 cloud-based monitoring and operation platform supports Mysql database and multiple mobile and PC devices. The battery pack, string and ESS are certified by TUV to align with IEC/UL standards of UL 9540A, UL 1973, IEC 62619 etc.
NOTES:
MEGATRON 50kW requires 40′ HQ shipping containers due to the BESS enclosure height
MEGATRON 50kW x 64kWh is not available for the North American Market
MEGATRON 50kW x 128kWh and 192kWh for NA market come in 10′ shipping enclosures.
MOQ is 3 units
MEGATRONS 50kW Battery Energy Storage Solution is the ideal fit for large residential or light commercial applications. Utilizing Tier 1 LFP battery cells, each commercial BESS is designed for a install friendly plug-and-play commissioning.

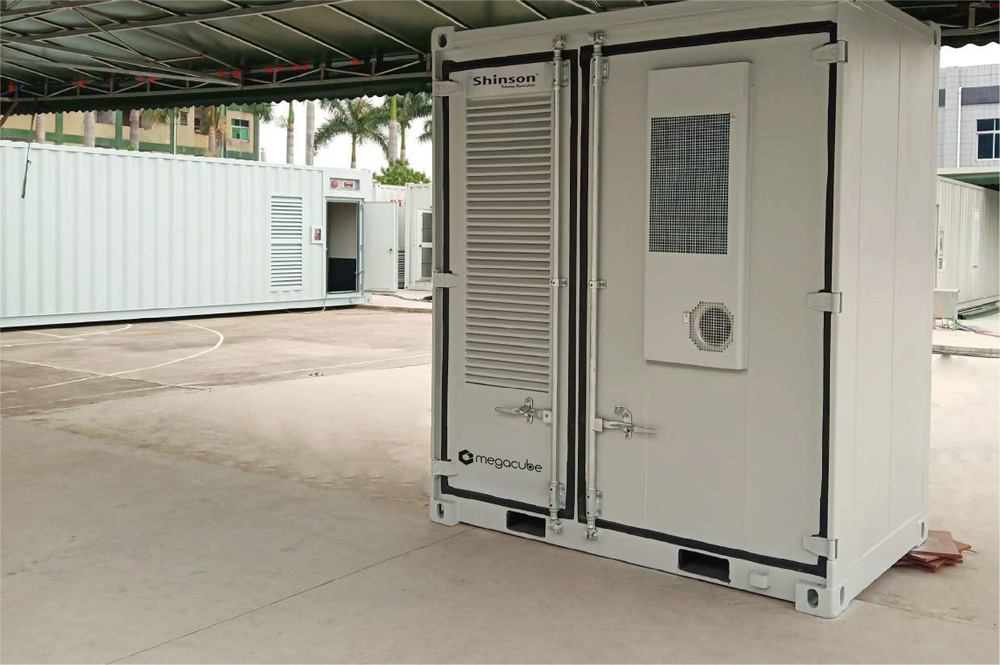

Each system is constructed in a environmentally controlled container including fire suppression.Each complete system offers users a hassle free 10+ year service life and hold internationally compliant certifications.
Large Residences
Small Business’ & Factories
Shopping and Distribution Centers
Offices Buildings
Schools and Libraries
Island communities
EV Stations
Automatic Switching Between ON/Off-Grid
PV, Genset & Grid Connect Ready
Built in Climate Control & Fire Suppression
Small Footprint to Power Ratio
Can Integrate with Solar + EV Charging
Real Time System Monitoring
Each 50kW BESS solution is pre-engineered and manufactured to be ready to install.

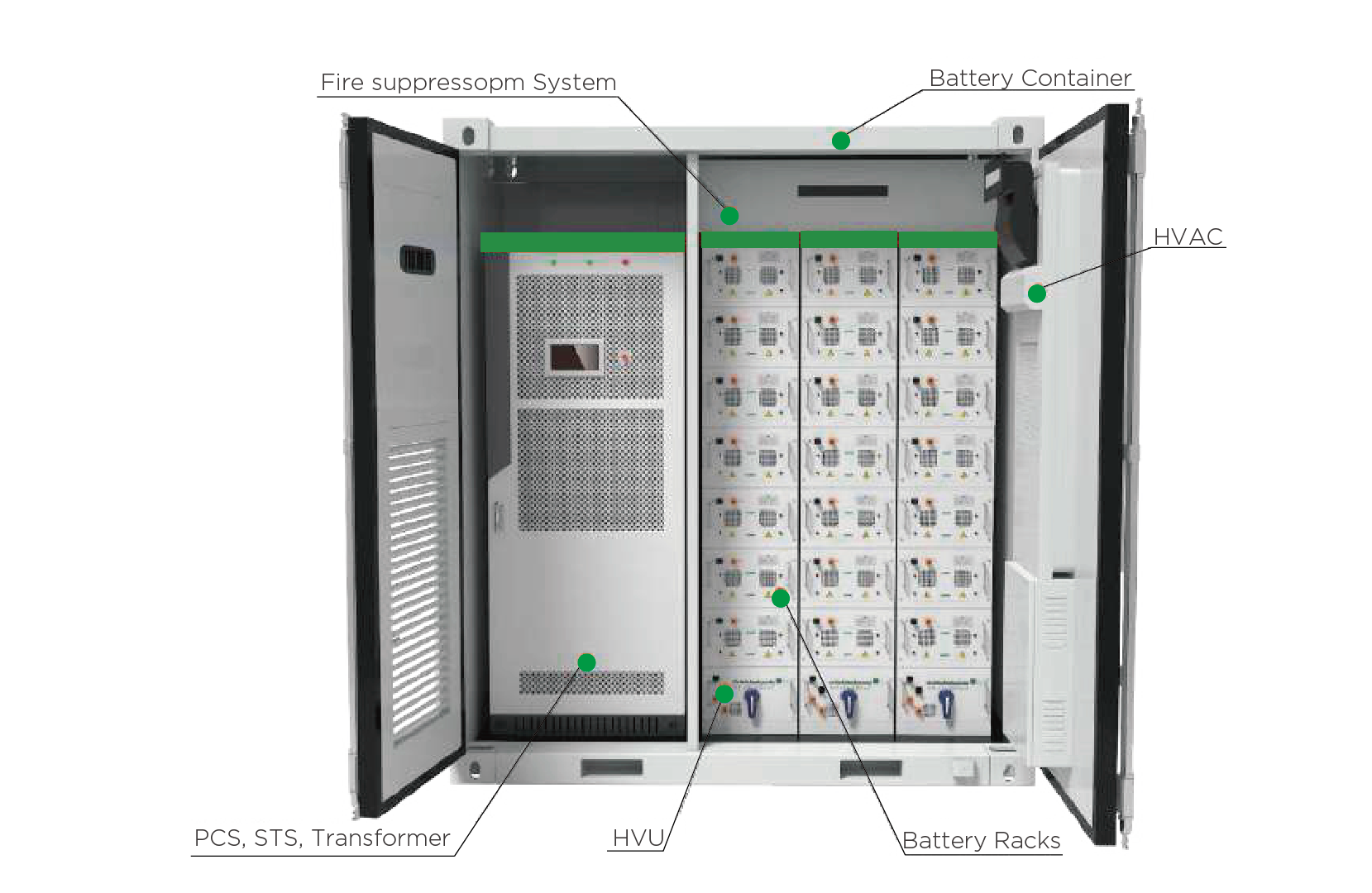

Each BESS includes:
Battery Racks & Wiring (LFP)
BESS Controller with Battery Management System
High Voltage Units (BMS)
50kW Power Conversion System (PCS) (DC/AC)
50kW PV Inverter (DC/DC)
50kW Transformer
100kW STS (excludes N/A systems)
7 foot Storage Container
HVAC System
Fire Suppression System
Installation Manuals, Certificates, Usage Guide, etc.

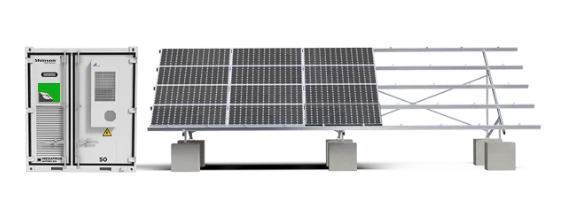

ATLAS Commercial and HERCULES Carport PV systems perfectly pair with MEGATRON battery energy storage systems.
MEGATRON 50kW systems can be paired with 50kW to 100kW’s of PV. Each 50kW BESS has a 50kW solar inverter with 1 MPPT integrated into the containerized system.
A solar combiner box is designed in to bring all the PV strings together at the correct DC voltage window.
HERCULES Solar Carport Systems
