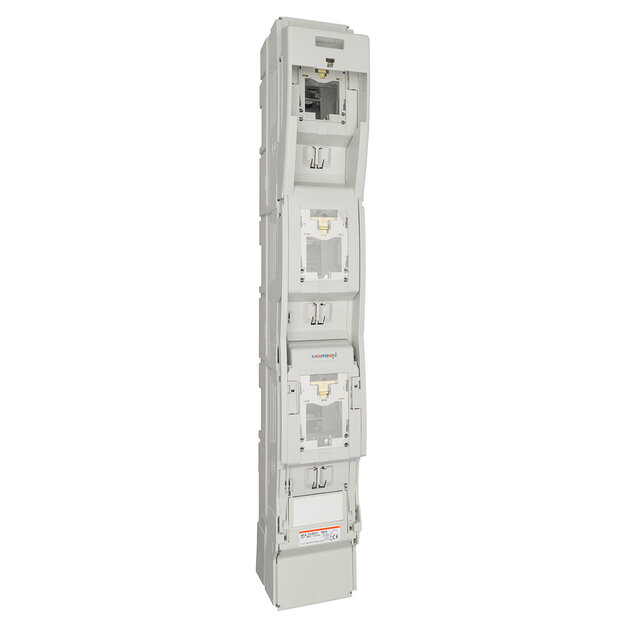

MULTIVERT? NH vertical fuse switch disconnectors meet all functions of NH fuse switch disconnectors. They are designed for installation on to bus bars in triple pole arrangements. MULTIVERT? 800Vac range includes Size 1 Multivert rated at 160A and answers the specific needs of Photovoltaic application for using String inverters rated at 800Vac. Multivert 800Vac are used for installation on to 185mm bus bar systems. MULTIVERT? 800Vac are designed for NH fuse-links in accordance with IEC/EN 60269, VDE 0636, size 1: 160A. The system is a modular system, that allows the installation of the individual components. MULTIVERT? offer the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance.
| Item number | L1069372 |
| Catalogue No | 8.150.000 |
| Description | NH fuse-switch disconnector MULTIVERT? Size 1 160A 1x3-Pole switching Bus bar system 185mm Screw M10 bolt |
| EAN/UPC Code | 9008567015278 |
| Frequency (Hz) | 50...60 Hz |
| Rated voltage AC IEC | 800 V |
| Ampere Rating | 160 A |
| Utilization Category | AC 21 B @ Ue = 800 V; Ie = 160 A |
| Switchability | 1x3-pole switching |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Short Circuit Current Rating (SCCR) | Ue=AC 800 V; Ie=160 A 10kA |
| Fuse Size | 1 |
| Number of Poles | 3-Pole |
| Degree of Pollution | 3 |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 1000 V |
| Max Power dissipation of Fuse Links Pn | 23 W |
| Power Dissipation by Ith without Fuse-Links | 15 W |
| Installation Mounting | Bus bar system 185 mm |
| Product Width | 98 mm |
| Product Length | 190 mm |
| Product Height | 685 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 4.67 kg |
| Sell Pack Width | 199.9 mm |
| Sell Pack Length | 705.1 mm |
| Sell Pack Height | 104.9 mm |
| Product group | IEC Fuse Switch Disconnectors |
| Product Weight | 4.67 kg |
| Conventional Free Air thermal Current With Fuse-Links Ith | 160 A |
