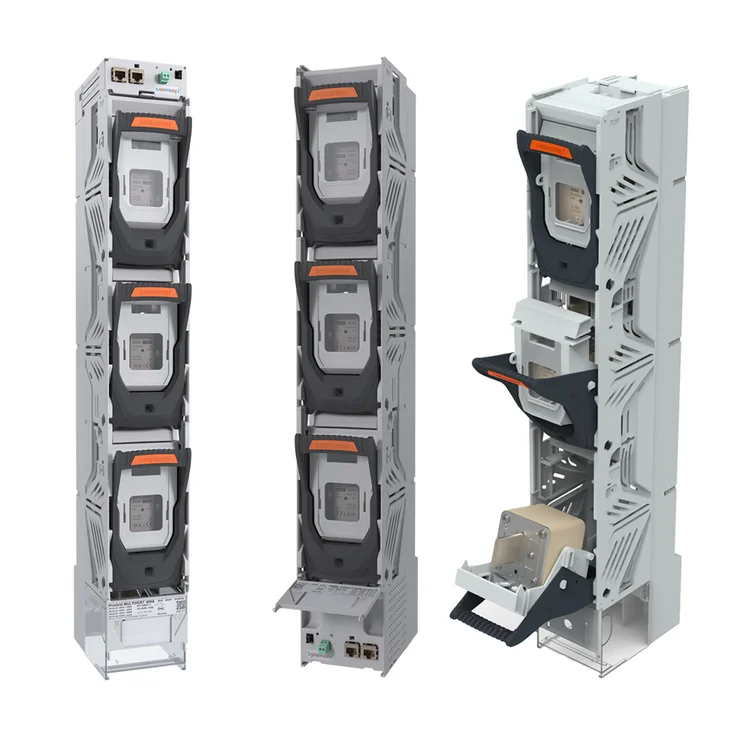

ProGrid NH vertical fuse switch disconnectors are designed for installation to 185mm busbars systems in triple pole arrangements. The installation depth of ProGrid is 150mm. Thanks to its modular system, the ProGrid solution allows the installation of individual components, it offers the user the possibility of a quick and easy installation as well as a high degree of protection during installation and maintenance with its two-stage opening: in parallel then in rotation, patented by MERSEN. 2 alternative designs are available for a user-friendly installation according to the needs: - The standard ProGrid fuse switch disconnector to protect the substation from overcurrent and interrupt the electrical circuit’s flow. - The smart ProGrid fuse switch disconnector to monitor energy flow in addition to its standard functions; the ProGrid solution can be retrofitted from Standard ProGrid to Smart ProGrid also on customer side.
| Item number | N1212963 |
| Catalogue No | PG3-1P-B-ST1A |
| Description | NH Fuse switch disconnector ProGrid Size 3 3x1-pole switching Bus bar system 185 mm ST1A |
| EAN/UPC Code | 3605340716351 |
| Frequency (Hz) | 50...60 Hz |
| Switchability | 3x1-pole switching |
| ROHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | 80kA@Ue = AC 400 V; Ie = 630 A / 80kA@Ue = AC 500 V; Ie = 630 A / 80kA@Ue = AC 690 V; Ie = 500 A |
