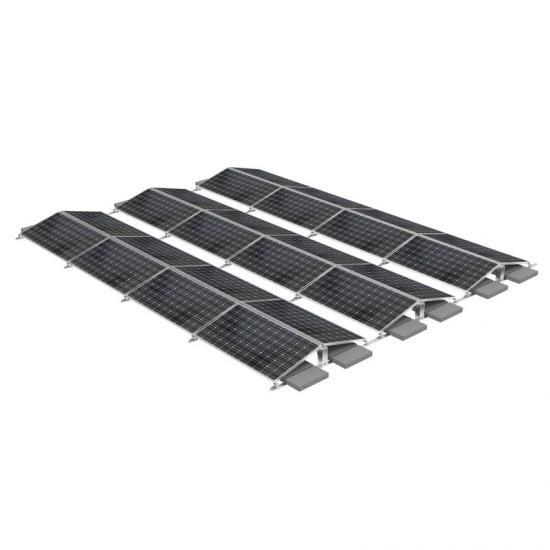

Product Name:?Non Penetration Ballasted Racking System for Solar
Product Description:
YANGLIN Ballasted Mounting System?is a common alternative used on solar installations for flat roof, it's non penetrate, so you don't need worry your roof will have any?penetrations. The different with?others roof mount is secured way,?ballast mounts are secured with weight by concrete block to secure an array to the roof and prevent wind lift or other movement , but others?are secured to the roof beams of the building through penetrations in the roof.?
Brief Introduce:
Light Weight, Convenient and Durable.
Install Site: Flat Concrete Roof or Open Filed
Adjustable Angle: 5°-10°-15°-20° or customized
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m2
Material: Al6005 &?Al5052 &?SUS304
Warranty: 10 years warranty.

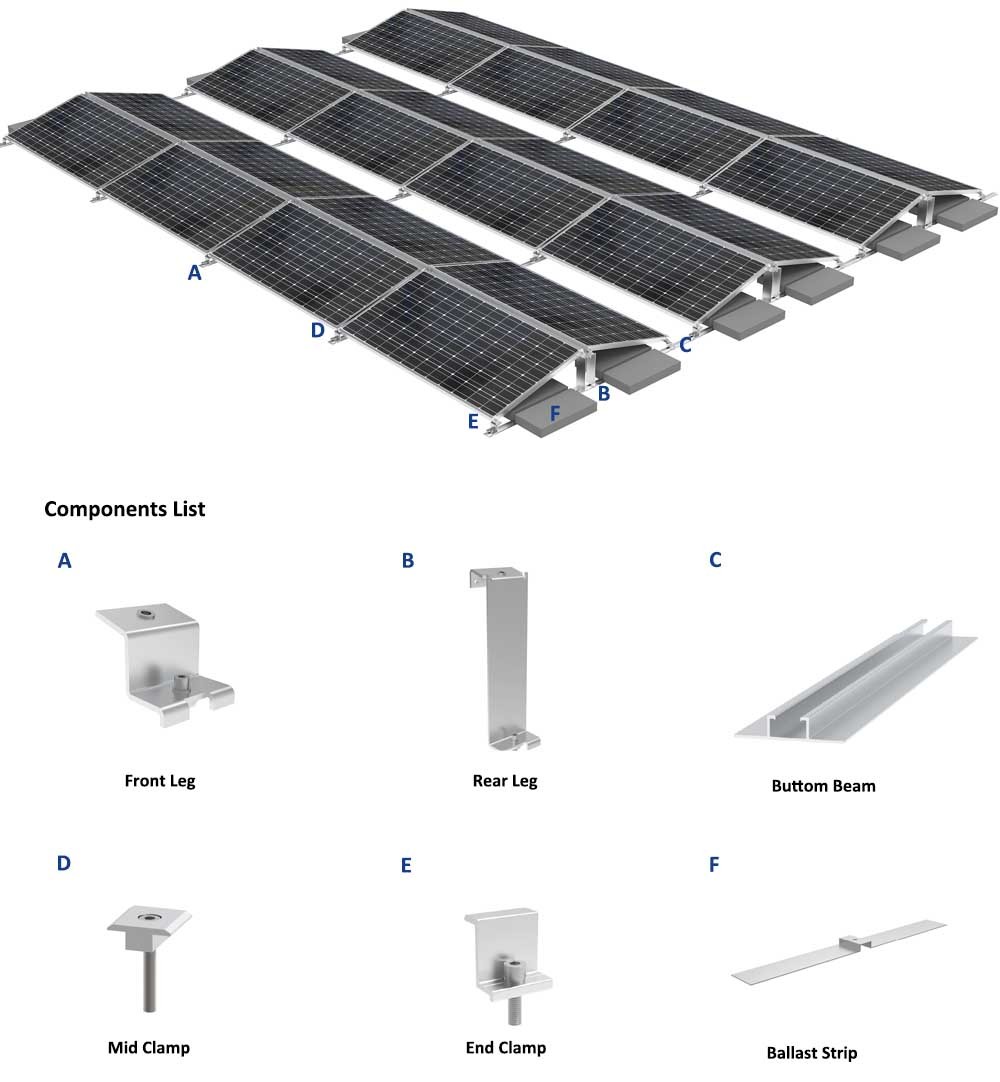

Components List:
A: Front Leg
B: Rear Leg
C: Buttom Beam
D: Mid clamp
E: End clamp
F: Ballast Strip

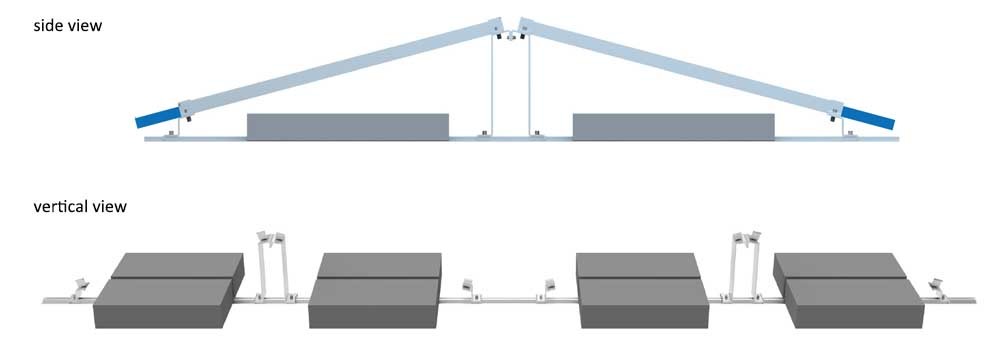

Different View of Ballasted Solar Mounting Systems:
