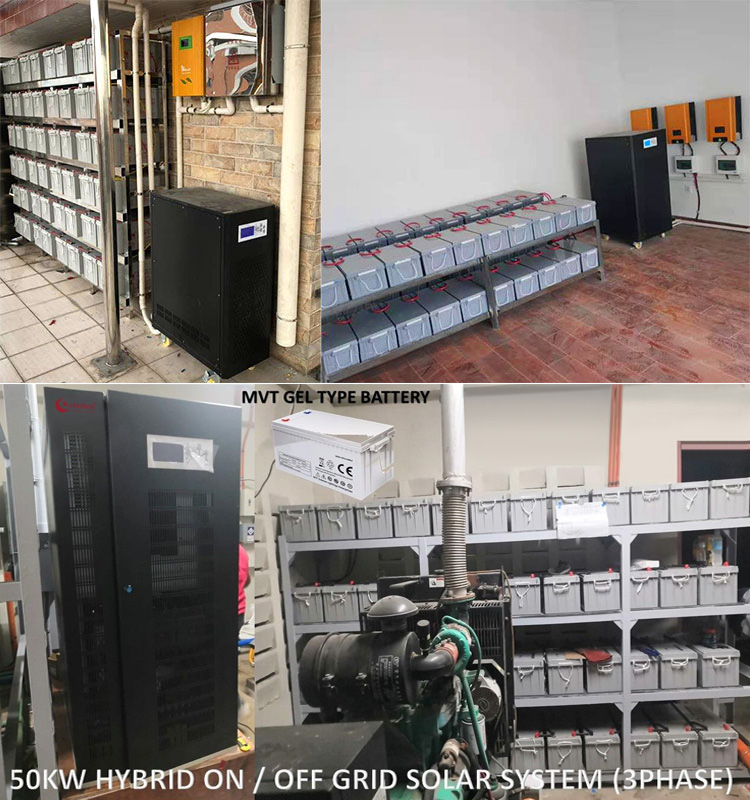

1. Three phase solar inverter low DC voltage, relieving battery cost
2. Automatically adjust AC output frequency conforming to AC input
3. Various protection (overload/over current/shortcircuit/high temperature/low battery voltage/high battery voltage)
4. Intelligent LCD dispalys input&output voltage, frequency, battery capacity, fault, load etc
5. Pure sine wave output, low frequency transformer, isolated input&output design
6. Constant current&voltage design to prolong battery service life
7. Cold start on battery, automatical start on mains and restart function
8. Multiple communication port (RS232/RS485/SNMP/APP optional) to realize remote intelligent control)
9. Excellent mirco processor control with reliable quality and outstanding characteristic
0. Built-in PWM or MPPT charge controller

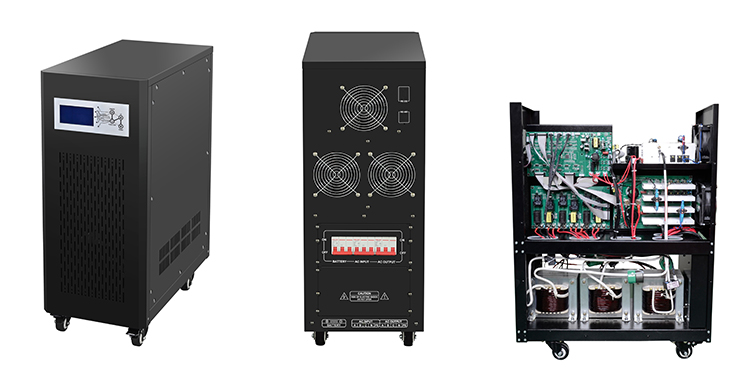

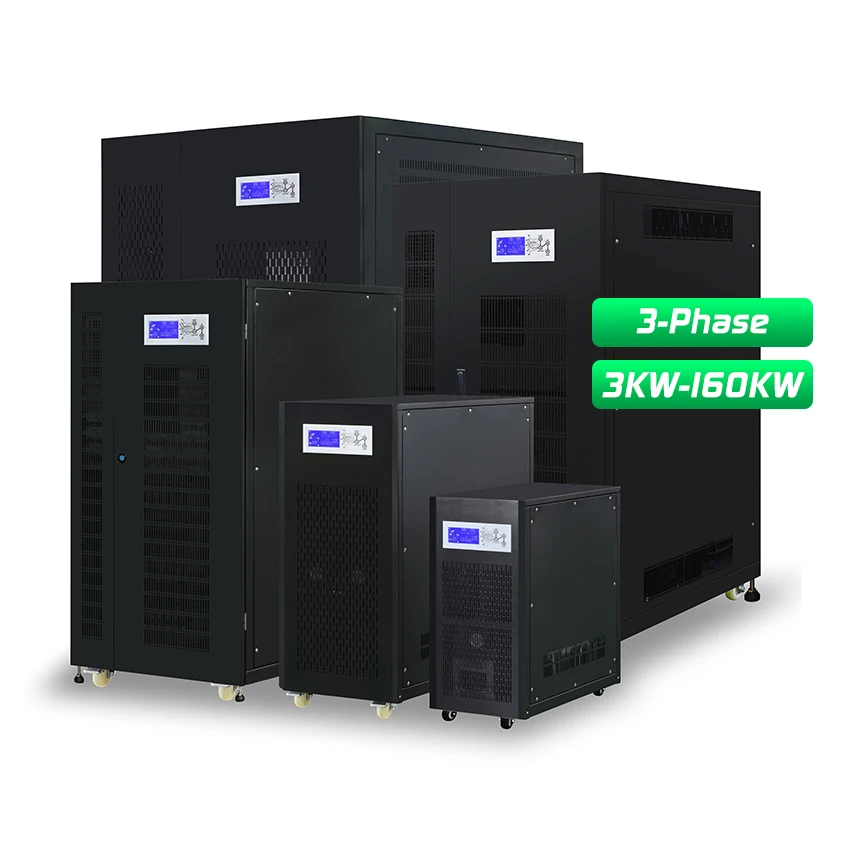

4kva~8kva three phase solar inverter:

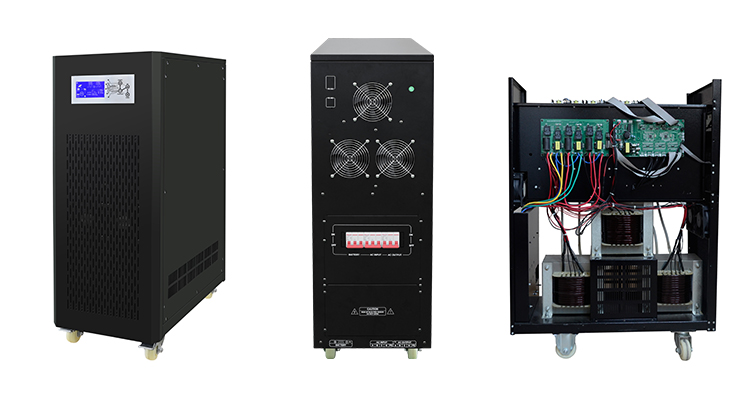

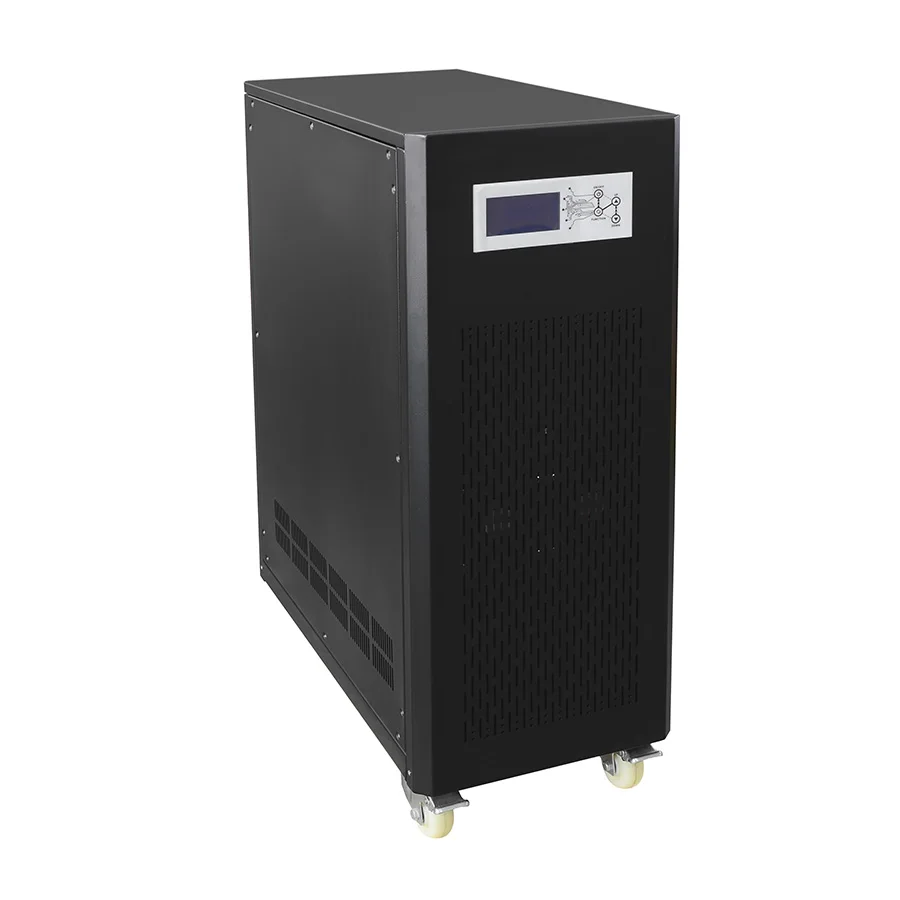

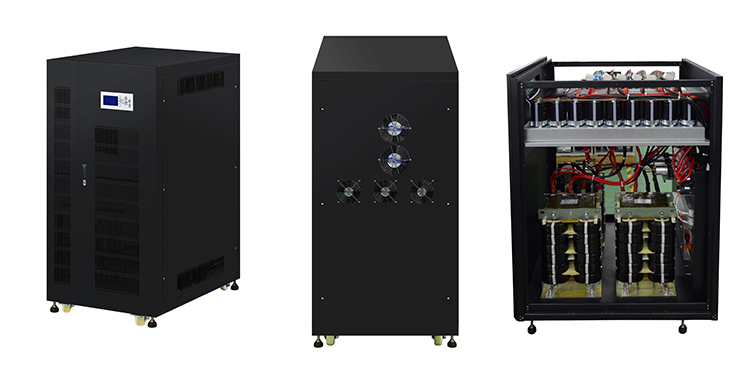

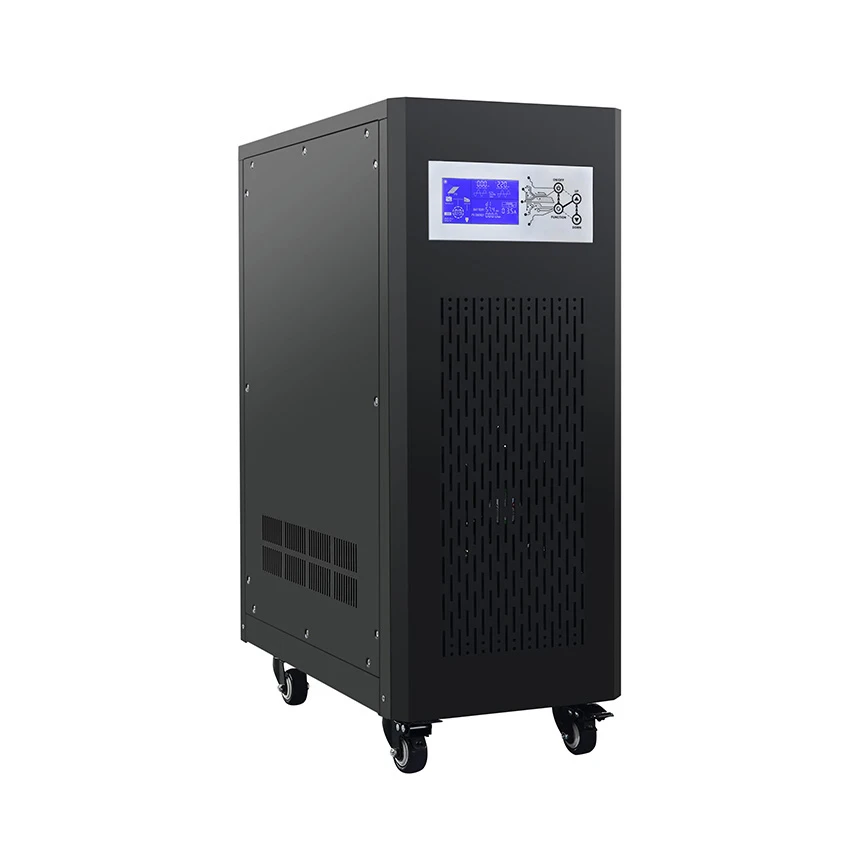

10kva~30kva three phase solar inverter:

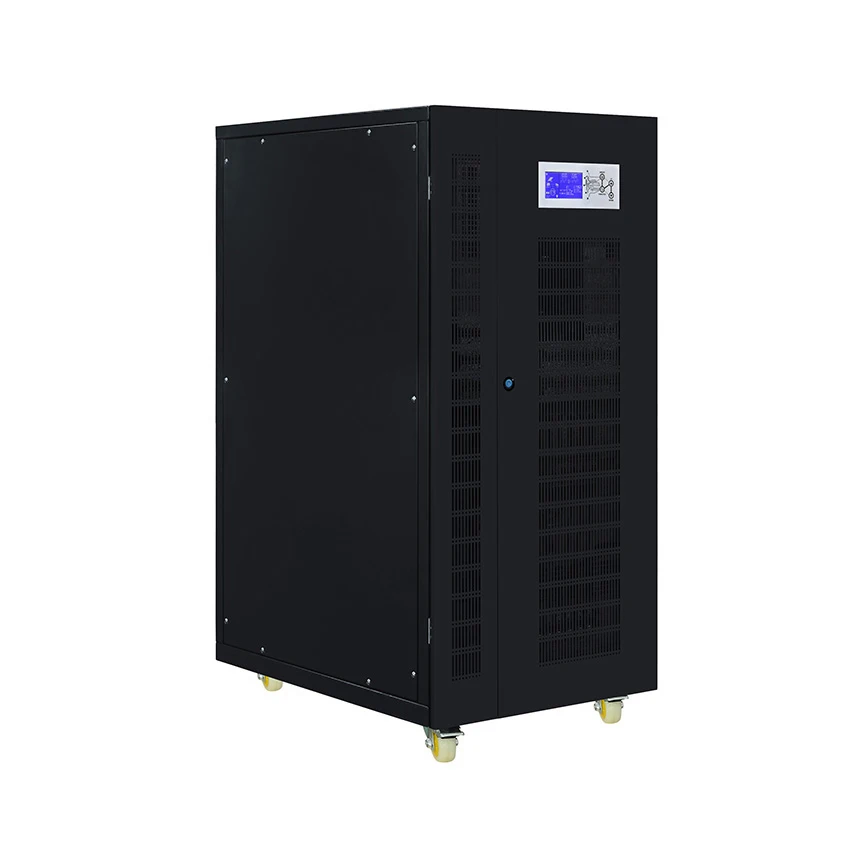

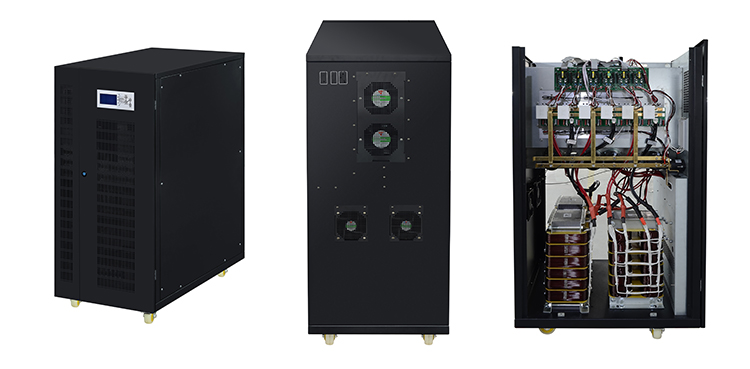

40kva~80kva three phase solar inverter:

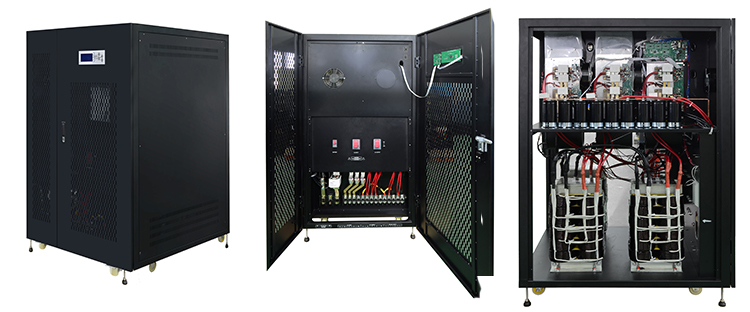

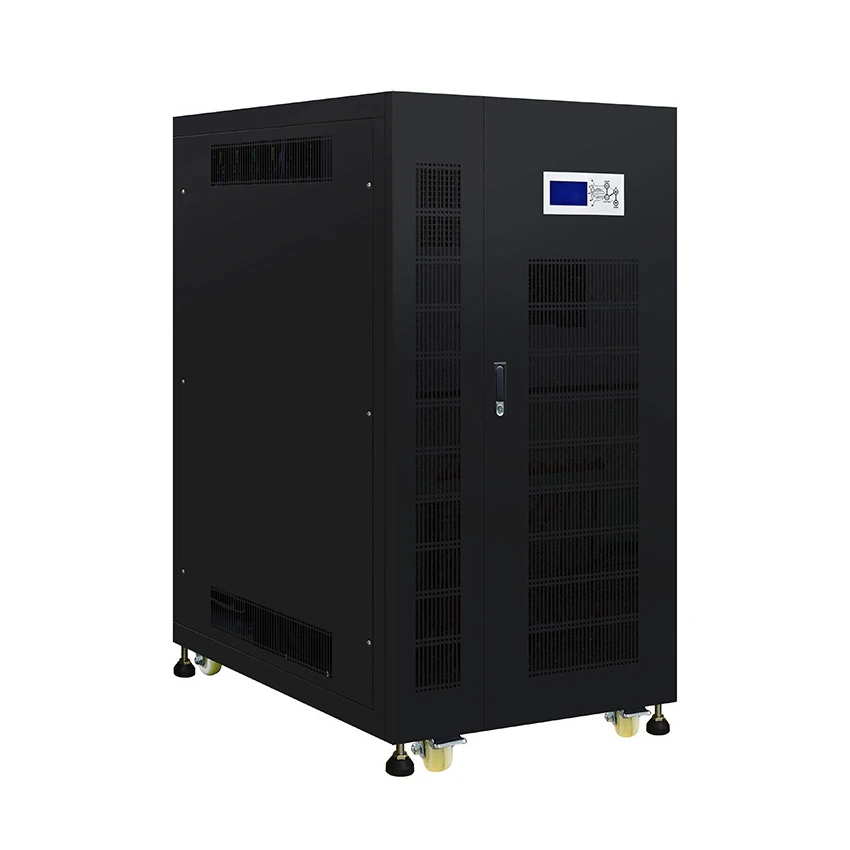

100kva~150kva three phase solar inverter:

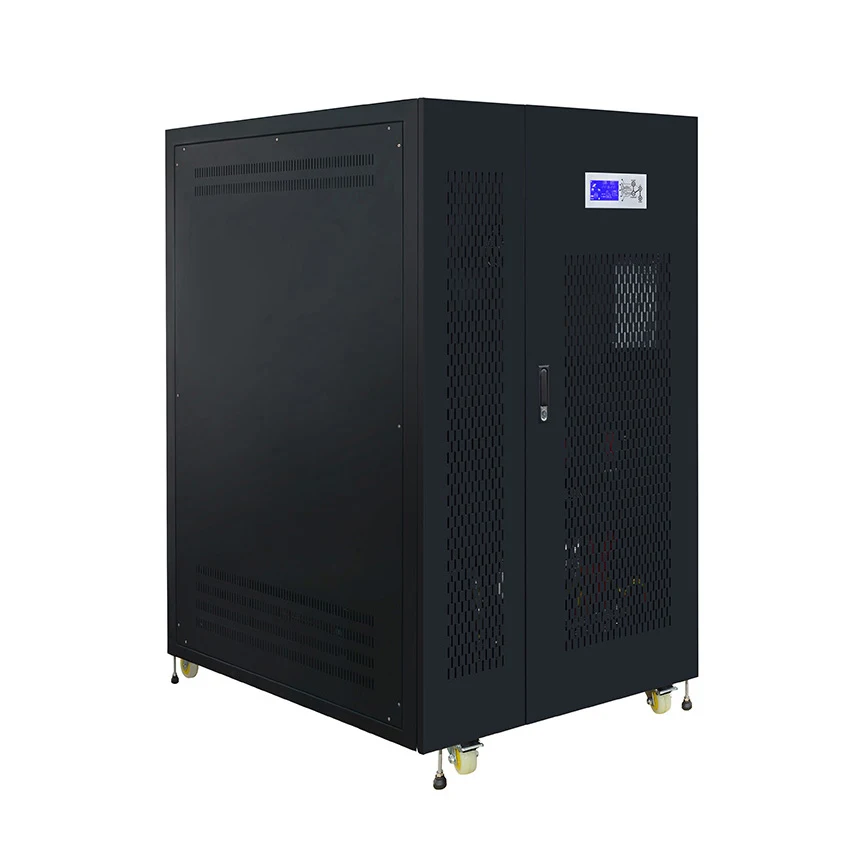

200kva three phase solar inverter:
The three phase solar inverter can built-in mppt charge controller optional.
| Specification | |||||||||
| Model HDSX | 4KVA | 6KVA | 8KVA | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | |
| Rated Power | 3.2KW | 4.8KW | 6.4KW | 8KW | 12KW | 16KW | 20KW | 24KW | |
| Peak Power(20ms) | 9.6KW | 14.4KW | 19.2KW | 24KW | 36KW | 48KW | 60KW | 72KW | |
| Start Motor | 3HP | 4HP | 4HP | 5HP | 7HP | 10HP | 10HP | 15HP | |
| Battery Voltage | 48/96/192VDC | 96/192/384VDC | 192/384VDC | ||||||
| Size(L*W*Hmm) | 565*300*775 | 725*365*1010 | |||||||
| Packing Size(L*W*Hmm) | 625*360*895 | 785*425*1135 | |||||||
| N.W.(kg) | 65 | 73 | 80 | 122 | 134 | 160 | 176 | 189 | |
| G.W.(kg)(Wooden Packing) | 78 | 86 | 93 | 146 | 158 | 184 | 200 | 213 | |
| Installation Method | Tower | ||||||||
| Specification | |||||||||
| Model HDSX | 40KVA | 50KVA | 80KVA | 100KVA | 125KVA | 150KVA | 200KVA | ||
| Rated Power | 32KW | 40KW | 64KW | 80KW | 100KW | 120KW | 160KW | ||
| Peak Power(20ms) | 96KW | 120KW | 192KW | 240KW | 300KW | 360KW | 480KW | ||
| Starter Motor | 15HP | 20HP | 30HP | 40HP | 50HP | 60HP | 80HP | ||
| Battery Voltage | 192/384VDC | 384VDC | |||||||
| Size(L*W*Hmm) | 720*575*1275 | 875*720*1380 | 1123*900*1605 | ||||||
| Packing Size(L*W*Hmm) | 785*640*1400 | 980*825*1560 | 1185*960*1750 | ||||||
| N.W.(kg) | 287 | 307 | 355 | 512 | 552 | 612 | 705 | ||
| G.W.(kg)(Wooden Packing) | 320 | 340 | 388 | 552 | 592 | 652 | 755 | ||
| Installation Method | Tower | ||||||||
| Parameter | |||||||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | |||||||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||||
| AC Input Frequency Range | 45Hz-65Hz | ||||||||
| Max AC charging current | 20A/10A/5A | 20A/10A/5A | 25A/15A/10A | 25A/15A/10A | 30A/20A/10A | 30A/20A/10A | 45A/30A/15A | 30A/15A | |
| 40A/20A | 45A/25A | 30A | 45A | 45A | 45A | 45A | |||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||||
| Phase | 3/N/PE | ||||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||||
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||||
| Output waveform distortion | Linear load≤3% | ||||||||
| Efficiency(AC Mode) | >99% | ||||||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||||||
| No load loss(Battery Mode) | ≤1% rated power | ||||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||||
| Phase | 3/N/PE | ||||||||
| Battery type (Optional) |
U0: Gel U.S.A | Charge Voltage:14V;Float Voltage:13.7V(Single battery voltage) | |||||||
| U1: A.G.M.1 | Charge Voltage:14.1V;Float Voltage:13.4V(Single battery voltage) | ||||||||
| U2: A.G.M.2 | Charge Voltage:14.6V;Float Voltage:13.7V(Single battery voltage) | ||||||||
| U3: Sealed lead Acid | Charge Voltage:14.4V;Float Voltage:13.6V(Single battery voltage) | ||||||||
| U4: Gel European | Charge Voltage:14.4V;Float Voltage:13.8V(Single battery voltage) | ||||||||
| U5: Open lead Acid | Charge Voltage:14.8V;Float Voltage:13.5V(Single battery voltage) | ||||||||
| U6: Calcuim(open) | Charge Voltage:15.1V;Float Voltage:13.6V(Single battery voltage) | ||||||||
| U7: Sulphation cycle | 15.5V for 4hrs | ||||||||
| customize battery | Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements. |
||||||||
| Protection | Battery undervoltage alarm | 11V(Single battery voltage) | |||||||
| Battery undervoltage protection | 10.5V(Single battery voltage) | ||||||||
| Battery overvoltage alarm | 15V(Single battery voltage) | ||||||||
| Battery overvoltage protection | 17V(Single battery voltage) | ||||||||
| Battery overvoltage recovery voltage | 14.5V(Single battery voltage) | ||||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||
| Temperature protection | >90°C(Shut down output) | ||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||||
| Transfer Time | ≤4ms | ||||||||
| Display | LCD | ||||||||
| Thermal method | Cooling fan in intelligent control | ||||||||
| Communication(Optional) | RS232/RS485/APP(WIFI/GPRS) | ||||||||
| Environment | Operating temperature | -10℃~40℃ | |||||||
| Storage temperature | -15℃~60℃ | ||||||||
| Noise | 2000m(More than derating) | ||||||||
| Elevation | ≤65dB | ||||||||
| Humidity | 0%~95% ,No condensation | ||||||||
| Warranty | 1 year | ||||||||
| Note: All specifications are subject to charge without prior notice | |||||||||

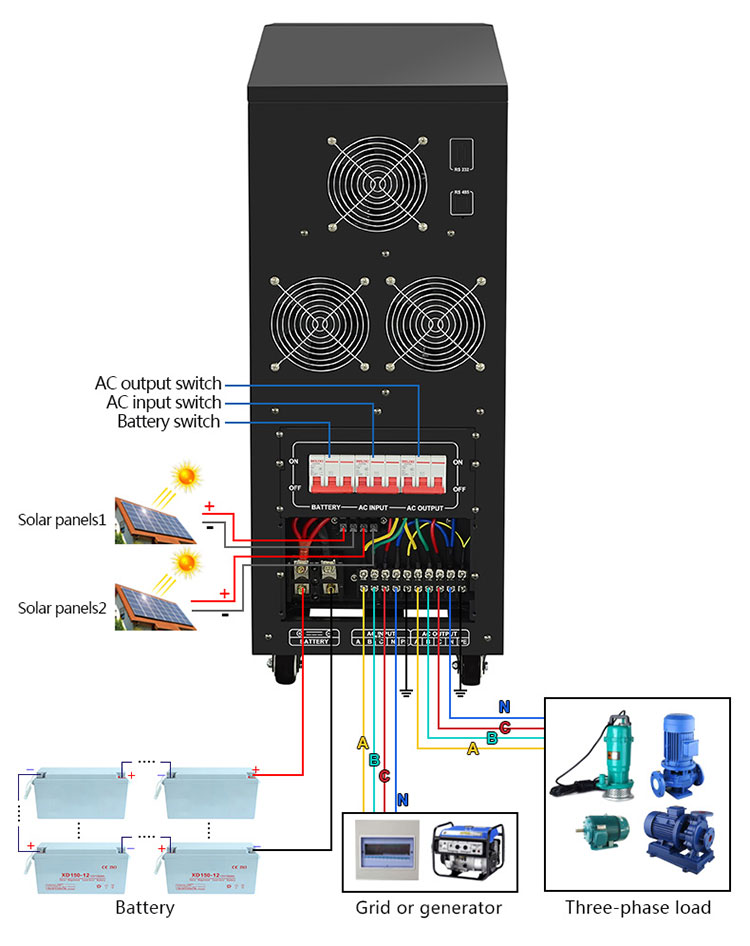

Contact us to get 10kva~200kva solar inverters' wiring diagram
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Package

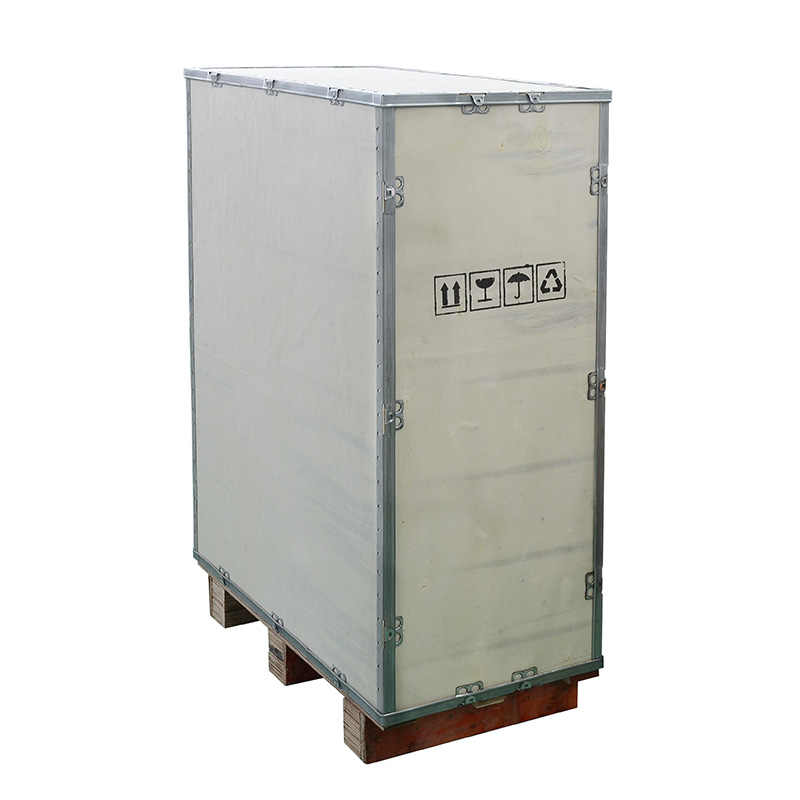

Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
 |
|
 |
 |
 |
 |
| Guangdong Xindun Power Technology Co.,Ltd | |
|
Factory Location |
Foshan,Guangdong,China |
| Industry Experience |
15-year manufacturer, 17-year trading, 11-year alibaba gold supplier |
|
Product Range |
solar inverter, hybrid inverter, ups, solar charge controller, solar generator, solar power system, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 7000 Square Meters, 100+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO9001:2015, CE, IEC, TUV etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverter, solar controller and solar energy system solution.
Q2: Are you inverter pure sine wave output?
A: Yes, all of our inverter are pure sine wave output.
Q3: What kind of output you can do?
A: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
Q5: How long is your factory?
It's over 10 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.
Q6: What' s the difference between low frequency and high frequency inverter?
A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
Q9: What to do if the product is broken?
A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
