Model
|
NE-700/700PRO
|
NE-700PRO
|
NE-1000
NE-1000EX
|
NE-800EX
|
NE-1200
|
NE-2400
|
RESS-5000B
|
||||||||||
|
Output Power
|
700W
|
1000W
|
1200W
|
2400W
|
5000W
|
||||||||||||
|
Capacity
|
512Wh
|
720WH
|
768Wh
|
768Wh
|
922Wh
|
1228Wh
|
1536Wh
|
2304Wh
|
5120Wh
|
||||||||
|
Battery Type
|
LiFePO4
|
NCM
|
LiFePO4
|
LiFePO
|
LiFePO
|
||||||||||||
|
Input
|
AC,Solar,Car Charger
|
AC,Solar
|
|||||||||||||||
|
Output
|
AC , Cigar lighter,
USB-A , Type-C , DC 5521
|
AC
Car charging
|
|||||||||||||||
|
Dimension (L*W*H)
|
294*185*236mm
|
285*250*259mm
|
403*223*298mm
|
455*295*346mm
|
551*342*674mm
|
||||||||||||
|
Weight
|
≤7.5KG
|
≤7.7KG
|
8KG
|
18KG
|
28KG
|
70KG
|
|||||||||||
|
Protection
|
The Built-In BMS Has Multi-Safeguards
|
||||||||||||||||
|
Certification
|
CE/FCC/PSE/RoHS/UKCA/UL/MSDS/UN38.3
|
||||||||||||||||
|
Items
|

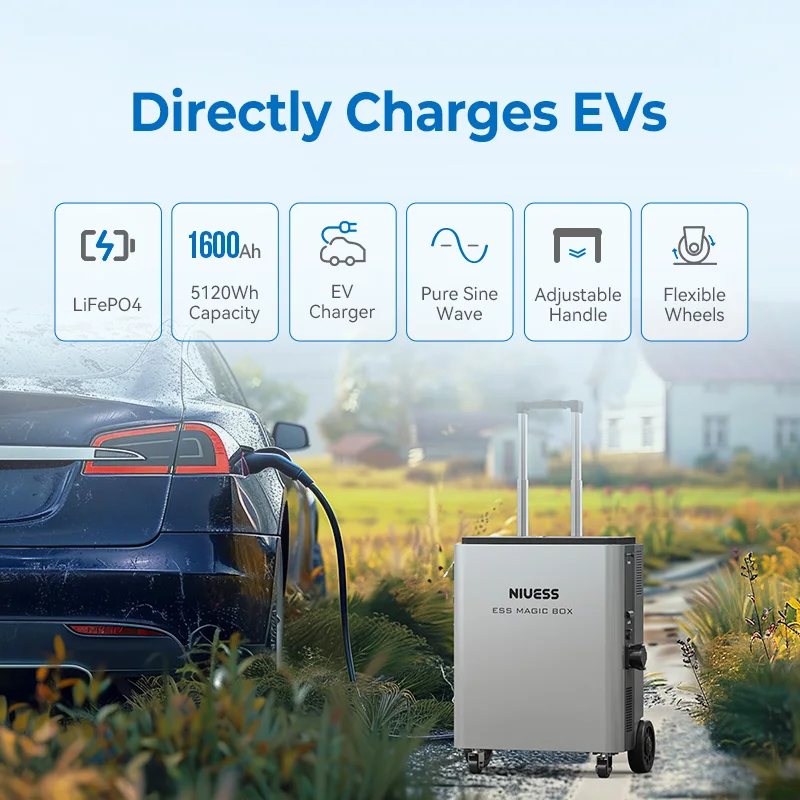

NE-5000US
|
NE-5000EU
|
||
|
General Specs
|
Net Weight
|
75±3Kg
|
||
|

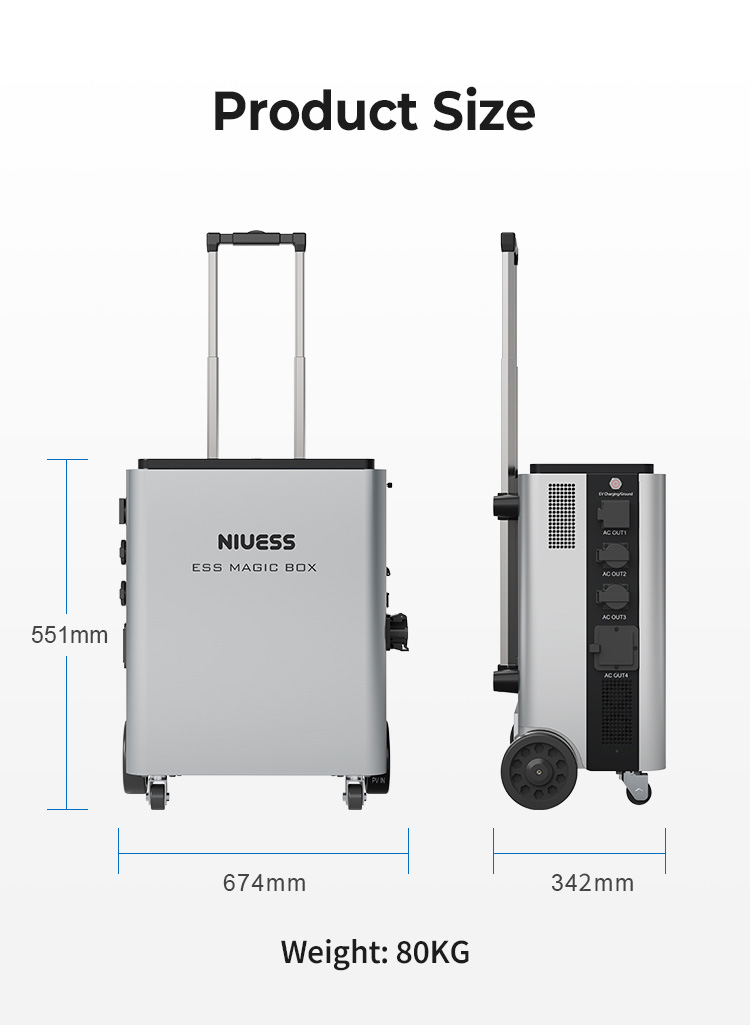

Size
|
551*342*674 (mm)
|
|||
|
Capacity
|
100Ah/51.2V 5120Wh
|
|||
|
Certificates & Test Reports
|
CE/FCC/PSE/RoHS/UKCA/UL 2743
|
|||
|
Input
|

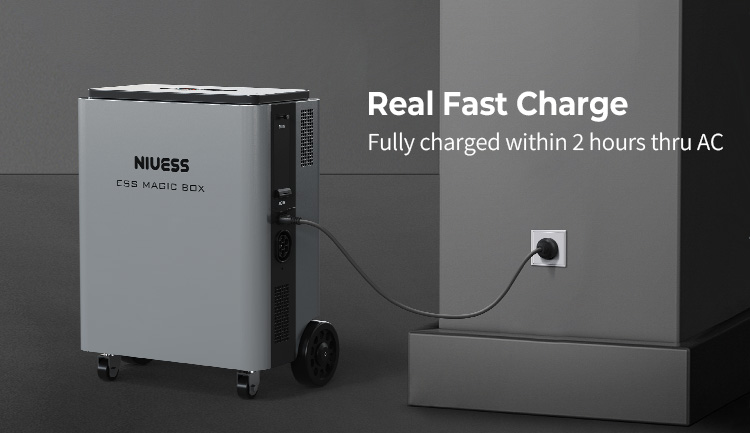

AC Input Power
|
1680w/120v*14A;
|
3450W/230V*15A
|
|
|
2160W/240V*9A;
|
||||
|
PV Input Power(Max.)
|
3000W
|
|||
|
MPPT Voltage Range
|
30V-150V
|
|||
|
PV Input Current(Max.)
|
30A
|
|||
|

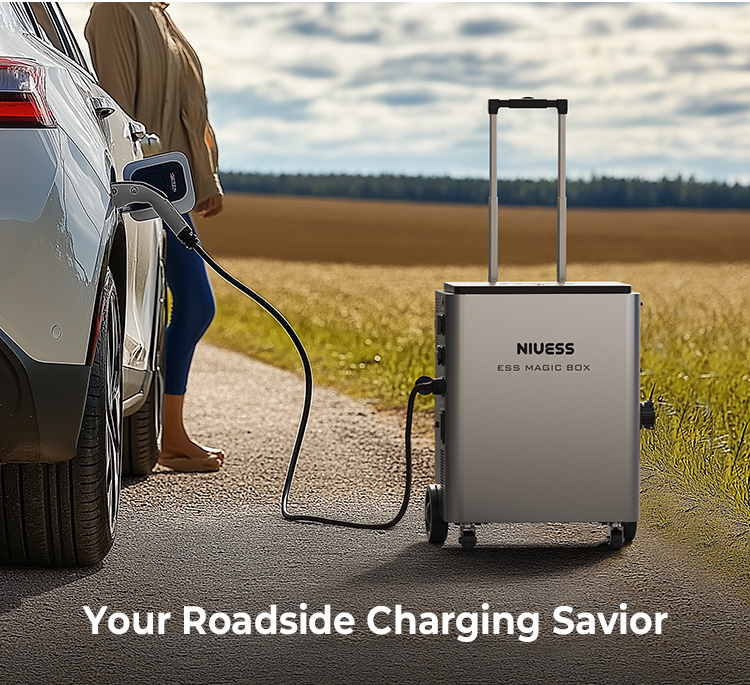

EV Input Power(Max.)
|
3000W(Single Phase)
|
5000W
|
||
|
5000W(Split Phase)
|
||||
|
Total Input Power
|
AC Input Power 5000W(Max.);
DC Input Power 3000W(Max.);
Total:8000W(Max.)
|
|||
|
Output
|

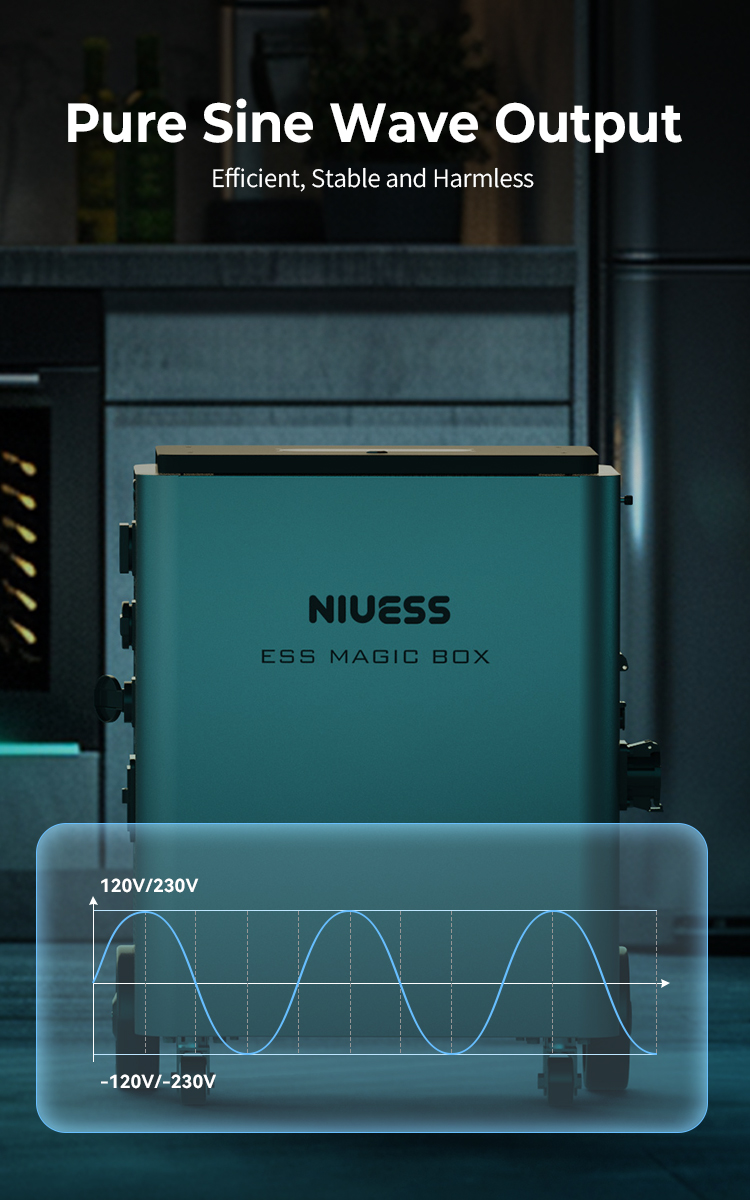

Output Voltage
|
120V/240V,50Hz/60Hz
|
220-240V,50Hz/60Hz
|
|
|
AC Output Power
|
3000W(Single Phase)
|
5000W
|
||
|
5000W(Split Phase)
|
||||
|
Battery
|
Cycle Life(80%DOD)
|
3500 [email protected] @25°C
|
||
|
Continuous Charging Current
|
100A(1C)
|
|||
|
Continuous Discharging Current
|
100A(1C)
|
|||
|
Peak Discharge Current
|
300A(10s),SOC≥30%
|
|||
|
System
|

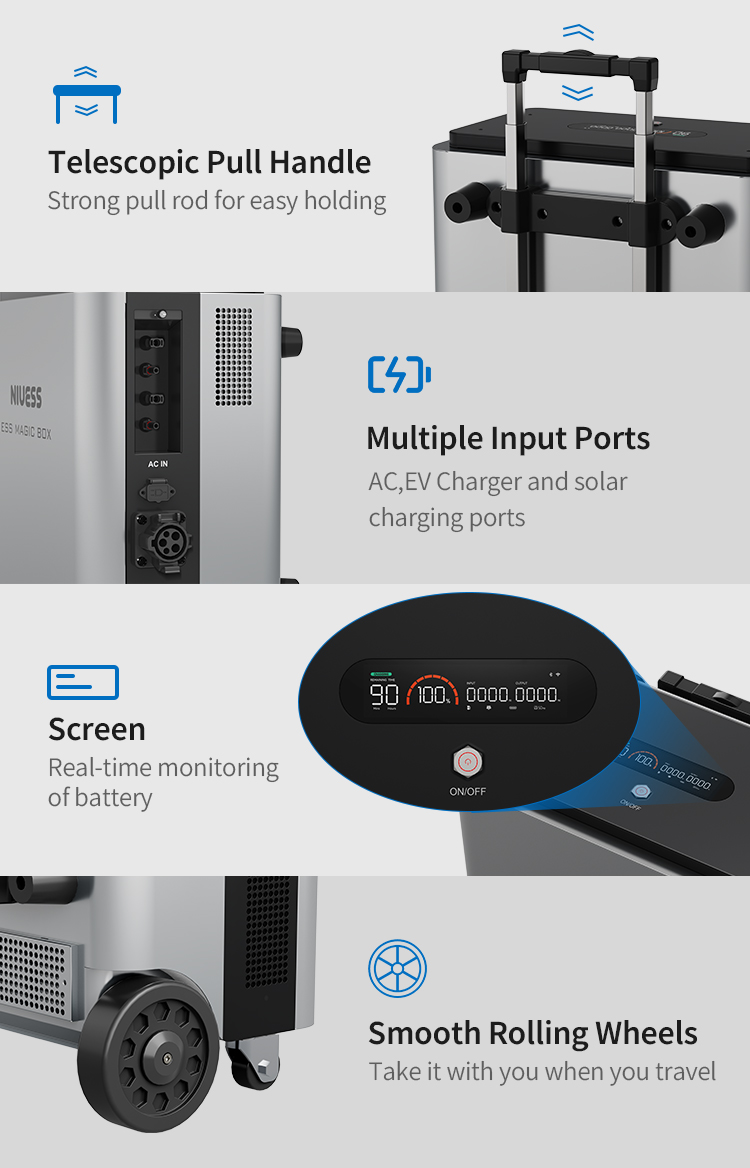

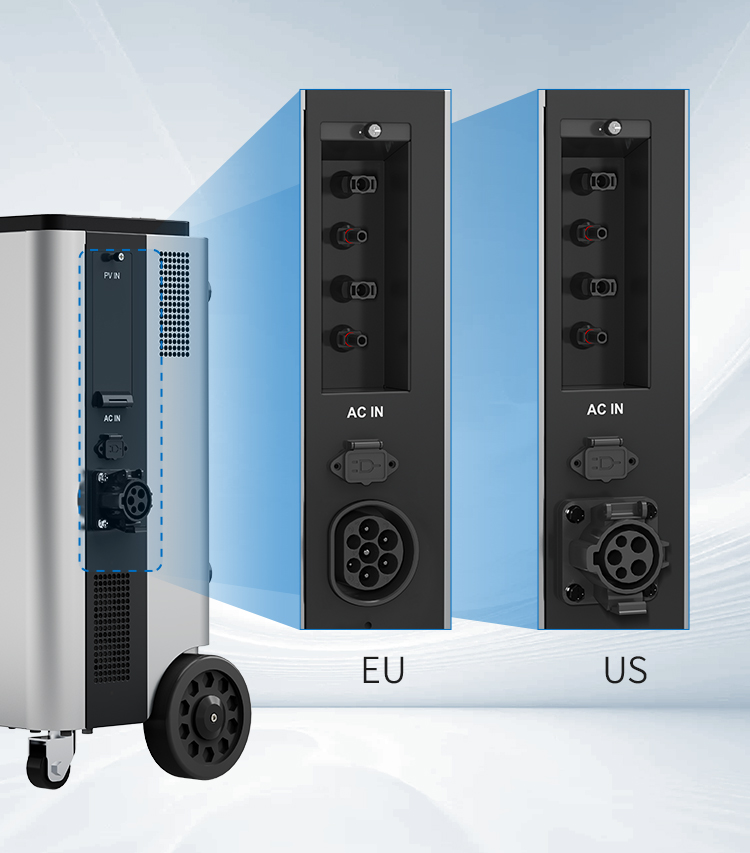

Inputs
|
AC Input*1 ,PV Inputs*2, EV Input*1
|
||
|

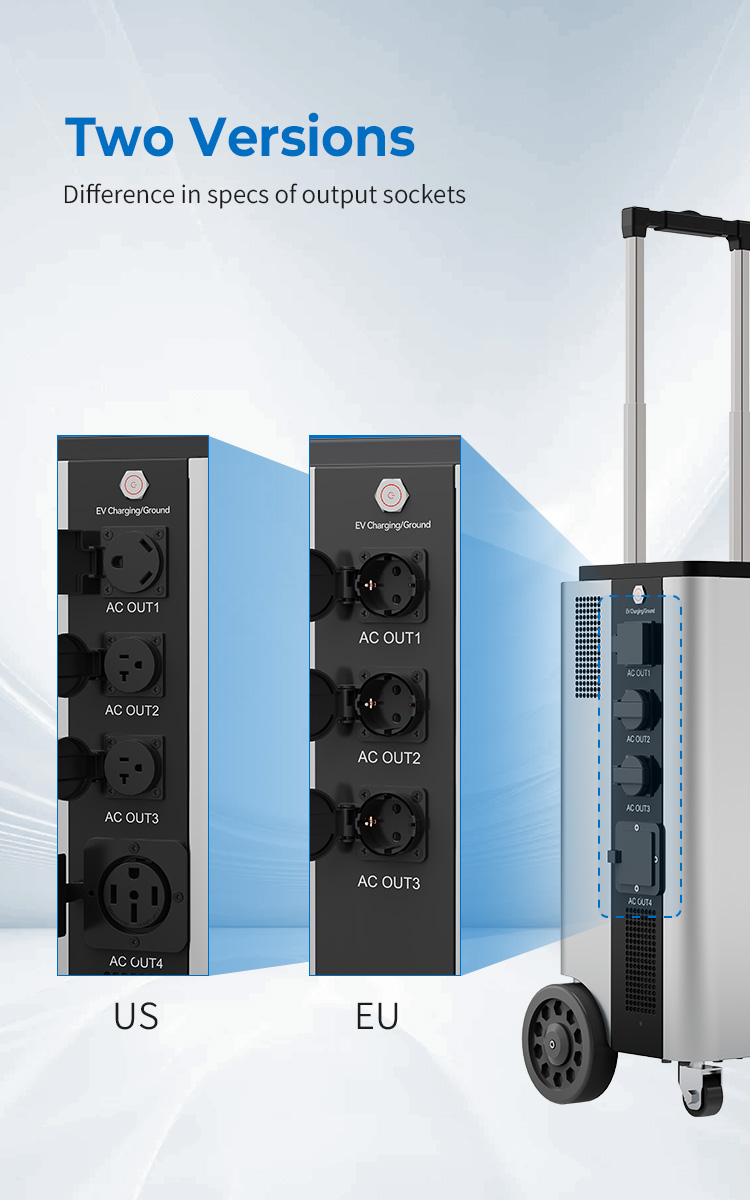

AC Outputs
|
NEMA TT-30*1;
NEMA 5-20*2;
NEMA 14-50 *1
|
Type F*3
|
||
|
UPS
|
Switches within 10ms
|
|||
