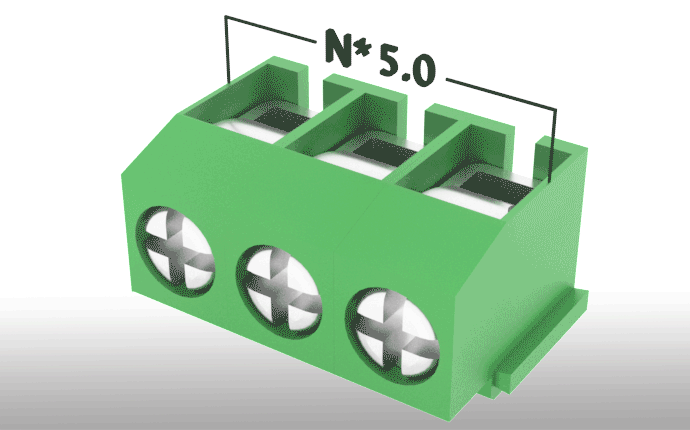

PCB Terminal Block KF126R-5.00mm 300V UL 10A UL 20mΩ Contact Resistance for Energy Storage and Battery Systems

ZHUZHOU CRRC TIMES ELECTRIC CO.,LTD.

China

Summary

KF126R-5.00mm PCB Terminal Block designed for energy storage and battery systems, features UL94V-0 PA66 housing, phosphor bronze or stainless steel reeds, rated voltage 300V UL / 250V IEC, 10A UL / 18A IEC current capacity, 20mΩ max contact resistance, ensures reliable connectivity with 20-14AWG (2.5mm2) wire range, ideal for high-demand industrial and renewable energy applications.More

Specifications

Rated voltage:

300V ULح 250V lEC

Rated current:

10A ULح 18A lEC

Contact resistance:

20mΩ(Max)

INQUIRY

Description Download

Rated voltage
300V UL丨 250V lEC
Rated current
10A UL丨 18A lEC
Contact resistance
20mΩ(Max)
Insulation resistance
500MΩDC500V
Withstanding voltage
AC2000V1Min
Wire range
20-14AWG2.5mm2

Temp.rang
LOW-40℃TOP+105℃
Max.soldering
+250℃，5sec
Torque
0.4N.m3.5Lb.in
Strip length
6-7mm
