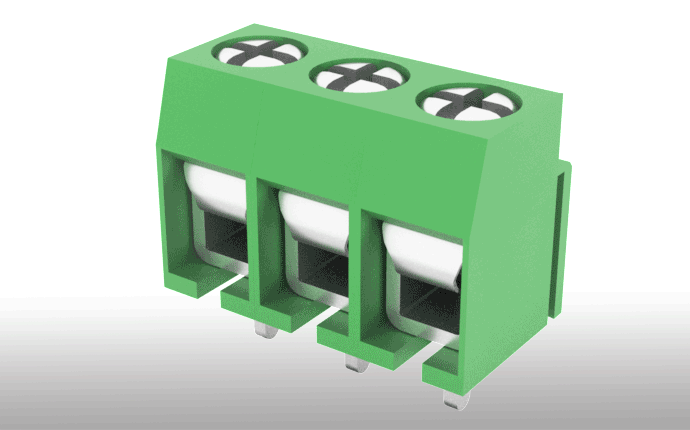

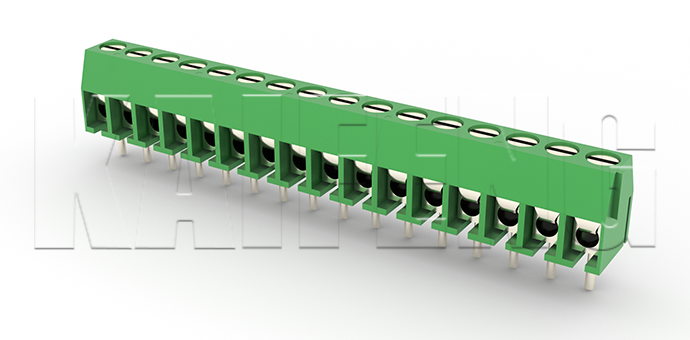

PCB Terminal Block KF126V-5.00mm High-Current 18A Rated 300V Insulation Resistance 20mΩ Phosphor Bronze Reed for Battery Energy Storage Systems

ZHUZHOU CRRC TIMES ELECTRIC CO.,LTD.

China

Summary

KF126V-5.00mm PCB Terminal Block designed for high-current applications up to 18A IEC, offers reliable connectivity in battery energy storage systems and renewable energy equipment. Featuring UL94V-0 rated PA66 housing, nickel-plated phosphor bronze reeds, and 300V insulation resistance, it ensures safe and durable power transmission in demanding environments.More

Specifications

Rated voltage:

300V UL| 250V lEC

Rated current:

10A UL| 18A lEC

Contact resistance:

20mΩ(Max)

INQUIRY

Description Download

Kaifeng Electron

Rated voltage
300V UL| 250V lEC
Rated current
10A UL| 18A lEC
Contact resistance
20mΩ(Max)
Insulation resistance
500MΩDC500V
Withstanding voltage
AC2000V1Min
Wire range
20-14AWG 2.5mm2

Temp.rang
LOW-40℃ TOP+105℃
Max.soldering
+250℃，5sec
Torque
0.4N.m 3.5Lb.in
Strip length
6-7mm

Weight
Xg
SPQ
12pcs
Packaging
Ziploc
MOQ
12pcs
Packaging
Box45cm*28cm*27cm
