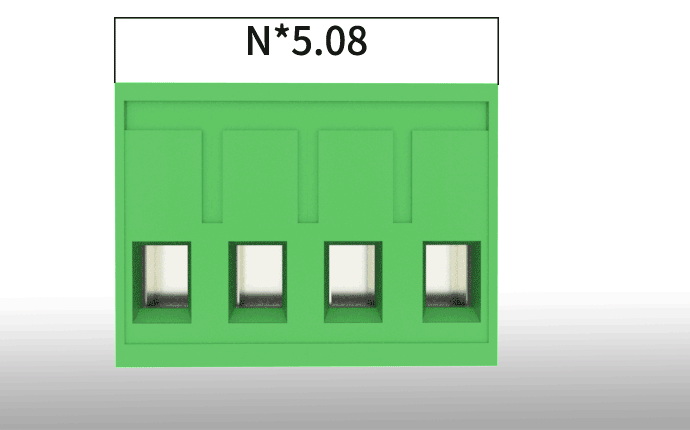

Pluggable Terminal Block KF2EDG-X-5.08mm is a high-performance electrical connector designed for demanding energy storage and battery systems. Featuring a robust PA66 housing with UL94V-0 flame rating, it ensures superior safety and durability in extreme environments. With a rated voltage of 300V UL / 320V IEC and rated current of 15A UL / 20A IEC, this terminal block delivers reliable power transmission. The phosphor bronze contacts provide low contact resistance (20mΩ) and high conductivity, while the galvanized M3.0 steel screws enhance corrosion resistance. Supporting wire ranges from 28-12AWG (2.5mm2), it is ideal for applications requiring stable connectivity in renewable energy storage, battery management systems, and industrial power control. Operating temperature from -40℃ to +105℃ ensures adaptability in diverse conditions, making it a trusted choice for modern energy infrastructure.More
