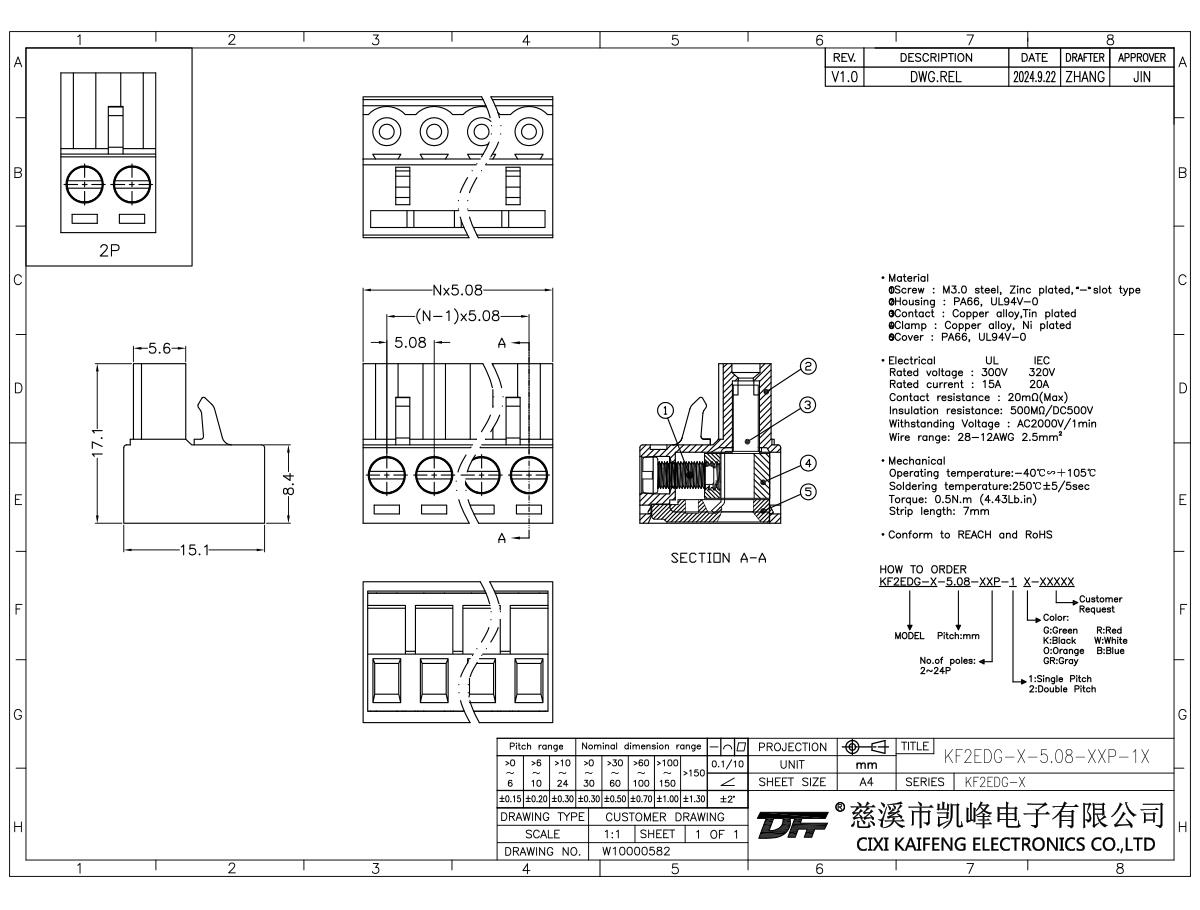

Pluggable Terminal Block KF2EDG-X-5.08mm is a high-performance electrical connector designed for demanding applications in energy storage and battery systems. Featuring a robust PA66 housing with UL94V-0 rating, it ensures superior fire resistance and long-term durability. The terminal block supports a wide wire range of 28-12AWG (2.5mm2), making it ideal for versatile wiring configurations. With a rated voltage of 300V UL / 320V IEC and current capacity of 15A UL / 20A IEC, it delivers reliable power transmission with minimal contact resistance (20mΩ). Its high-temperature tolerance (-40℃ to +105℃) and excellent insulation resistance (500MΩ @ DC500V) ensure stable performance in extreme environments. Widely used in renewable energy, battery management systems, and industrial power control units.More
