Place of Origin: Guangdong, China
Brand Name: BZ
Model Number: 804654
Type: Li-Ion
Nominal Voltage: 7.4V
Size: 8*46*56mm
Nominal Capacity: 2200mAh

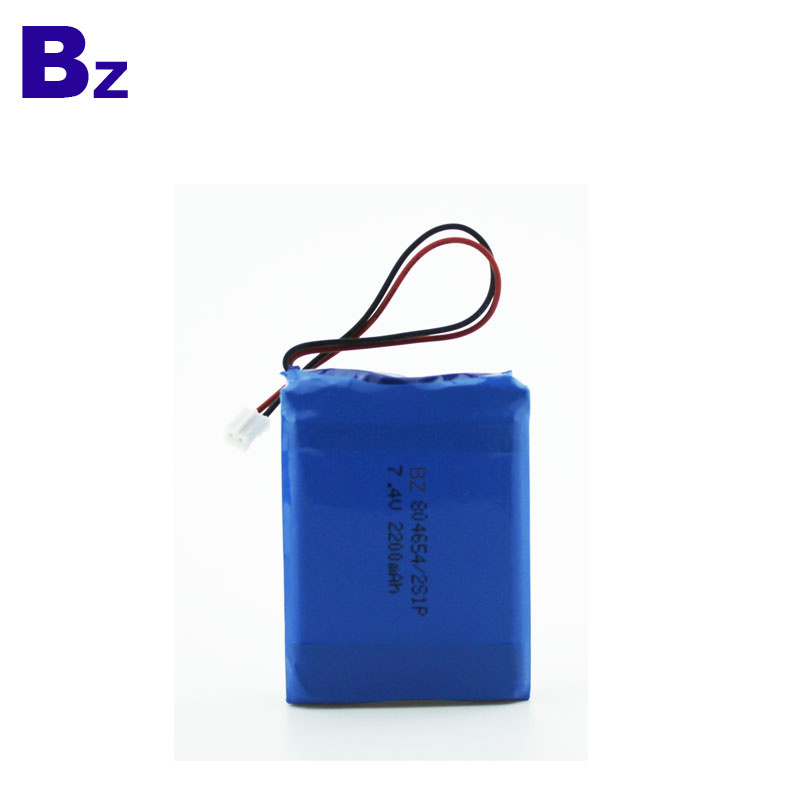

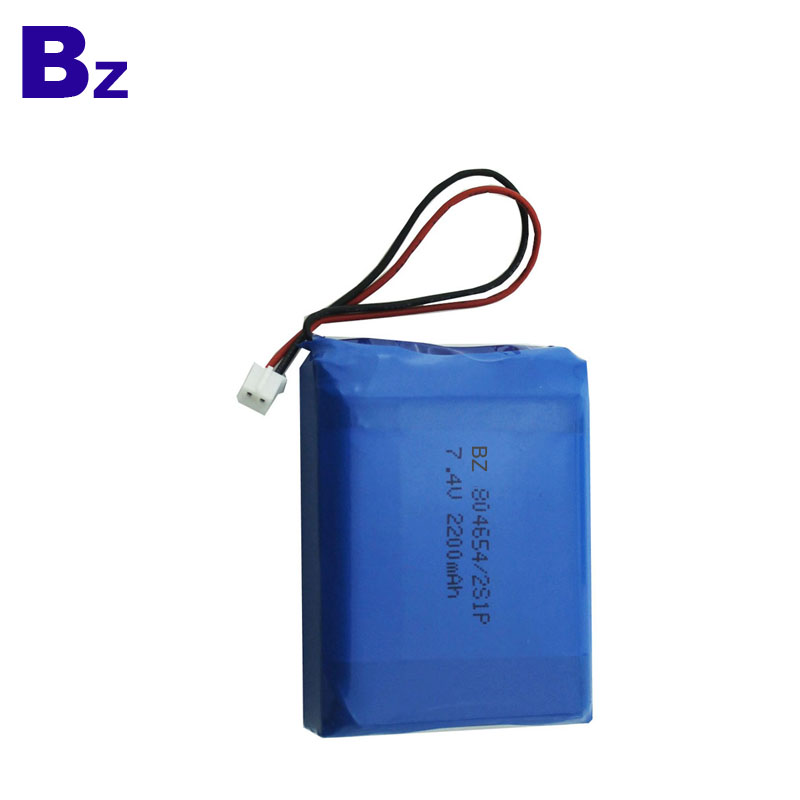

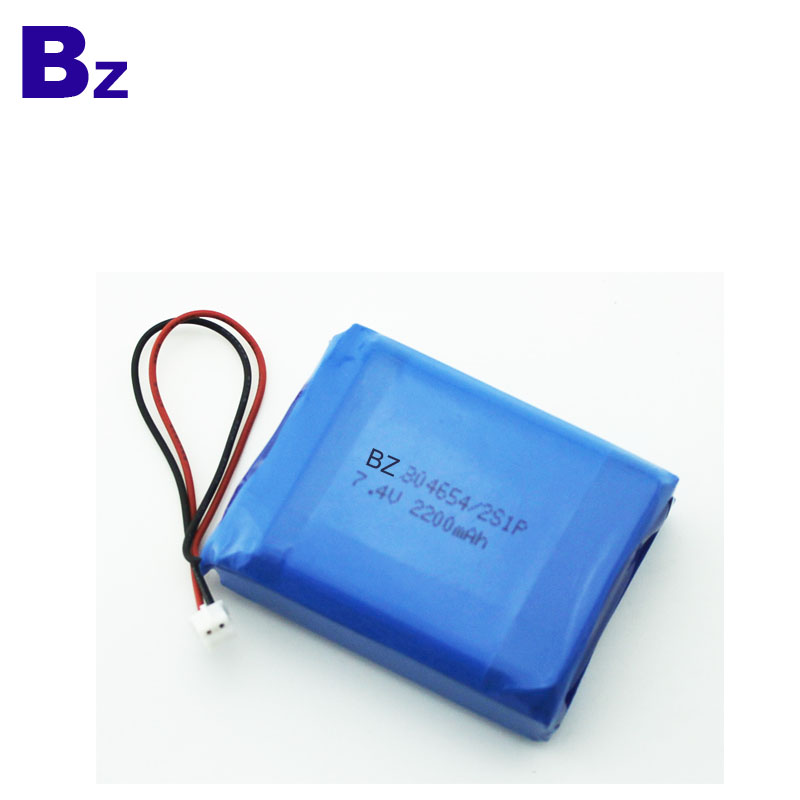

Product name: 804654-2S Li-ion battery
Warranty: 1 Year
Weight: 66g
Cycle life: 500 Times
Capacity: 2200mah
Voltage: 7.4V
Application: Facial Cleanser Cosmetic Instrumen
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Product Parameters
No. | Item | General Parameter | Remark | |
1 | Rated Capacity | Typical | 2250mAh | Standard discharge(0.2C C5A) after Standard charge |
Minimum | 2200mAh | |||
2 | Nominal Voltage | 7.4V | Mean Operation Voltage | |
3 | Voltage at end of | 6.0V | Discharge Cut-off Voltage | |
Discharge | ||||
4 | Charging Voltage | 8.4±0.03V | ||
5 | Internal Impedance | ≤30mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
Constant Voltage 8.4V | ||||
0.01 C5A cut-off | ||||
7 | Standard discharge | Constant current 0.2 C5A | ||
end voltage 6.0V | ||||
8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
Constant Voltage 8.4V | ||||
0.01 C5A cut-off | ||||
9 | Fast discharge | Constant current 0.5C5A | ||
end voltage 6.0V | ||||
10 | Maximum Continuous Charge Current | 1 C5A | ||
11 | Maximum Continuous Discharge Current | 1C5A | ||
12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
Bare Cell | ||||
Discharge: -20~60℃ | ||||
13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
less than 3 months: -20~40℃ | at the shipment state | |||
14 | Pack Dimension | High: max56mm Width: max46mm | Initial Dimension | |
