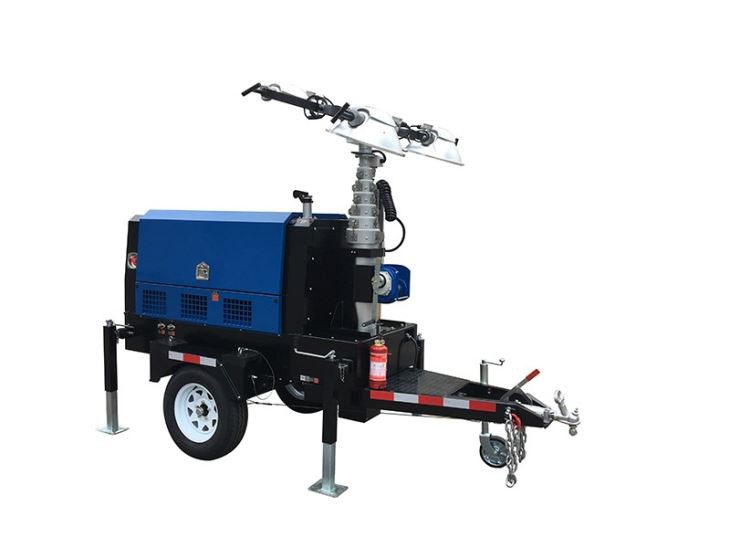

Portable Generator Lighting Tower  1. Clean, quiet and efficient Laidong engines? coupled with heavy duty meccalte brushless alternator. (Other power options are available on request). 2. Optimised cylinder head configuration for optimum fuel and oil consumption and? maximum efficiency.? 3. Cyclone style air cleaner and earth leakage protection. 4. Residual Current Device (RCD) protection, and RCDmain switch installed in generator? supply circuit with a test point. 5. Portable generator lighting tower are equipped with emergency stop button and fuel level meter,low fuel pressure and high water temperature are detected. |
| 8KW Portable Generator Lighting Tower? | |
| Model? | BLDL-8LD |
| Type? | 8KW Portable Generator Lighting Tower? |
| Light? | 4*1000W Metal Halide Light? |
| Total Lumens | 38400lumens |
| Illuminated Surface | 32000㎡ |
| Maximum Mast Height | 5.3meters |
| Mast Lifting System | Mechanical |
| Engine | |
| Engine | 3 cylinder, liquid cooled |
| RPM | 1500rpm |
| Operating time | 30hrs |
| Fuel consumption? | 1.57L/H |
| Fuel Tank | 44Liters |
| Noise Rating | 62bBA@7m |
| Alternator? | |
| Alternator Brand | DINGOL (Stamford Technology) |
| Alternator Model | DG164B |
| N°Poles | 4 |
| Excitation | Brushless Self-excited system |
| Insulaation Class | Class H |
| Protection Class | IP23 |
| Voltage Control | AVR |
| Control System? | |
| Controller Brand | Czech brand ComAp (Deepsea optional) |
| Model | MRS10 (DSE4520 optional) |
| Circuit braker | DELIXI (ABB/Schneider optional) |
| Alarms& Protection | Low fuel pressure alarms, high water temperature alarms, low fuel level meter |
| Equiped | Panel light, Emergency stop button, fuel level meter? |
| Trailer | |
| Design | Soundproof and waterproof design |
| Axle | Single Axle |
| Tyre | 2*185R14C? |
| Stabilisers | 4pcs of stabilisers |
| Dimension (working) | 3115*2760*5287mm? |
| Dimension (Transportation) | 3115*1380*2584mm |
| Net Weight | 920kgs |
