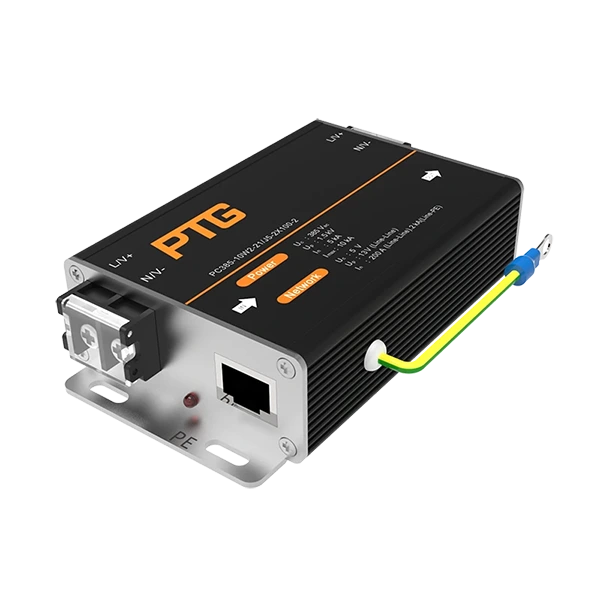

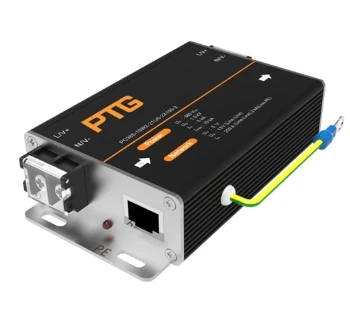

Product Description
The power network dual-purpose surge protector is designed in accordance with the requirements of IEC 61643-11 and IEC 61643-21, specifically for protecting network camera. It is widely used in safe cities, traffic roads system, etc.
Technical Parameters
| Part Name | PC 30-10W2-21/J5-2X100-2 | PC 385-10W2-21/J5-2X100-2 |
| Uc | 30Vac(power)，5Vdc(network) | 385Vac/255Vac(L-N/N-PE)(power)，5Vdc(network) |
| In?(8/20 μs) | 5kA(power)，1 kA(network) | 5kA(power)，1 kA(network) |
| Imax?(8/20 μs) | 10kA(power)，2kA(network) | 10kA(power)，2kA(network) |
| IL | 10A(power),0.1A(network) | 10A(power),0.1A(network) |
| Cut-off frequency | 250MHz | 250MHz |
| Max. transmission rate | 100Mbps | 100Mbps |
