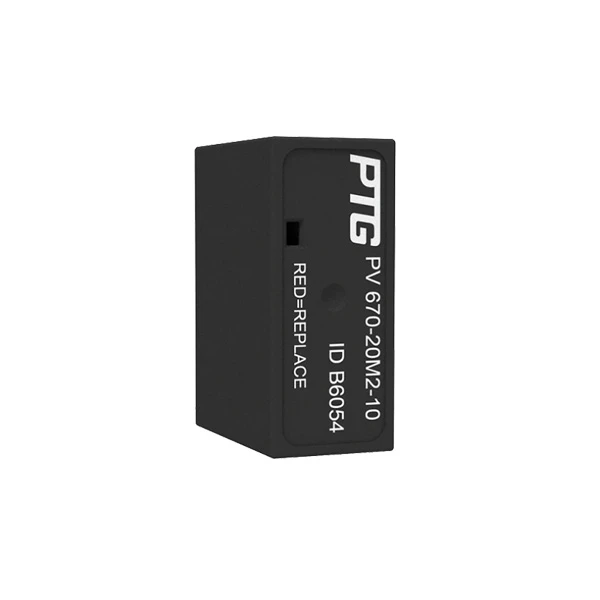

Product Description
PCB onboard T2 multi-purpose single-pole SPD has an extremely small size and supports various voltage levels of AC/DC. It is specifically designed for compact inverters, power supplies, PDUs, etc.
Technical Parameters
| PV...20M2-10 |
| Part Name | 500 | 670 | 900 |
| Ucpv | 385Vac/500Vdc | 510Vac/670vdc | 760Vac/900Vdc |
| In(8/20 μs) | 10kA | 10kA | 10kA |
| Imax(8/20 μs) | 20kA | 20kA | 20kA |
| Up | 1.5kV | 1.8kV | 2.8kV |
| Approvals | TUV,CE,UL |
| PV...40M2-M |
| Part Name | 600 | 750 | 900 | 1000 |
| Ucpv | 600Vdc | 750Vdc | 900Vdc | 1000Vdc |
| In(8/20 μs) | 20kA | 20kA | 20kA | 20kA |
| Imax(8/20 μs) | 40kA | 40kA | 40kA | 40kA |
| Up | 2.0kV | 2.5kV | 3.0kV | 3.3kV |
| Approvals | KEMA,CE,CB,UL |
| PV...40M2-10 |
| Part Name | 300 | 500 | 600 | 750 | 900 |
| Ucpv | 300Vdc | 500Vdc | 600Vdc | 750Vdc | 900Vdc |
| In(8/20 μs) | 20kA | 20kA | 20kA | 20kA | 20kA |
| Imax(8/20 μs) | 40kA | 40kA | 40kA | 40kA | 40kA |
| Up | 1.4kV | 1.75kV | 2.0kV | 2.5kV | 3.0kV |
| Approvals | TUV,CE,UL |
