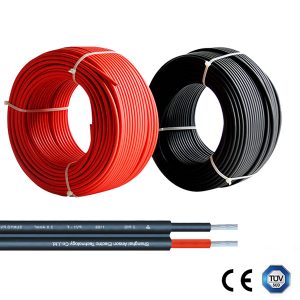

Specification PV1-F Twin Solar Cable
Conductor: Tinned fine Re copper strands, according to VDE0295/IEC60228.Class5
Insulation: Polyolefin Copolymer electron-beam cross-linked
Sheath Jacket: Polyolefin Copolymer electron-beam cross-linked
Nominal Voltage: Uo/U=600V/1000VAC,1000/1800VDC
Test?voltage: 6500V,50Hz,5Min
Temperature Rating: -40oC-90oC, More Than 25 Years (TUV)
Smoke Emission: IEC61034,EN 50268-2
Low Fire Load: DIN 51 900
Certification: TUV 2PFG 1169/08.2007 PV1-F
Dimensions NSC4 Wire
The size from 1.5mm2?to 120mm2
| Construction | Conductor Construction | Conductor | ?Outer | Resistance Max | Current Carring Capacity |
| n×mm2 | n×m | mm | mm | Ω/Km | A |
| 2×1.5 | 30×0.25 | 1.58 | 4.90 | 13.3 | 30 |
| 2×2.5 | 50×0.256 | 2.06 | 5.45 | 7.98 | 41 |
| 2×4.0 | 56×0.3 | 2.58 | 6.15 | 4.75 | 55 |
| 2×6 | 84×0.3 | 3.15 | 7.15 | 3.39 | 70 |
| 2×10 | 142×0.3 | 4.0 | 9.05 | 1.95 | 98 |
| 2×16 | 228×0.3 | 5.7 | 10.2 | 1.24 | 132 |
| 2×25 | 361×0.3 | 6.8 | 12.0 | 0.795 | 176 |
| 2×35 | 494×0.3 | 8.8 | 13.8 | 0.565 | 218 |
| 2×50 | 418×0.39 | 10.0 | 16.0 | 0.393 | 280 |
| 2×70 | 589×0.39 | 11.8 | 18.4 | 0.277 | 350 |
| 2×95 | 798×0.39 | 13.8 | 21.3 | 0.210 | 410 |
| 2×120 | 1007×0.39 | 15.6 | 21.6 | 0.164 | 480 |
