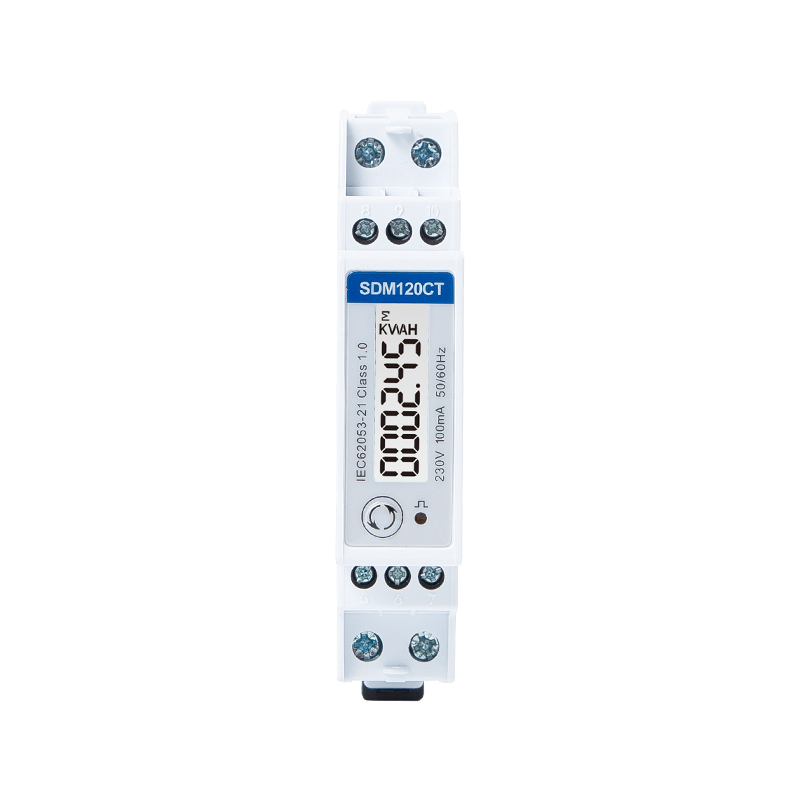

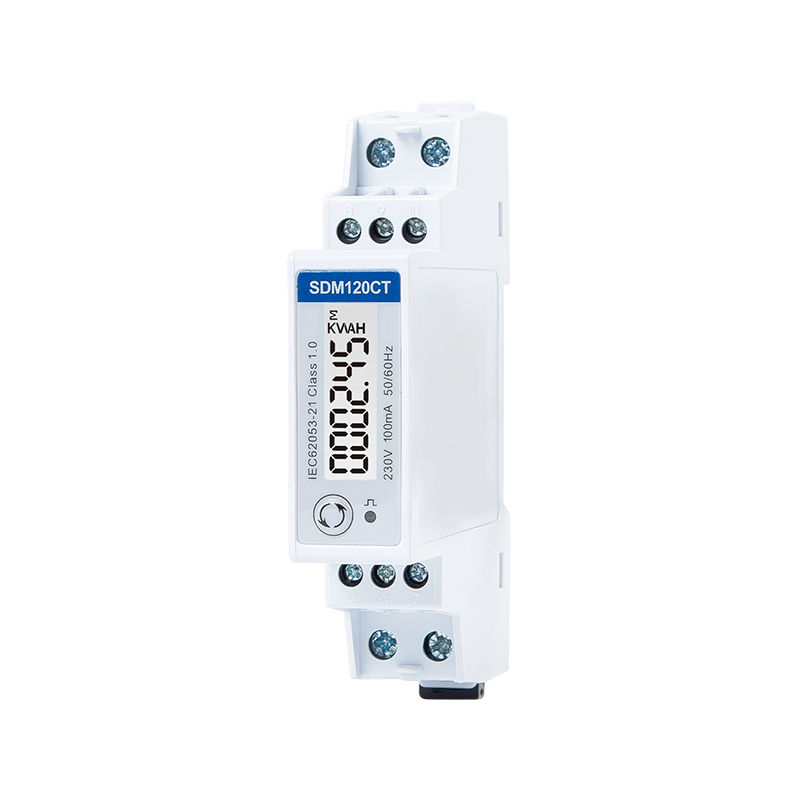

The SDM120CT-MV is a RS485 Modbus CT Type mV/mA input Single Phase Multi-function Energy Meter with RS485 Modbus/DLT645 output. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, popular with single phase PV solar power system. The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.?
Input & Output? | |||
Input | Current | CT?Primary | 1-9999A |
CT?Secondary | 100mV/ 100mA/?40mA | ||
Voltage | Rated Voltage (Un) | 230V | |
Operational Voltage | 80%~120% of Un | ||
Output | 2 Pulse Output + RS485 Modbus | ||
Modbus Communications | |
Interface Standard and Protocol | RS485 and MODBUS RTU |
Communication Address | 1~247 |
Transmission Distance | 1000m Maximum |
Baud Rate | 1200bps~9600bps |
Parity | None (default), Odd, Even |
Stop Bits | 1 or 2 |
Response Time | <100 mS |
