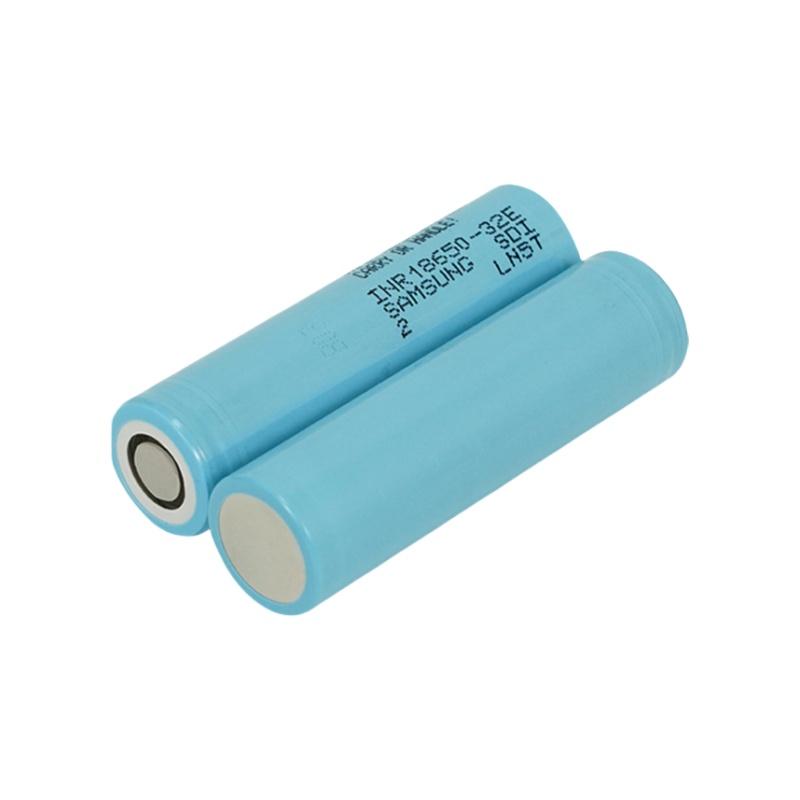

The Samsung INR18650 32E is a lithium-ion rechargeable cell with a with a capacity of 3200mAh and a nominal voltage of 3.65V. It is applied in e-bike, e-scooter, LED flashlight and etc. For more information on Samsung INR18650 32E, please contact us!
1. Standard Charge
This “Standard Charge” means charging the cell with charge current of 960mA and constant voltage 4.2V at 25°C, 0.02C cutoff.
2. Standard Discharge Capacity
The standard discharge capacity is the initial discharge capacity of the cell, which is measured with discharge current of 640mA with 2.50V cut-off at 25°C within 1 hour after the Standard charge.
Standard Discharge Capacity ≥ 3,100mAh
3. Rated Discharge Capacity
The rated discharge capacity is the initial discharge capacity of the cell, which is measured with discharge current of 3,200mA with 2.50V cut-off at 25°C within 1 hour after the Standard charge.
Rated Discharge Capacity ≥ 3,007mAh (97% of 3,100mAh)
4. Initial Internal Impedance
Initial internal impedance measured at AC 1kHz after Standard charge. Initial internal impedance ≤ 35mΩ
5. Temperature Dependence of Discharge Capacity
Discharge capacity comparison at each temperature, measured with discharge constant current 3,200mA and 2.50V cut-off with follow temperature after the Standard charging at 25°C.
The user must have an appropriate understanding of lithium-ion batteries before purchase. Use caution when working with and using lithium-ion batteries as they are very sensitive to charging characteristics and may explode, burn, or cause a fire if misused or mishandled. Always charge in or on a fireproof surface. Never leave batteries charging unattended. Buyer is responsible for any damage or injury caused by misuse or mishandling of lithium-ion batteries and chargers. No express or implied guarantee of compatibility with any device can be made. Charge only with a smart charger designed for this specific type of lithium-ion battery. Do not mix and match old and new, used and unused batteries.
