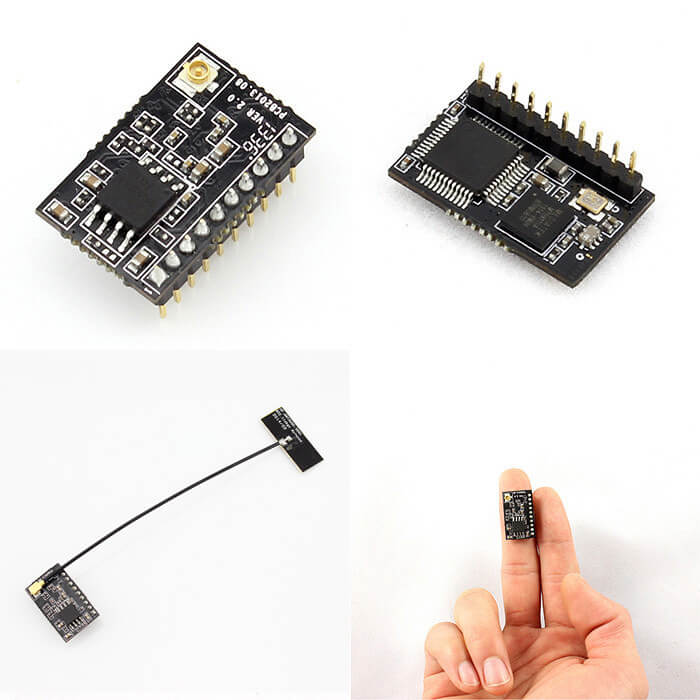

The Wireless WiFi Modules, used for data transparent transmission. USR-WIFI232-T wifi module can connect with serial device for data transmission. It can send data from UART to WIFI in TCP client, TCP server and UDP mode.
[email protected] GHz, support WEP, WPA/WPA2 security mode.
Self-developed MCU platform
The fully integrated serial to wifi function
Support multiple network protocols and WiFi connection configuration
Support work as STA/AP mode
Support SmartLink intelligent networking function (APP provided)
Support UsrLink function (fast set SSID)
Upgrade firmware via wifi network
Support external antenna (I-PEX connector)
Support multiple PWM signal output channel
Support AT+ command set configuration
Tiny Size: 22mm x 13.5mm x 6mm
Single +3.3V power supply
Support low power real-time operating system and driver
CE/FCC/RoHS certificated

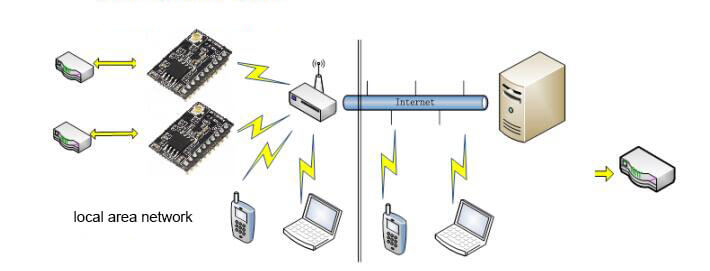

WiFi remote control and monitoring, TCP/IP and WiFi coprocessor
WiFi remote control toy such as aircraft and cars
WiFi Internet radio, camera, digital photo frame
Medical instrument, data acquisition, handheld device
WiFi fatness testing machine, smart card terminal, Smart Home
Instrument, equipment parameter monitoring, wireless POS machine
Modern agriculture, military field and other wireless related secondary development applications
Software Settings
Download settings software, search WiFi Modules in the LAN through the serial port server IP, name, MAC address, or the version number. Then set the parameters you need, otherwise keep the default.
Web-page Settings
1.Open your browser and inter the default IP address of the WiFi Modules.
2.Open the login page of Serial Server, Enter the user name and password (default admin).
3.After setting parameter, Click a?Savea? and a?Restarta?, then setting will take effect.
User can set parameter by module itself without going through another computer to configure. This setting method is used in the following situation: user have to configure IP address and destination IP address on site. AT command can meet the demand. After MCU connects serial server module by TTL (UART), MCU can configure setting by AT command.
Low power wifi modules are integrated 802.11b / g / n low-power embedded wifi modules.
It provides a solution to connect the physical device to wifi wireless network and transfer data by UART interface. It is widely used in those fields which need to transfer data with low flow and low frequency. e.g: smart home, smart electricity, medical monitoring, industrial control.
