Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to [email protected] - Our Facebook is：Shenpeng Pump |
■Product application
The computer CPU cooling
The LED radiator
Other cyclic refrigeration equipment
■Product information
Weight:0.14Kg
Protection level:IP55
Insulation level:E
Service life:20000 hours
Ambient temperature:-25 to 70℃
Medium temperature:0-70℃
Medium:Clear water
Using place:Indoor

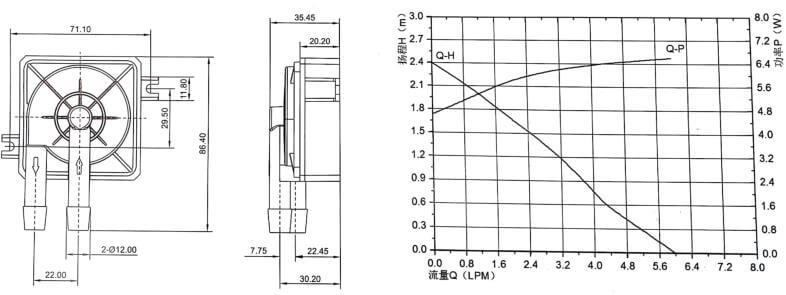

■ Specifications
Type | P6038 |
Rated Voltage | 12V |
Voltage Range | 8-20V |
Max Flow | 6L/min |
Max Lift | 2.7m |
Max Noise | 26dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0-70℃ |
Ambient Temperature | -25-70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water |
Protection Level | IP55 |
Using Place | Indoor / Outdoor |
Power Consumption | 7W |
Service Life | 20000 hours |
OD of inlet | ?11.0mm |
OD of Outlet | ?11.0mm |
Dimension | 86.4*61.4*36.2mm |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
Remarks | Not self-priming |
