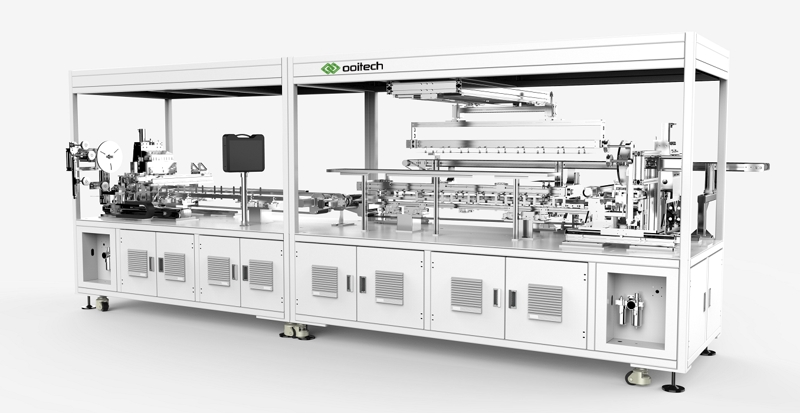

Shingled solar cell terminal head welding machine is an automatic equipment to do welding at both heads of solar module string cells with the ribbon.
The whole equipment includes: transfer unit, A fiber optic sensor detection and mechanical positioning unit, A ribbon process unit, A infrared welding system, cell string transfer unit, B fiber optic sensor detection and mechanical positioning unit, B ribbon Process unit, B infrared welding system, temperature control system, unloading mechanical arm, finished product box, etc.
Working principle: transfer the solar cell string to the conveyor belt, move to the A side positioning unit to position the solar string, after completion, A ribbon handling unit moves busbar to the positive lead of the cell string and fixes it, the infrared light welding system completes the welding; the transfer unit moves the cell string to B side, repeats the same action on the A side to weld the negative terminal of the cell string, after completion of the welding, the unloading mechanical arm will pick up the solar cell string and put it into the finished product box.
Space reserved for expansion: ports reserved for tabber stringer and string inspection and layup machine docking.
