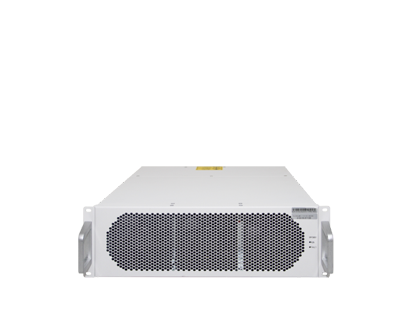

ACTIONPOWER's Smart Dynamic Reactive Power/Filter Compensation Device (SSCT) is a high-end, fully modular solution integrating active and passive components for seamless, blind-spot-free compensation. With fast response time (≤5ms) and rated capacity from 100-400kvar, it dynamically adjusts reactive power, filters harmonics, and corrects three-phase imbalance. Designed for industrial sectors like manufacturing, petrochemicals, and metallurgy, as well as commercial buildings and hospitals, the SSCT ensures efficient power factor correction and harmonic suppression. Featuring low power loss (active <3%, passive <1%), customizable IP30+ protection, and smart control via Modbus protocol, this device enhances grid stability and energy efficiency in demanding environments.More
Specifications
Rated capacity:
Complete machine:100~400kvar
Response time:
≤5ms
IP grade:
IP30
higher IP grades for the complete machine can be customized
Compensation functionHarmonics, reactive power, three-phase imbalance; priority selectable and settable
Control accuracyNot less than 2.5%
CT scan requirements5A, using grid side current for sampling.
TSC moduleReactor 7% or 14%, voltage levels at 480V or 525V, control signal for 12 channels (12V or nodes), both group compensation and individual compensation can be customized.
ProtectionMultiple protection functions such as overcurrent, overheating, over and under voltage protection.
IP gradeIP30; higher IP grades for the complete machine can be customized.
