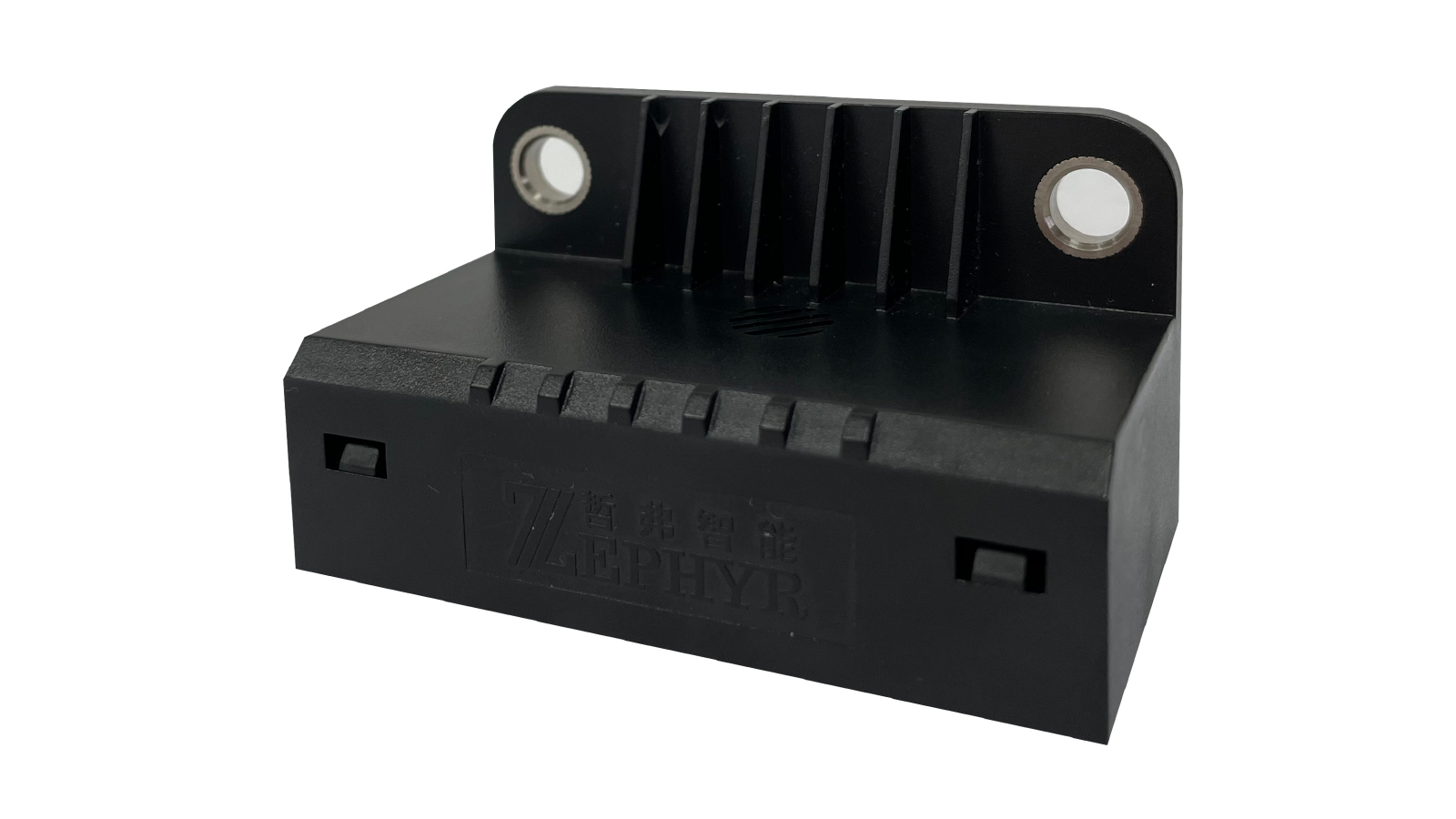

Smoke Transducer High Reliability Thermal Runaway Detection Full-Cycle Monitoring for EV Energy Storage Systems

Smoke Transducer High Reliability Thermal Runaway Detection Full-Cycle Monitoring for EV Energy Storage Systems

Zephyr 2015 China
  • Smoke Transducer High Reliability Thermal Runaway Detection Full-Cycle Monitoring for EV Energy Storage Systems
  • Smoke Transducer High Reliability Thermal Runaway Detection Full-Cycle Monitoring for EV Energy Storage Systems
Summary
The Smoke Transducer is a high-reliability, high-safety sensor designed for thermal runaway detection in EV and energy storage systems. Featuring ultra-low power consumption, full-cycle monitoring, and multi-parameter detection (including optional temperature alarm), it ensures vehicle and system safety with ASIL-B functional compliance. Ideal for demanding新能源 applications, it supports fault diagnosis, online upgrades, and offers a service life of up to 10 years.More
  • Smoke Transducer High Reliability Thermal Runaway Detection Full-Cycle Monitoring for EV Energy Storage Systems

smoke transducer

Product Features

  • High reliability: the whole vehicle level design, thermal runaway signal residual detection.
  • High security: the core chip conforms to ASIL-B functional safety level.
  • Portability: AutoSAR software architecture design is adopted.
  • Full-cycle monitoring: ultra-low power consumption design, to meet the full-cycle safety monitoring of vehicles.
  • Multi-parameter detection: optional temperature acquisition and temperature alarm functions.
  • Diagnosis and upgrade: Fault diagnosis and online upgrade based on UDS general protocol.
  • Long life: at least 10 years life.

Product technical parameters

smoke transducer
No.
Name
Technical parameters
1
Working voltage
DC 6~18V
2
Overvoltage protection
DC 24(1min@25℃)V
3
Reverse voltage protection
DC-20 (1 min @ 25 C) V
4
Average working current
<25mA
5
Low power mode current
<0.2(echo 12.2s)mA
6
Working temperature
-40 C ~+85 C
7
Storage temperature
-40 C ~+85 C
8
Altitude
-150~5000m
9
Measurement standard
0 ~ 10000 ug/m
10
Measurement accuracy
15%@FSR
11
Resolution
1ug/m
12
Response time
≤1s
13
Wake-up smell value
5000 (configurable) ug/m
14
Temperature sampling range
-40 C ~+125 C
15
Temperature sampling accuracy
±2°C
16
Overall dimensions
(lw * h) l66.5 * w37 * h36.3mm.
