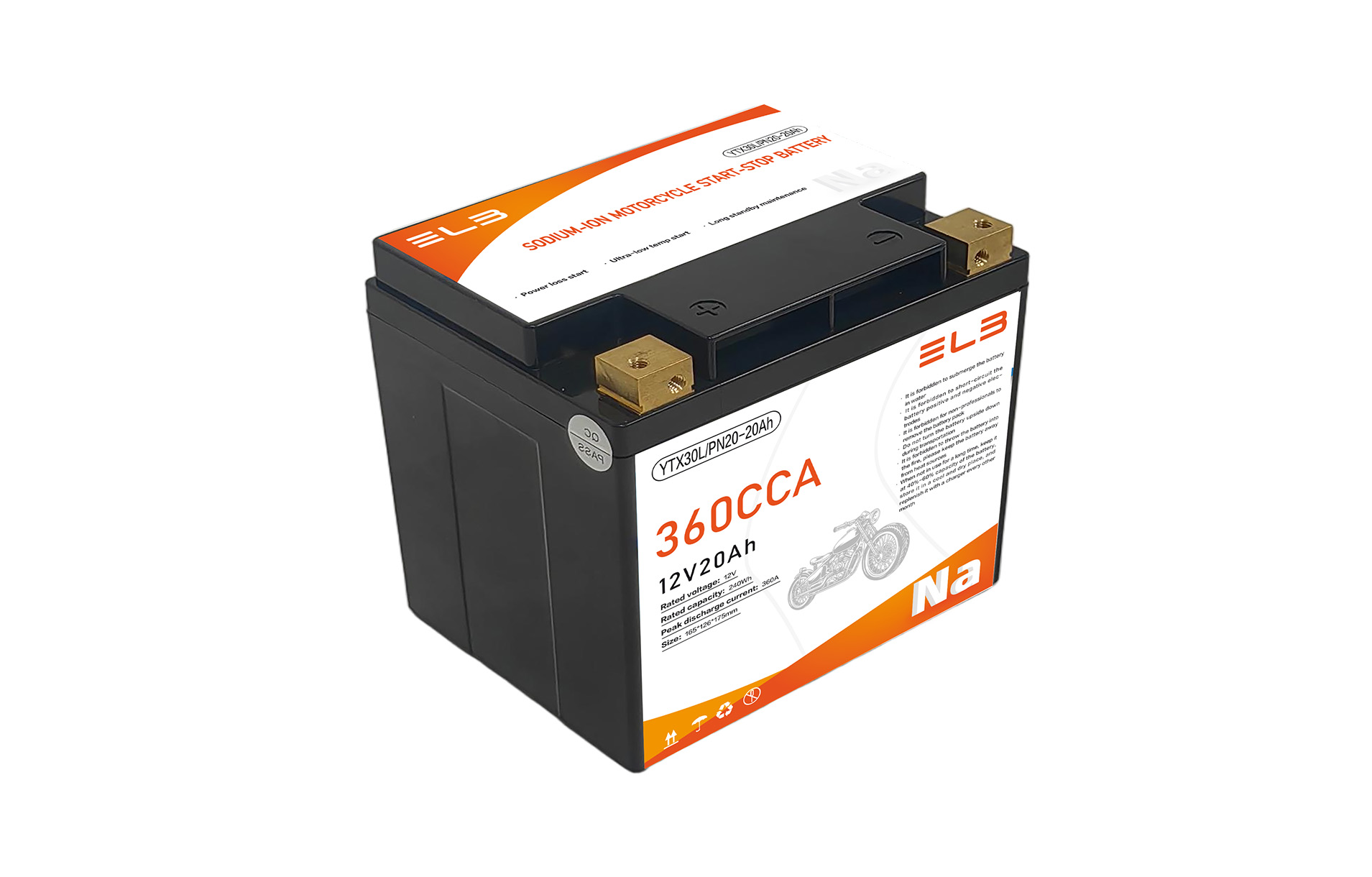

| Model | YTX30L/PN20-20Ah |
| Nominal capacity | 20.0Ah |
| Nominal voltage | 12.0V |
| Nominal energy | 240Wh |
| Peak discharge?current/ Starting Current | 360A, 3Sec / 360CCA |
| Discharge cut-off voltage | 8V |
| Standard charge voltage | 15.8V |
| Allowed Max. charge voltage | 15.8V |
| Standard charge current | 4A |
| Recommended charge current | ≤20A |
| Allowed Max. charge current | 20A |
| Standard discharge current | 10A |
| Recommended discharge current | ≤60A |
| Maximum continuous discharge current | 60A |
| Internal Resistance | ≤9mΩ |
| Weight | Approx. 3.9kg |
| Dimension | L165*W126*H175mm |
| Ex-factory capacity | Approx.80% SOC |
| Cycle life | ≥5000?@?25℃?0.5C?DOD100% |
| Protection Function | Overvoltage , overcurrent , short circuit,?high and low temperature protection?and balance function |
| Discharge temperature | -40℃~70℃ |
| Charge?temperature | 0℃~70℃ |
| Storage?temperature | ≤1Month: 0～+30℃、5～75%RH ≤6Month: 10～+25℃、5～75%RH Recommend environment: 15～+25℃、5～75%RH |
