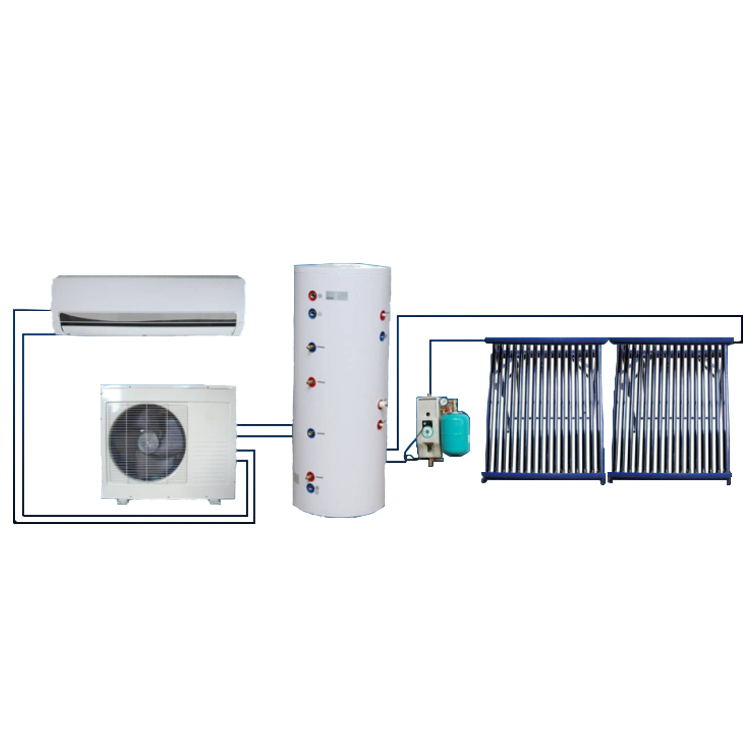

Solar Air Conditioner 12000Btu to 48000Btu High Efficiency Energy Saving Hybrid System with 100L to 500L Hot Water Tank for Residential and Commercial Use

Solar Air Conditioner 12000Btu to 48000Btu High Efficiency Energy Saving Hybrid System with 100L to 500L Hot Water Tank for Residential and Commercial Use

  • Solar Air Conditioner 12000Btu to 48000Btu High Efficiency Energy Saving Hybrid System with 100L to 500L Hot Water Tank for Residential and Commercial Use
  • Solar Air Conditioner 12000Btu to 48000Btu High Efficiency Energy Saving Hybrid System with 100L to 500L Hot Water Tank for Residential and Commercial Use
Summary
Trinty Solar Air Conditioner (12000Btu to 48000Btu) with 100L to 500L Hot Water Tank is a high-efficiency hybrid system combining solar energy and air-source heat pump technology. Offering 30-70% energy savings, it delivers reliable cooling and heating for residential and commercial use, along with year-round hot water supply. Designed for durability and performance, this eco-friendly system operates efficiently in extreme temperatures (-7°C to 53°C), features A+++ energy efficiency, and provides superior comfort with low-noise operation. Ideal for sustainable buildings, it integrates seamlessly into various environments while exceeding international energy standards.More
  • Solar Air Conditioner 12000Btu to 48000Btu High Efficiency Energy Saving Hybrid System with 100L to 500L Hot Water Tank for Residential and Commercial Use

1. High efficiently, 30-70% energy saving , comfortable and money saving, the SEER exceed to 6.5, all of the solar air conditioner is A++ or A+++.

2. Durable and long-lived, smooth running. Low-loaded operation of the compressor to extend its duration.

3.Healthy and comfortable, constant temperature and keeping air conditioner disease away.

4. Super luxurious appearance decorates your home. Indoor panel adopts aluminum alloy and wire drawing metal color board to make your house more sparkling.

5. Automatic open and close dustproof air outlet.

6. Easy installation, same as the traditional air conditioner.

7. With strong adaptability, our hybrid solar air conditioner can run at super low and high temperature from -7 to 53 centigrade.

8. Exceeding the national standards and applicable to all kinds of environment.

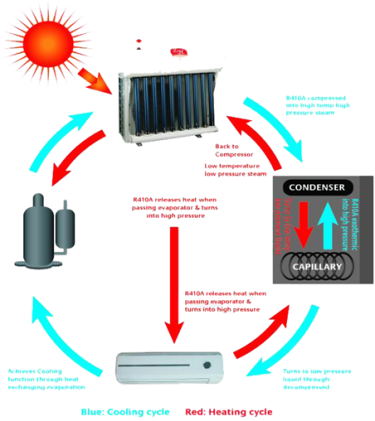

Working principle

solar air conditioner

Hybrid solar air conditioner

* When the power on, the compressor start working, it compress the refrigerant from low pressure to high pressure, low temperature to high temperature, then discharge to heat exchanger of the solar collector


* In sunshine time ,the vaccum tube can absorb the sunshine to heat the water of the water tank, then the hot water will translate the heating to refrigerant by the exchanger, then help the compressor heat the tempeature and increase the pressure of the refigerant again,

so it just need use the small compressor driver the system running, just use the less power to cool or heat the room,to save more energy.

Kinds of Solar Air Conditioner

1,Wall Mounted Type

2,Casstte Type

3,Floor Ceiling Type

4,DC Inverter Type

5,Duct Type

6,Trinty System(A/C with hot water)

Trinty system air con

Trinty System(A/C with hot water)
Main features
Combines solar air conditioner technology, air source heat pump
technology and pressured split solar heater technology into one
system, it supplies cooling and heating air in summer and winter and
hot water for all year long. It is energy-saving and eco-friendly

Capacity from 12000Btu to 48000Btu ,Water
tank from 100L to 500L

solar AC
