300MW-500MW Full Automatic Solar Panel Making Plant Solar Panel Making Machine Solar Module Manufacturing Machines

Many customers want to start?solar panel making plant, but they don’t know how to configure solar module manufacturing machines, so that the idea has never been realized.
So, What Machines are needed in?300MW-500MW Full Automatic Solar Panel Making Plant Solar Panel Making Machine Solar Module Manufacturing Machines?

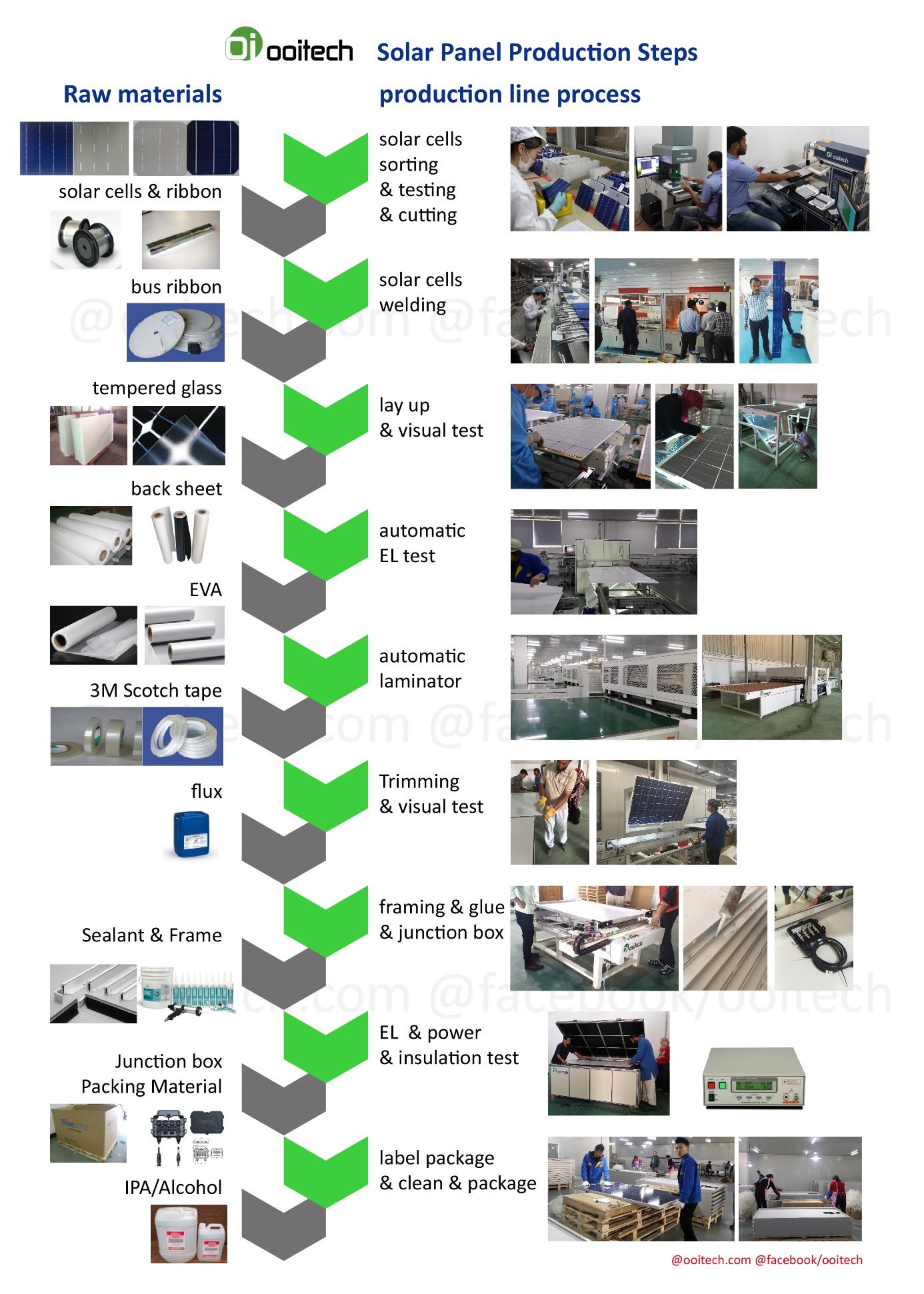

300MW-500MW Full Automatic Solar Panel Making Plant Solar Panel Making Machine Solar Module Manufacturing Machines Including the following products:

?·?Solar Cell Tester?and Sorter

?·?

Damage Free Solar Cell Laser Cutting Machine

?·?Solar Cell Tabber Stringer Machine

?·?Solar String Lay Up Machine

?·?Solar Panel?Bussing?Machine

?·?Solar Module EL Defect Tester?with Visual Inspecting Function

?·?Solar Laminator

?·?Solar Module Gluing & Framing Machine

?·?Solar Simulator

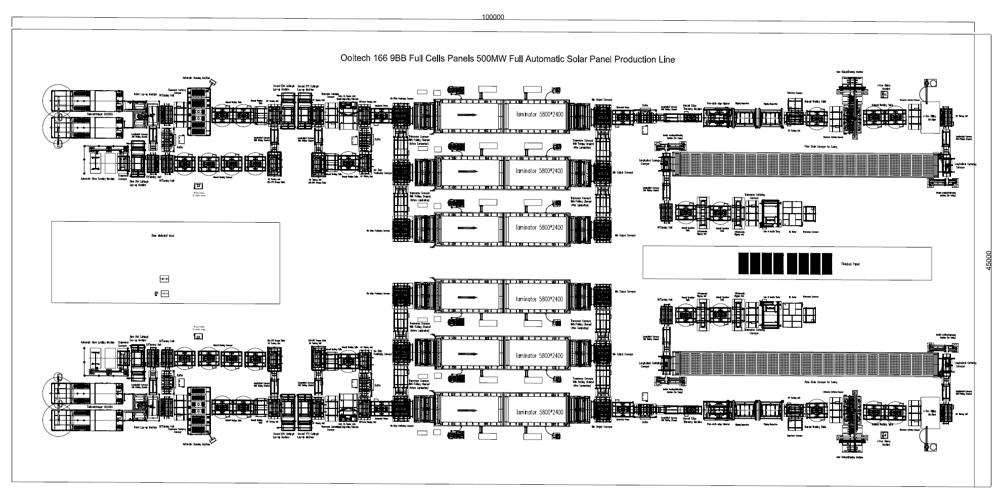

1. Factory Layout?Drawing:

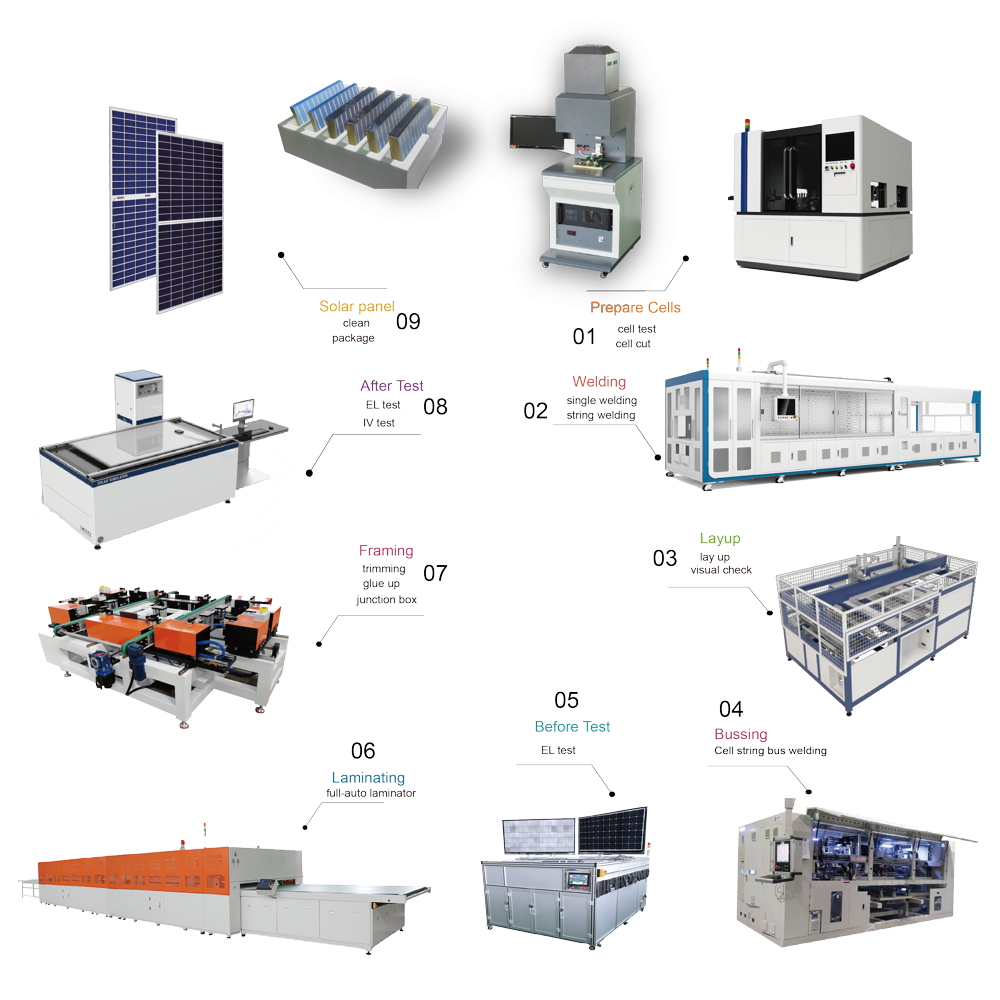

2. Function?& Picture?of Main Machines of 300MW-500MW Full Automatic Solar Panel Making Plant Solar Panel Making Machine Solar Module Manufacturing Machines:

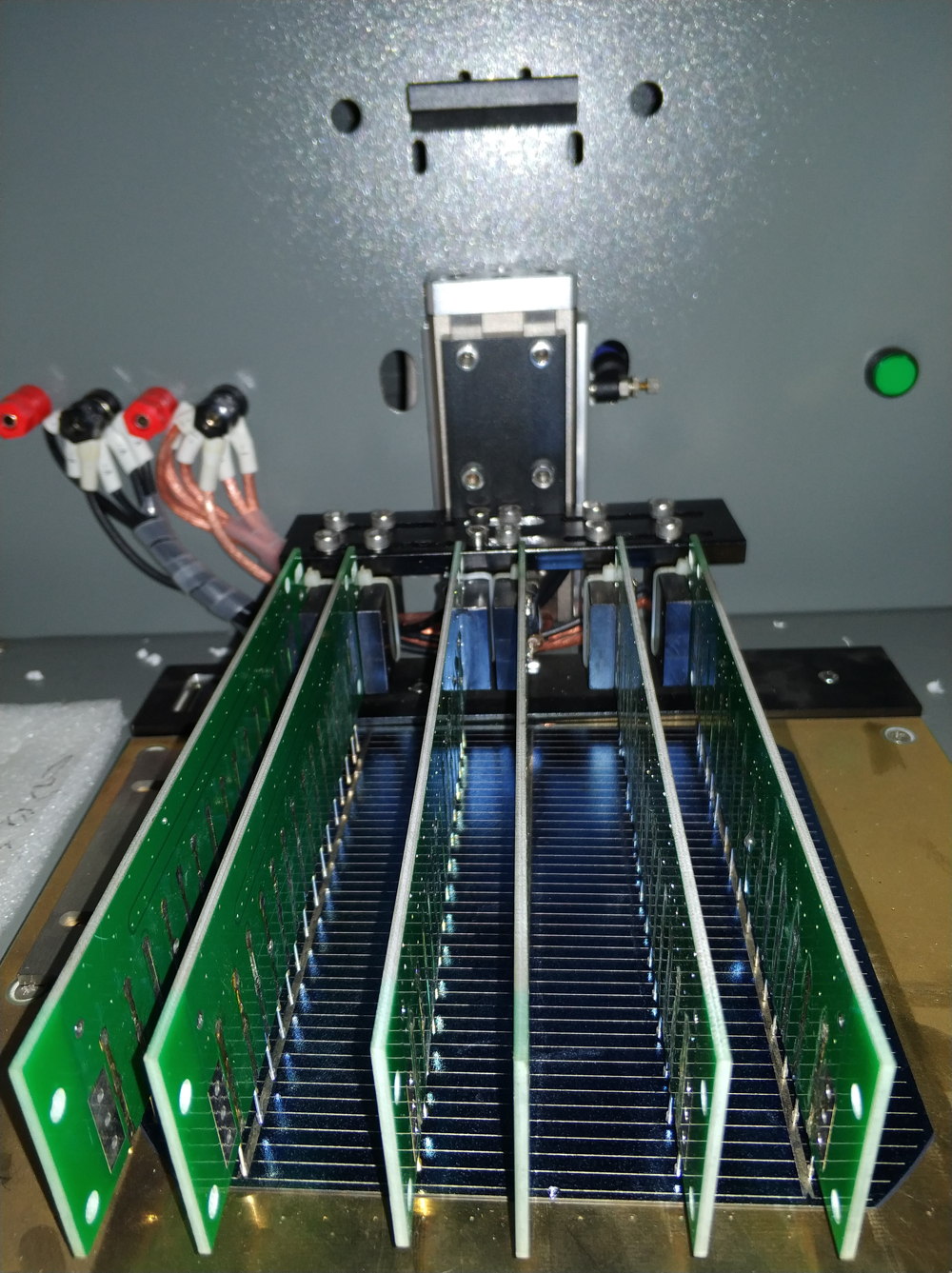

?· Solar Cell Tester and Sorter

Function:?

Solar cell tester and Sorter is used to test the electrical performance of Mono-Si or Poly-Si solar cell pieces and record the results in files.

Picture:

?· Damage Free Solar Cell Laser Cutting Machine

Function:?

Damage free solar cell laser cutting machine is used to?cut solar cell into half piece or 1/3 piece，which can increase the output of the solar panel power.

Damage free?solar cell laser cutting machine is with lower power, lower temperature, and water-free?dicing, and also has higher bending strength, better electrical performance, and no secondary pollution or water-caused micro-broken after cutting.

Picture:

?· Automatic Solar Cell Tabber Stringer Machine

Function:

?Automatic?solar?cell tabber stringer machine is?used to weld the solar cells one by one through copper ribbon, and the cells are connected in series to form a string. The entire welding process is fully automated.

Picture:

?· Solar String Lay Up Machine

Function:

Used to achieving solar string automatic laying on glass EVA, and transporting module to the next process

Picture:

?· Solar Panel Bussing?Machine

Function:

Adopt the method of separating the cell string from the glass, and grab the cell string in the air,?then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a?certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

Picture:

?· Automatic Solar Module EL Defect Tester?with Visual Inspecting Function

Function:

Automatic solar module EL defect tester with visual inspecting function is used in testing the solar cell crack，breakage, black spot，mixed wafers，process defect，cold solder jointphenomenon.

Picture:

?· Automatic Solar Laminator

Function:

Solar laminator is a mechanical device that presses multiple layers of materials together.

Picture:

?· Automatic Solar Module?Gluing & Framing Machine

Function:

Automatic gluing & framing machine is used to install the aluminum frame and automatically overflow glue.

Picture:

?· Automatic Solar Simulator

Function:

Automatic solar Simulator is used to?test the electric performance?of?Mono-Si or Poly-Si solar modules?and?record the results in files .

Picture:

3. Packaging and transportation?of 300MW-500MW Full Automatic Solar Panel Making Plant Solar Panel Making Machine Solar Module Manufacturing Machines:

4. Case of 300MW-500MW Full Automatic Solar Panel Making Plant Solar Panel Making Machine Solar Module Manufacturing Machines:
