ZTT Submarine Optical Fiber Cables (SOFC） are designed for both the repeater and non-repeater systems, and widely used in-Telecom industry-Offshore oil and gas industry-Ocean observation networkZTT has delivered over 10,000km SOFC since 1999, when she started to produce the cable. Over 1,000 km was applied in oversea projects.
●Up to 8000m design water depth●Seamless welded stainless steel tube with fiber jelly●On-line fiber excess control●Galvanized steel wires armoring●Outer PE or PP-yarn protection
●IEC 60793 & 60794 series●ITU-T G.652D, G.654, G.655, G.971~978●EIA/TIA 598

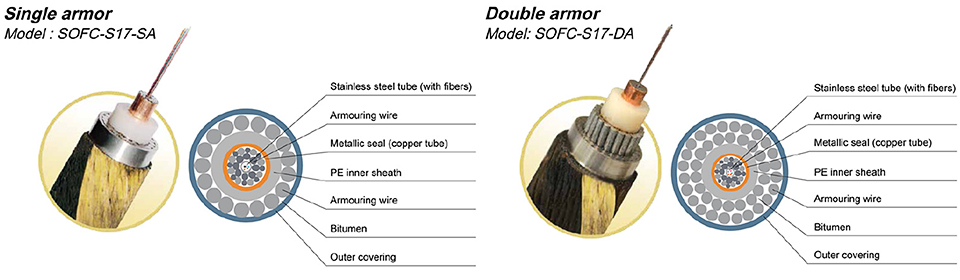

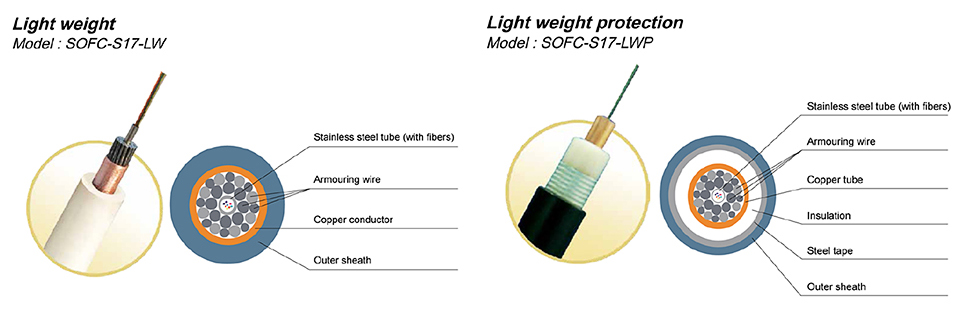

Typical structure of SOFC (S17- for Repeater System)

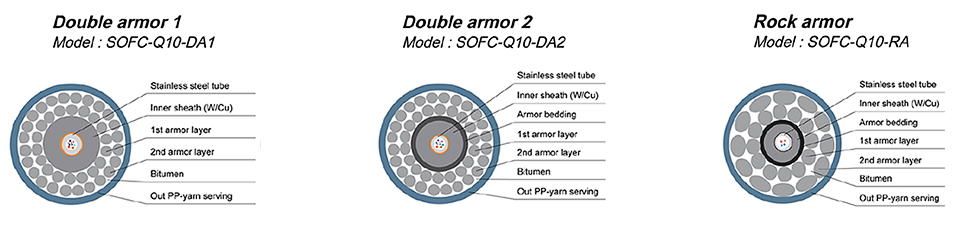

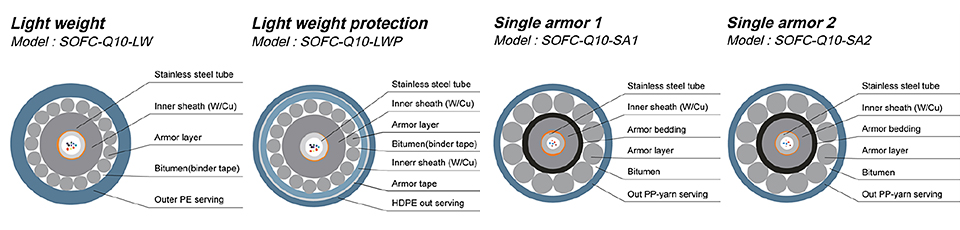

Typical structure of SOFC (Q10- for Unrepeater System)
ZTT is qualified by ISO 9001, OHSAS 18001 and ISO 14001 system. The quality assurance system covers the design and engineering, raw material selection, manufacturing, FAT and load out etc.ZTT SOFC has been qualified as per IEC and ITU test standards, which is witnessed and certified by worldwide famous third-parties, like DNV, GL, BV and SGS etc.ZTT SOFC was approved and accepted by many international end users and clients, including Saudi Aramco, Qatar Petroleum, Saipem, NPCC, McDermott, TechnipFMC, Subsea 7 and many more.
