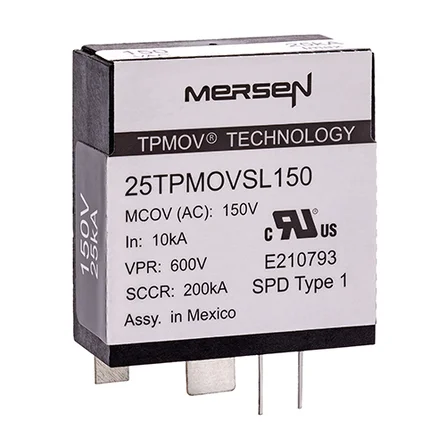

Mersen’s TPMOV technology eliminates common failure modes that occur in the field with standard metal oxide varistors. Internally each component is comprised of a voltage clamping device and a disconnecting apparatus that monitors the status of the metal oxide disc making the TPMOV surge suppression component a fail-safe device. Upon failure the TPMOV surge suppression component is also equipped with a visual pin indicator as well as a normally open micro-switch providing remote indication, if applicable. Mersen’s 25TPMOV series surge suppression component is rated for 25kA - 8/20μs peak surge current and is available for maximum continuous operating voltages (MCOV) from 150V to 320VAC.
| Item number | 25TPMOVSL150 |
| Description | SPD - TPMOV 150V Short Leads Microswitch 25 kA 500 pk |
| EAN/UPC Code | 782001492069 |
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| UL SPD Type | Type 1 Component Assembly |
| AC or DC | AC |
| Nominal Discharge Current (In) (8/20) | 10 kA |
| Indication System | Yes |
| Indication System Type | Microswitch |
| Housing Material | PET (Polyethelene Terphthalate) |
| Installation Mounting | PCB Mount |
| Product Width | 13.7 mm |
| Product Length | 30.2 mm |
| Product Height | 32.5 mm |
| Sell Pack Quantity | 500 EA |
| Sell Pack Weight | 11.299 kg |
| Sell Pack Width | 139.7 mm |
| Sell Pack Length | 782.6 mm |
| Sell Pack Height | 238.3 mm |
| Product group | Surge Protection Components for OEM Designers |
| Product Weight | 0.0283 kg |
