Reduced Cost
●?Integrated energy storage system, easily on the installation, operation and maintenance;
●Large module design, stronger than traditional energy sources Solution 50%
Safty
●?Multiple balancing measures to ensure consistent battery life cycle;
●?Integrated gas and water fire extinguishing device to ensure system safety under extreme circum-stances.
Increased Efficiency
●?Based on the 1500V platform design, the DC side efficiency can reach 93%；
●?As high as C4H the anti-corrosion level of the outter box, service life over 15 years.
Smart
●Multi-dimensional battery status analysis enables rapid analysis and location of system faults;
●Unattended cloud real-time monitoring.

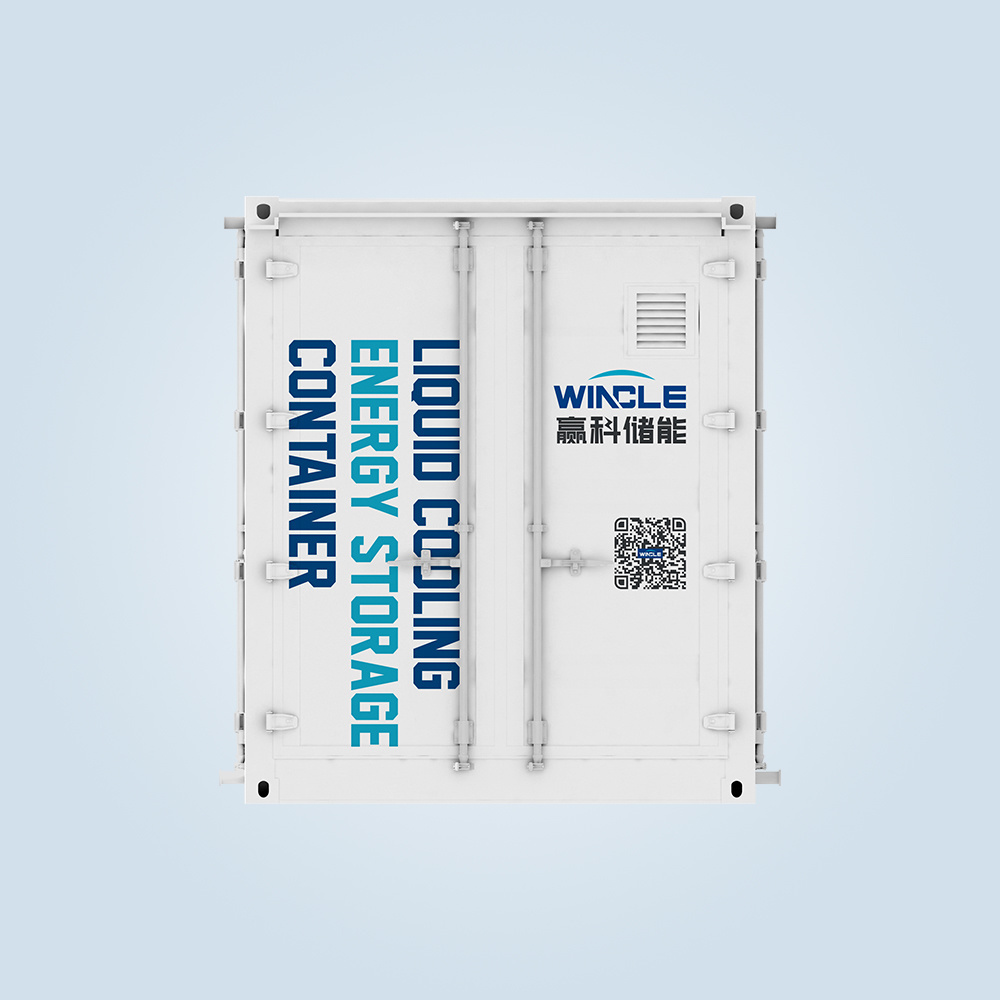

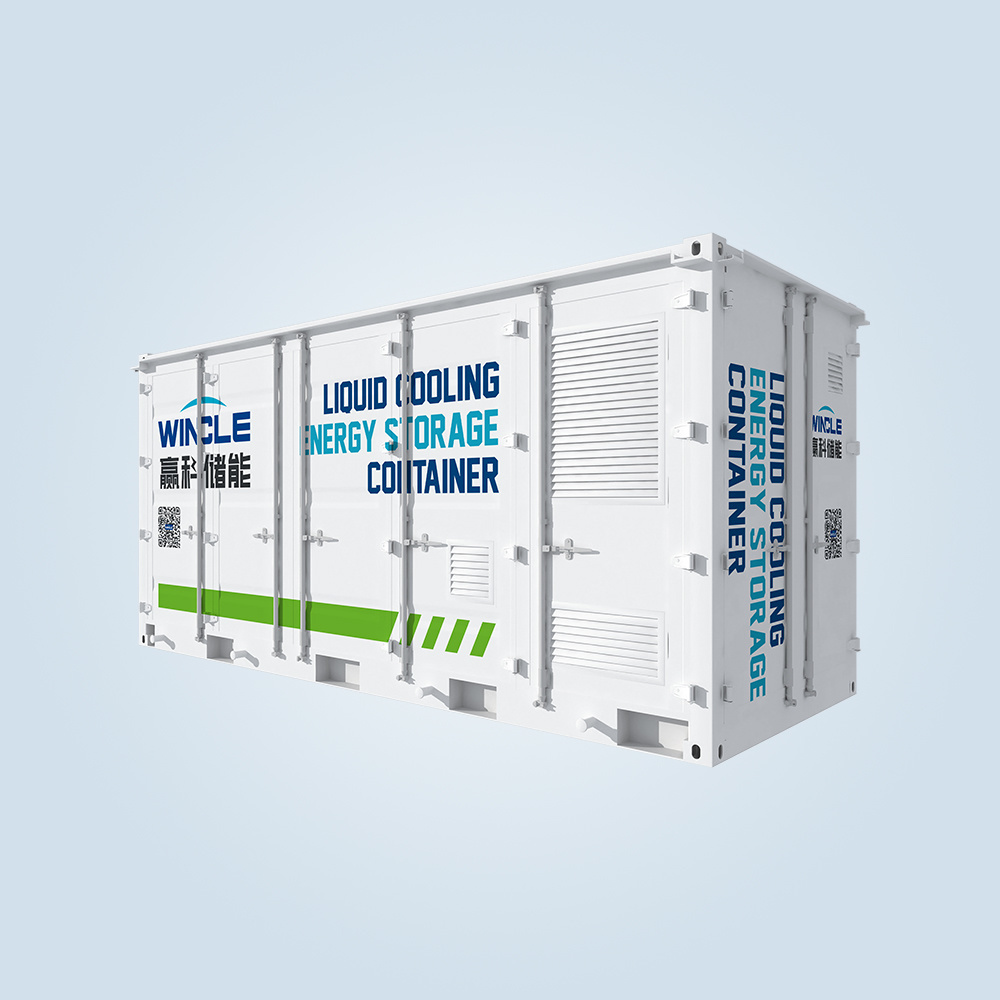

| Mode | Turtle 3.44 | Turtle 3.85 | Turtle 5 |
| Rated Capacity | 3.44 MWh | 3.85 MWh | 5.016 MWh |
| Rated Power | 1.725 MW | 2 MW | 2.5 MW |
| Rated Voltage | 1228.8V | 1228.8V | 1331.2V |
| Voltage Range | 1075.2V ~ 1382.4V | 1075.2V ~ 1382.4V | 1164.8V ~ 1497.6V |
| Battery Type | LFP | ||
| Soc Estimation Accuracy | ≤5% | ||
| Self-Discharge Rate Month | ≤3% | ||
| IP Protection Level | IP54 | ||
| Weight (kg) | 33,000 | 36,000 | 45,000 |
| Cooling Type | Liquid Cooling | ||
| Noise | <75 dB ( 1m away from the System ) | ||
| Communication Interface | Wired: LAN, CAN, RS485 | ||
| Communication Protocol | Modbus Tcp | ||
| System Certification | IEC/EN 62477, NFPA855, IEC/EN 62619, IEC/EN 60730, IEC/EN 63056, UL 1973, UL 9540A | ||
