Application:
1. Suitable for single pipe installation of screw suspension.
2. It is convenient to fix the seismic brace.
3. Effectively transfer seismic loads.
Structure:

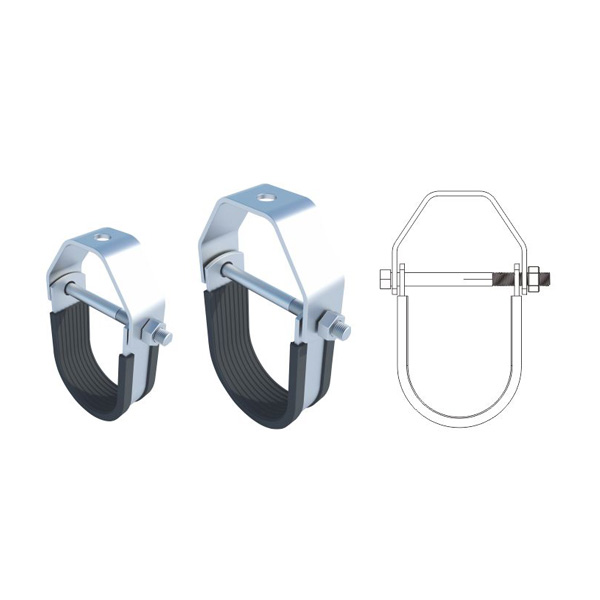

1. The upper layer hanger design, the lower layer U-shaped pipe clamp design.
2. Optimized anti-vibration and energy dissipation shape.
Installation:
1. The upper tube bundle is fixed by screws. The lower tube bundle fixes the pipeline. The bolt penetrates the upper and lower parts of the connection.
P·Standard：
1. Material: Q235B.
2. Galvanized: Electro-galvanized, thickened 8um and then sealed, produced in accordance with GBT9799 standard.
3. Other anti-corrosion treatment: hot-dip galvanizing, epoxy spraying.
