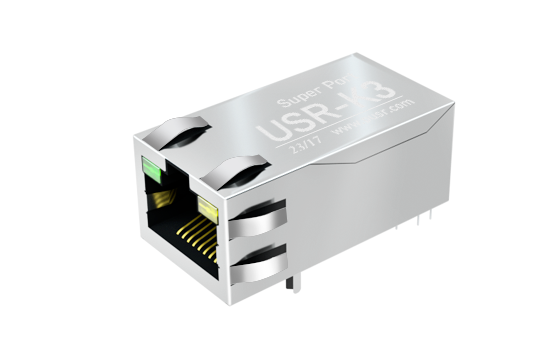

The module adopts TI Cortex-M4 SoC which can provide improved performance and higher stability.
The server can identify different clients by using registration packets.
Server can detect abnormal disconnection from the client using this feature (K3 as an TCP client).
Users can dynamically modify the baud rate of the K3 by sending PUSR customized protocol over the network.
Transfer between Modbus RTU and Modbus TCP protocol. Support Modbus multihost polling.
Built-in hardware watchdog，7*24h stable operation without downtime.
-40℃ ~ +85℃
Fully Enclosed Metal Protective Shield Built-in Ethernet Isolation Transformer
With this feature, users can change logo, style, company information and so on to advertise their own brand and enhance their brand influence
Model | USR-K3 | USR-K2 | |
Processor | TI Cortex-M4 | Atmel Cortex-M0 | |
Frequency | 120MHz | 48MHz | |
Power Supply | DC: 3.0~3.6V (3.3V is recommended) | DC: 3.0~3.6V (3.3V is recommended) | |
Consumption | 110mA (Aver)@3.3V | 136mA (Aver)@3.3V | |
Port Number | 1 x RJ45 | ||
Rate | 10 /100 Mbps, auto MDI/MDX | ||
Protection | 1.5KV electromagnetic isolation | ||
Port Number | 1 x TTL (3.3V TTL) | ||
Baud rate | 600 bps~1 Mbps | 600bps~460.8Kbps | |
Data Bits | 5, 6, 7, 8 | ||
Stop Bit(s) | 1, 2 | ||
Parity Bit | None, Even, Odd, Space, Mark | ||
Flow Control | Hardware: RTS/CTS | None | |
Serial Packet Cache | Send: 2K Bytes Receive: 2K Bytes | Receive: 800Bytes | |
Dimensions(mm) | 33.0x19.0x19.2(L*W*H) | ||
Operating Temperature | -40～85℃ | -25 ~ 75℃ | |
Storage Temperature | -40 ~120℃ | -40 ~ 90℃ | |
Operating Humility | 5%～95%(non-condensing) | ||
Storage Humility | 5%～95%(non-condensing) | ||
IP protocol | Static/DHCP | ||
DNS | √ | ||
User-defined DNS | √ | ||
Built-in Webpage | √ | ||
Config Method | Built-in Webpage, Config Software, Open Config Protocol, AT Command | ||
Work Mode | TCP Server/TCP client/UDP Server/UDP Client | ||
HTTPD client | √ | ||
Modbus Gateway | Modbus RTU to Modbus TCP Multi-host Modbus polling | ||
WebSocket | √ | None | |
Max No. of Clients in TCPS | 8 | 16 | |
User-defined Webpage | √ | ||
RF2217 Similar | √ | ||
Registration Packet | √ | ||
Heartbeat Packet | √ | ||
Certificate | *CE, FCC, *RoHS, *WEEE | *CE, FCC, RoHS, *WEEE | |
Warranty | 1 year | ||
