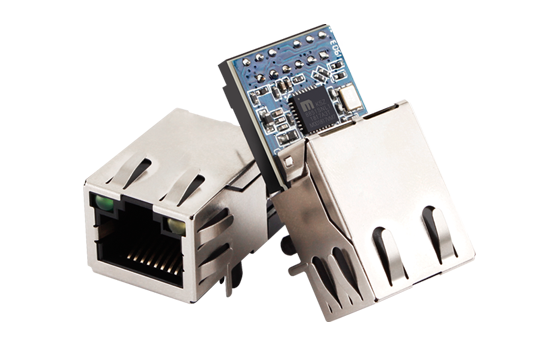

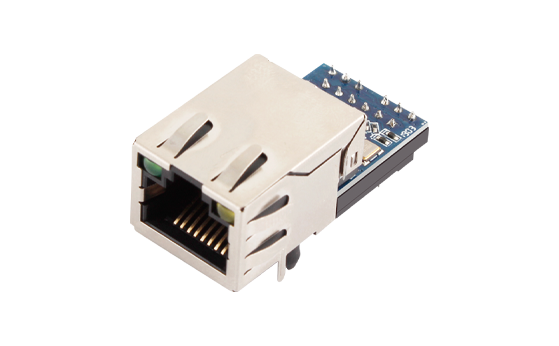

USR-K6 is developed based on the solution of ST Cortex-M0, more efficient and reliable Work tempt:-40~85℃ makes more stable.
USR-K6 is developed based on the solution of ST Cortex-M0, more efficient and reliable Work tempt:-40~85℃ makes more stable.
Embedded Ethernet module USR-K6 supports 5 work modes, configure simply and it can realize the transparent transmission of data.
It realizes the transparent transmission rabidly.
The number of clients can be connected is up to 16.
USR-K6 communicates with destination port of destination IP.
The data received by serial port is sent to the destination network which has been connected last time automatically.
It is convenient to transmit https data rapidly.
Support terminal device transmit data with webpage server directly, don not need to care about converting. Configuring parameters simply, implement the serial port to https server data request quickly.
Registration packet sends to server to identify the device. Heartbeat packet sends to server to determine the active state of the device. Heartbeat packet sends to serial port terminal to collect data automatically The content of registration package and heartbeat package and the heartbeat interval can change via commend.
If the net port or network haven’t receive the data for long time, Embedded ethernet module USR-K6 will restart when timeout to avoid abnormal situations effecting communication.
Supports webpage, AT commend, LAN configuring parameters, and provide PC configuring tool, easy to use.
Solves the problem that PC software as serial port can not communicate with networked devices
DNS server address can be configure, server address can be set, resolve the domain name rapidly and get rid of the tedious memory, not fear the change of IP.
Support TCP keepalive, the abnormal disconnection will be detected rapidly.
Configuring serial port baud and parameters via network protocol. the baud of virtual.com and parameter synchronous with USR-K6 in time.
TTL to Ethernet module USR-K6 can realize the data transmission between serial port and network quickly thus reducing the manpower on duty. At the same time,multiple medical devices can be combined into local network to realize real-time information.
Many traditional serial port devices does not have networking capability. USR-K6 module integrated TCP/IP protocol stack can provide the solution of network communication between serial device to server via network based on socket to improve the level of industrial automation.
The power data of the distribution box needs to be collected and reported in real time. Tiny size module USR-K6 is industrial-grade design which can provide reliable and stable networking functions and suitable for the integrated project requirements of power monitoring
