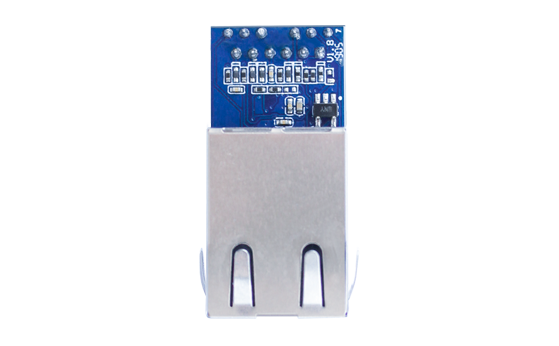

Model | USR-K7 |
Processor | Cortex-M7, NXP chip |
Power Supply | DC: 3.0~3.6V(3.3V is recommanded) |
Consumption | M4 Version:[email protected](The old K7) |
Ethernet Port Number | 1 x RJ45 |
Ethernet Rate | 10 /100 Mbps, auto MDI/MDX |
Ethernet Protection | 1.5KV electromagnetic isolation |
Serial Port Number | 1 x TTL (3.3V TTL) |
Baud rate | 600 bps~1 Mbps |
Data Bits | 7, 8 |
Stop Bit(s) | 1, 2 |
Parity Bit | None, Even, Odd |
Flow Control | Hardware: RTS/CTS |
Serial Packets Cache | Dynamic packet cache |
Dimensions(mm) | 33.0x19.0x19.2(L*W*H) |
Operating Temperature | -40～85℃ |
Operating Humidity | 5%～95%(Non-condensing) |
Storage Humidity | 5%～95%(Non-condensing) |
IP protocol | Static/DHCP |
DNS | √ |
User-defined DNS | √ |
Built-in Webpage | √ |
Config Method | Built-in Webpage, Config Software, Open Config Protocol |
Work Mode | TCP Server/TCP client/UDP Server/UDP Client /HTTPD Client |
Max. Clients of TCP server | Up to 16 |
Modbus Gateway | √ |
Websocket | x |
Customized Webpage | √ |
RFC2217 | √ |
Registration Packet | √ |
Heartbeat Packet | √ |
Certificate | CE, FCC, Rhos |
Warranty | 1 year |
