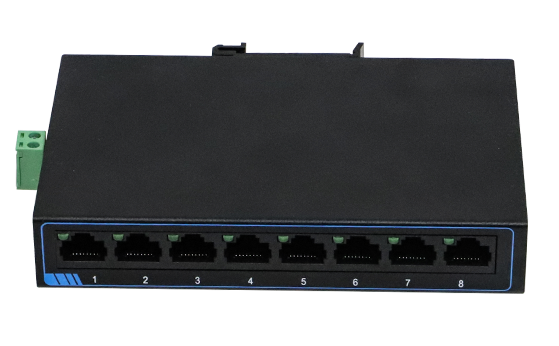

SF1008 is a 8-port 10/100Mbps unmanaged Ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port. Flow control ensures that nodes can avoid packet loss as much as possible when transmitting&receiving. The product is compatible with both 10Base-T and 100Base-TX standards, the port rate automatically adapts to 10 or 100Mbps. The product casing is made of frosted iron which makes it pressure-resistant, wear-resistant and explosion-proof, also meets the requirement of wide-temperature range operating. Featured with highly integrated and compact design, lightweight, easy to use, plug-and-play and supporting desktop/wall-mounted and DIN rail installation, the product is suitable for small&medium-sized offices, home and quasi-industrial uses.
Parameters Specifications | ||||
Model | USR-SF1005 | USR-SF1008 | USR-SG1005 | USR-SG1008 |
Data Transfer Rate | 10/100M Auto Negotiationand Auto MDI/MDIX RJ45 | 10/100/1000M Auto Negotiation and Auto MDI/MDIX RJ45 | ||
Number of Ports | 5 | 8 | 5 | 8 |
Switching Modes | Store and Forward | |||
Switching Capacity | 1.0G | 1.6G | 10G | 16G |
Packet Forwarding Rate | 10Mbps:14880pps 100Mbps:148800pps | 10Mbps:14880pps 100Mbps:148800pps 1000Mbps:1488000pps | ||
MAC Address Table | 2K | |||
Network Media (Cable) | 10Base-T：UTPCategory 3, 5 cable 100Base-TX：UTPCategory 5 cable | |||
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3az | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3az, IEEE802.3ab | ||
LED | Port: Link/Act Indicator 100M Link/ACT：Green POWER：Red | Port: Link/Act Indicator 1000M Link/ACT：Green POWER：Red | ||
Mounting | 35mm DIN Rail Mounting Flat mounting | |||
Dimensions | 100*77*31mm | 140*90*31 mm | 100*77*31mm | 140*90*31 mm |
Certifications | CE ROHS FCC WEEE | |||
Operating environment | Operating temperature:-5℃~45℃ Storage temperature: -10℃~70℃ Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing | |||
Power & Consumption | Input:DC12V /0.5A，Consumption:<3W | Input:DC12V /0.5A, Consumption:<4W | ||
Accessories | Power adapter(Optional), Terminal Block, Quick Start Guide | |||
