■ Product application
Heating vertilation air conditioning
New energy automotive cooling circuit
■ Product information
Ambient temperature: -40 to +125℃
Medium temperature: -40 to +120℃
Medium: Clear water antifreeze
Weight: 0.46Kg
Protection level: IP67
Insulation level: H
Service life: 20000 hours
Inlet and outlet: 21.3± 0.3mm

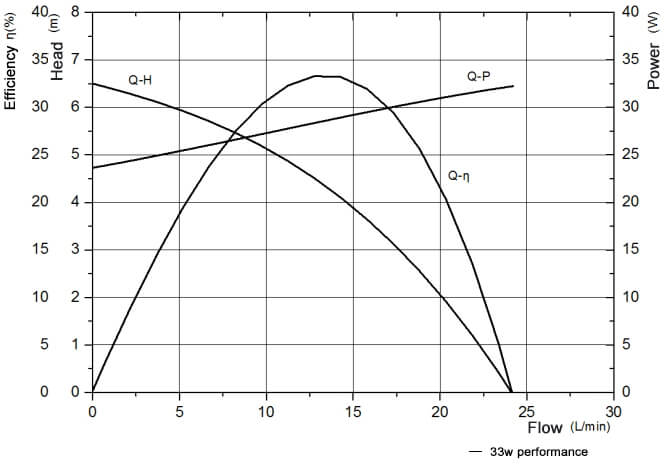

■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Power | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-16 | 2.7 | 6.5 | 24 | 33 | ≤35 |
