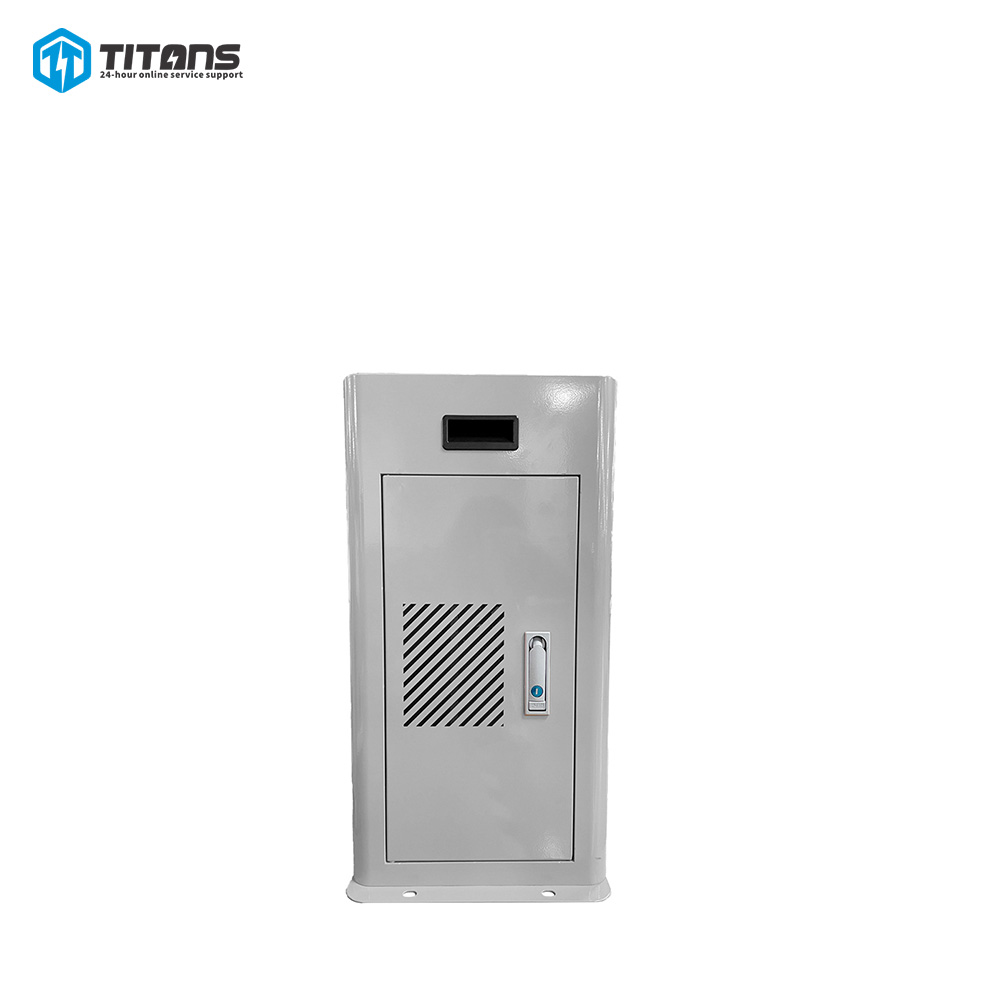

The AGV Intelligent All-in-One Machine charger with a floating mechanism is a compact, highly efficient solution for automated material handling in industrial environments. It integrates advanced navigation, communication, and control systems, making it ideal for logistics, warehousing, and manufacturing.
A standout feature is its floating mechanism, which automatically adjusts to uneven surfaces or varying floor heights, ensuring smooth and stable movement across different terrains. This enhances the AGV's adaptability and reliability, allowing it to operate in complex environments without manual intervention.
The intelligent system supports autonomous navigation, using sensors and algorithms to detect obstacles, plan optimal routes, and safely transport goods. The all-in-one design combines powerful computing, wireless communication, and control capabilities, enabling seamless coordination with other machines and systems within the facility.
More
|
Technical Parameters |
|
|
Model |
All-in-one Intelligent AGV (floating mechanism) |
|
System Input Characteristics |
|
|
Ac Input Voltage |
220Vac |
|
Power Supply |
Single-phase three-wire (L+N+PE) |
|
Ac Network Frequency (HZ) |
50～60Hz |
|
Leakage Current |
<3.5mA |
|
Start-Up Inrush Current |
Less than 10% of the rated input current |
|
System Output Characteristics |
|
|
Output Voltage |
20Vdc~60Vdc |
|
Output Current Range |
5A~50A |
|
Output Power (kW) |
3kW |
|
Voltage Regulation Accuracy |
≤±0.5% |
|
Current Regulation Accuracy |
≤±1% |
|
Voltage Ripple |
≤±1% |
|
Efficiency |
≥93% |
|
Overload Capacity |
110% of rated power |
|
Communication Interfaces |
RS485 interface、CAN interface、Ethernet Interface |
|
Protection Functions |
|
|
Battery Reverse Polarity Protection |
Yes |
|
Output Short Circuit Protection |
Yes |
|
Output Overvoltage/Overcurrent Protection |
Yes |
|
Overtemperature Protection |
Output shuts down if internal temperature >65℃ |
|
Abnormal Protection |
Shuts down with no output if power device anomaly occurs |
|
Other Parameters |
|
|
Protection Level |
IP20 |
|
Overvoltage Category |
OVC III |
|
Operating Temperature |
-20℃ to +65℃ (derated output from 45-65℃) |
|
Storage Temperature |
-40℃～+75℃ |
|
Relative Humidity |
5～95%, non-condensing |
|
Altitude |
Full load output up to 2000m |
|
Charger Dimensions |
510*475*808mm (L*W*H) |
|
Product Weight |
35kg |
|
Cooling Method |
Air cooling |
