Material:Enhanced polyamide with high tension and pull-out strength, excellent flexibility, steady-going capacity in high or low temperature. lt can be used outdoors.
Resistant against: oil, salt, light acid, soft lye.
Max velocity and max accelertion respectively: 5m/s and 5m/s (specific information may be decided by operation conditions); Operation life:
Under the condition of normal overhead use, it can reach 5 million times for reciprocating motion (detailed life in accordance with operation conditions).
| Tensile Strength | 180N/mm | Volume Resistance | 10^10~10^15Ω |
| Impact Strength | 50KJ/m | Water Absorption(23℃) | 4% |
| Temperature Range | -40℃~130℃ | Friction Coefficient | 0.3 |
| Surface Resistance | 10^10~10^12Ω | Flame-retardant | HB (UL94) |
L=S/2+πR+K
Length of chains: L=S/2+πR+K(spare space)
K=P+(2~3)T
| Inner Height (mm) | 10 |
| Max outer diameter of cables (mm) | 8 |
| T Pitch (mm) | 20 (50segments/m) |
| Max Horizontal hanging Length | 0.8 |
| Optional Bending Radius | 18/28/38 |

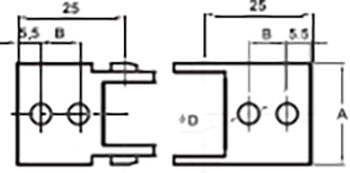

| Type | Inner width Bi(mm) | outer width Ba(mm) | Type of according fixed connector | A(mm) | B(mm) | D(mm) |
| 10.10.R | 10 | 18 | 10.10.12PZ | 18 | 9 | 3.5 |
| 10.15.R | 15 | 24 | 10.15.12PZ | 24 | 9 | 3.5 |
| Inner Height (mm) | 15 |
| Max outer diameter of cables (mm) | 13 |
| T Pitch (mm) | 26.5 (38segments/m) |
| Max Horizontal hanging Length | 1.0 |
| Optional Bending Radius | 28/38/50 |

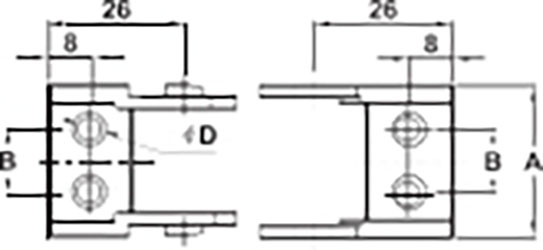

| Type | Inner width Bi(mm) | outer width Ba(mm) | Type of according fixed connector | A(mm) | B(mm) | D(mm) |
| 15.20.R | 20 | 29 | 15.20.12PZ | 29 | 12 | 4.5 |
| 15.30.R | 30 | 40 | 15.30.12PZ | 40 | 24 | 4.5 |
The detailed value of R must be chosen from the dimensions
Guiding the cables for moving
Protecting the cables when moving up and down
Applied to use in reciprocating motion so as to have traction and protection effects on built-in cables, inner oil tubes, gas tubes. water tubes, etc;
Each segmental part of the engineering plastic cable chain can be opened for easy installation and maintaining; While working, the engineering plastic chain is in low noise, anti-abrasion, high speed movement;

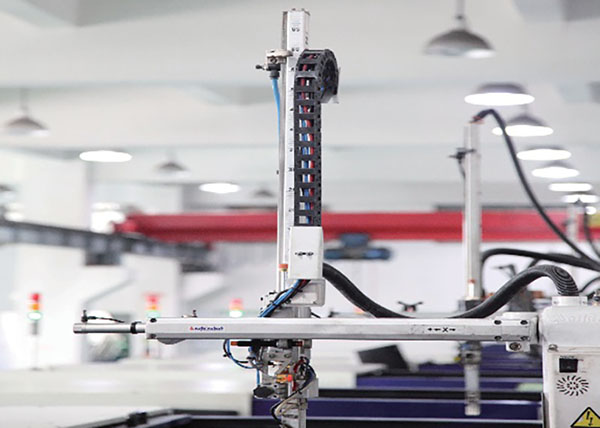

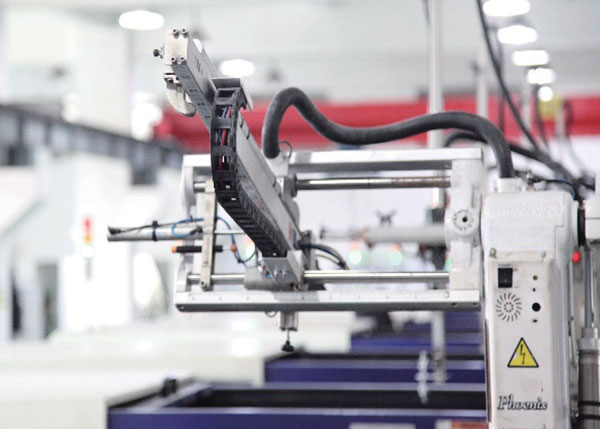

Widely applied to numerically controlled machine tools, electronic devices, dimension stone mechanism, glass mechanism, door-window mechanism, plastic jetting-moulding machine, manipulator, weight handling equipment, auto warehouse, etc.
