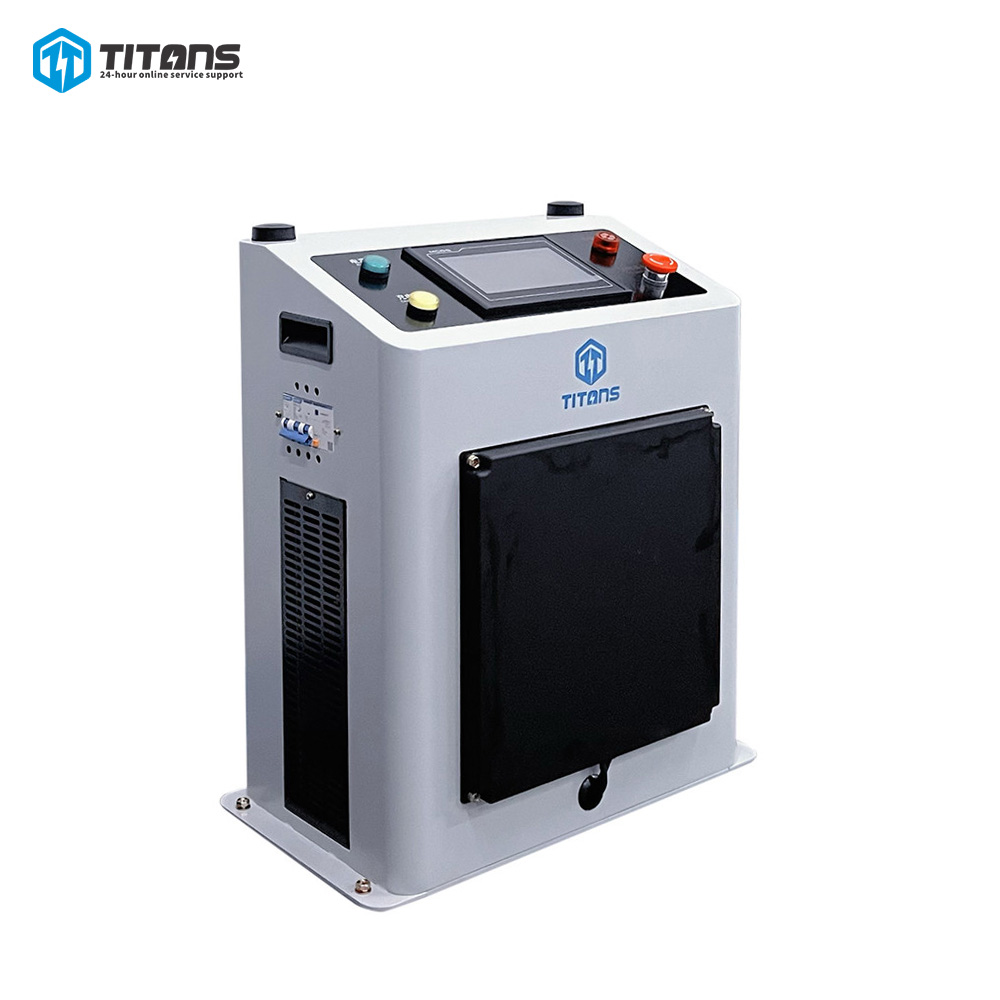

The wireless charger is a cutting-edge solution that delivers efficient, contactless energy transfer, eliminating the need for metal charging contacts. Without physical connections, it avoids wear and tear on terminals, ensuring a longer lifespan and greater reliability. The absence of charging sparks also enhances safety, making it ideal for both indoor and outdoor use.
With a high protection rating, the wireless charger is built to resist dust and water, maintaining optimal performance even in challenging outdoor environments like rain or dusty conditions.
More
|
Technical Parameters |
|
|
Model |
TTAC-WPT 4850 |
|
System Input Characteristics |
|
|
Input Voltage |
AC 220V ±15% 50/60Hz |
|
Input Current |
16A |
|
Enclosure Material |
Aluminum Alloy |
|
AC Input Cable Length |
1M, customizable |
|
Transmitter Coil Output Cable Length |
1M (customizable, maximum 2M) |
|
Transmitter Coil Enclosure Material and IP Rating |
PC+Aluminum Plate, IP65 (Potting) |
|
Receiver Specifications |
|
|
Output Voltage |
40-60V |
|
Rated Output Current |
50A Max (adaptable range: 10-50A) |
|
Load Type |
Battery |
|
Receiver Coil Enclosure Material and IP Rating |
PC+Aluminum Plate, IP65 (Potting) |
|
Receiver Coil Output Cable Length |
1M (customizable, maximum 2M) |
|
Receiver Controller Enclosure Material and IP Rating |
Aluminum Alloy, IP65 |
|
DC Output Cable Length |
1M (customizable, maximum 3M) |
|
Other Parameters |
|
|
Chassis Dimensions |
540*325*600 mm (L*W*H) |
|
Human-Machine Interaction |
7-inch Touchscreen |
|
Interface |
CAN 1-way |
