Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

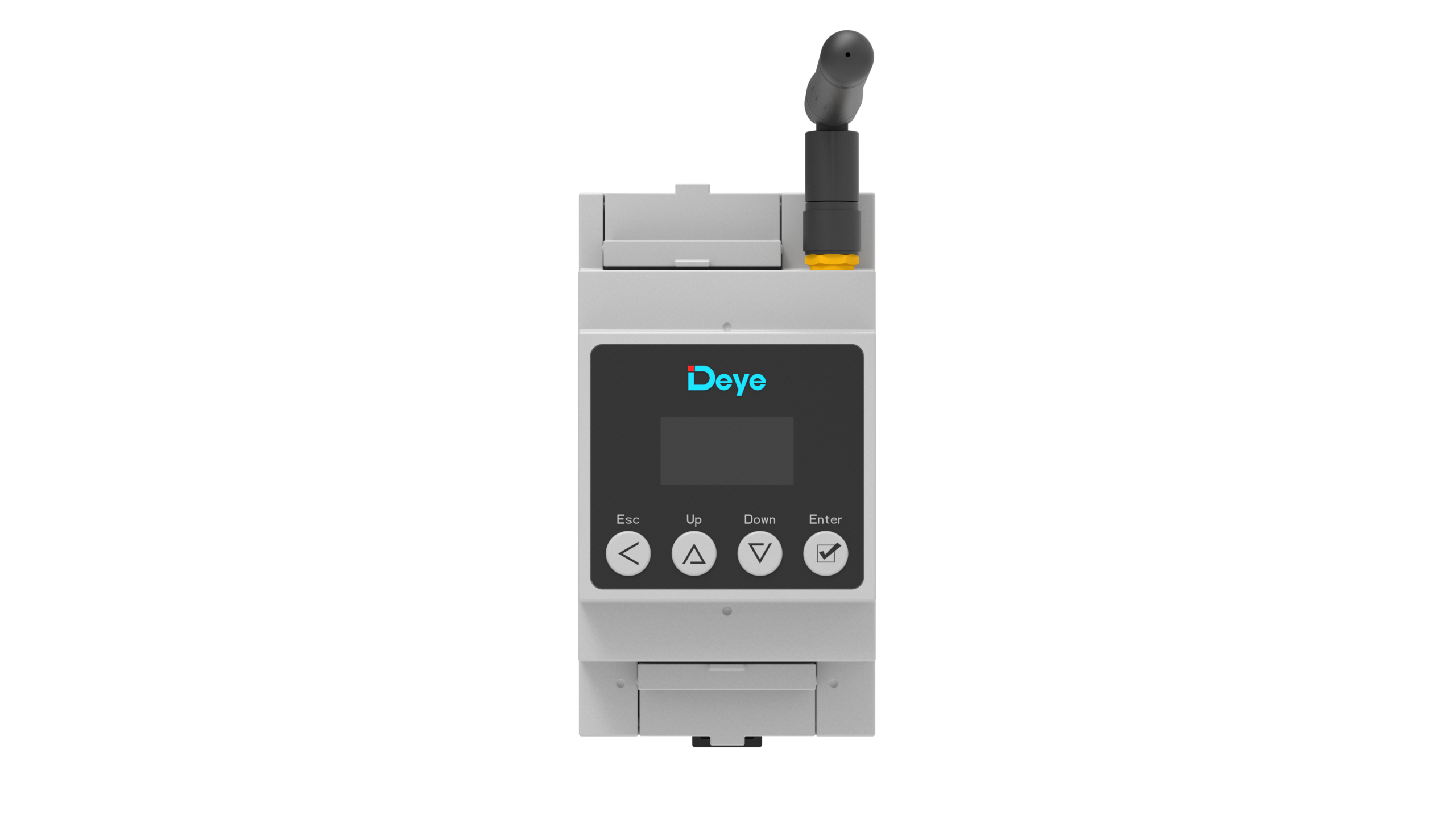

| Model | SUN-SMART-CT01 |
| Electrical param | |
| Connection Type | L1/N(Single phase)，L1/L2/L3/N(Three phase) |
| CT | Secondary current: 50mA |
| Operation Voltage | 85~300Va.c.(L-N) |
| Rated Frequency/Range | 50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz) |
| Self Consumption Power | ≤2W |
| AC voltage withstand | 4KV/1min |
| Accuracy | |
| Voltage | ±0.1V |
| Current | ±0.01A |
| Frequency | ±0.01Hz |
| Power | ±1W |
| Communication and Display | |
| Communication Interface | Lora/RS485 |
| Lora Communication Distance | ≈200m(Barrier free) |
| Display | LCD |
| Display Data | Voltage_x001f_Current_x001f_Active power_x001f_Reactive power_x001f_Frequency_x001f_Power Factor_x001f_Energy |
| General Data | |
| Operation Temperature | -40 to +60℃ |
| Operation Humidity | 0-75% |
| Ingress Protection(IP) Rating | IP20 |
| Altitude | ≤4000 |
| Mounting | DIN-Rail Mounting |
| Size | 53x96x64mm |
| Weight | 0.15kg |
| Warranty | 5 Years |
| Certification standards | IEC/EN 61010-1 |
