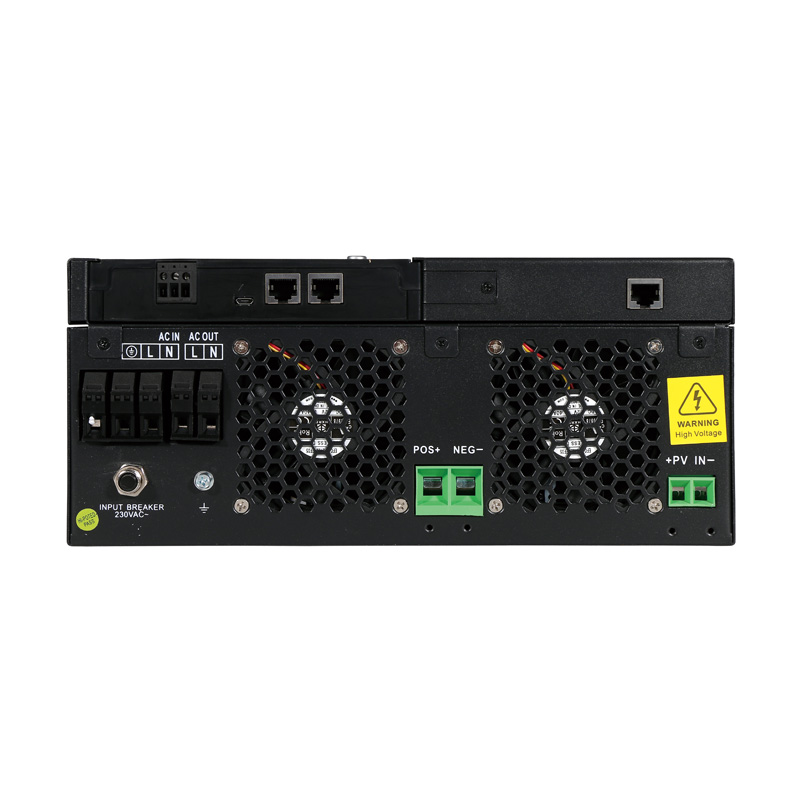

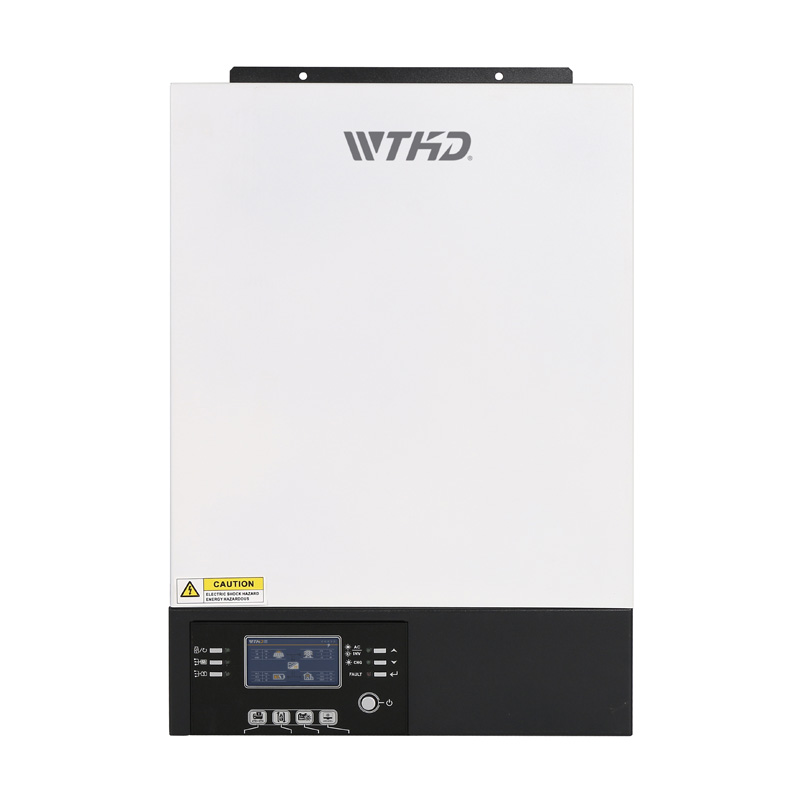

WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems

WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems

  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
Summary
WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems. High-efficiency pure sine wave inverter (PF=1) with wide 120V–500V DC PV input, ideal for off-grid and hybrid solar setups. Features Bluetooth monitoring, 2X surge power for motor loads, and battery-free operation using grid or solar input. Designed for residential and commercial renewable energy systems requiring reliable, intelligent power management with detachable LCD control and multi-communication options.More
Specifications
Power Range:
3200-5600W
Waveform Type:
Pure Sine Wave
PV Input Voltage Range:
120V dc -500V dc
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems
  • WTHD-VM 3200-5600W Pure Sine Wave Inverter with MPPT 80A & 60A Charger for Solar Energy Systems

1. Support Bluetooth for mobile monitoring (Android App available);

2. Detachable LCD control module with multiple communications;

3. High efficiency pure sine wave inverter(PF=1); Wide PV input range(120V dc -500V dc) 80A MPPT SCC; Intelligent 3stage 60A AC battery charger;

4. Surges to 2X continuous power for 5 seconds for motor loads;

5. Programmable Utility and Solar output usage timer and prioritization;

6. Support operation without battery, supply power from Grid or PV if battery not available;

7. Auto restart while AC is recovering;

8. Field serviceable with replacement boards and spare parts.
