| Rating | No-Load Loss | On-Load Loss | W(mm) | Oil Weight(kg) | Total Weight(kg) |
| 75kVA | 180 | 1250 | 1280/1480 | 120 | 645 |
| 150kVA | 280 | 2200 | 1280/1480 | 201 | 989 |
| 225kVA | 400 | 3050 | 1280/1480 | 230 | 1195 |
| 250kVA | 480 | 3650 | 1280/1480 | 260 | 1415 |
| 500kVA | 680 | 5100 | 1280/1480 | 325 | 1905 |
| 750kVA | 980 | 7500 | 1730 | 535 | 2755 |
| 1000kVA | 1150 | 10300 | 1730 | 650 | 3235 |
| 1250kVA | 1360 | 12000 | 1730 | 680 | 4050 |
| 1500kVA | 1640 | 14500 | 1730 | 748 | 4200 |
| 2000kVA | 1940 | 18300 | 1730 | 850 | 4600 |
| 2500kVA | 2500 | 25500 | 1730 | 1450 | 4900 |
| 2750kVA | 2600 | 23600 | 1730 | 1800 | 6300 |
| 3000kVA | 2730 | 27000 | 1730 | 2400 | 7000 |
| 3750kVA | 3500 | 38000 | 1850 | 2800 | 7200 |
If you are interested in our transformers and related transformer accessories, please get more information and professional solutions through this website or directly through [email protected]

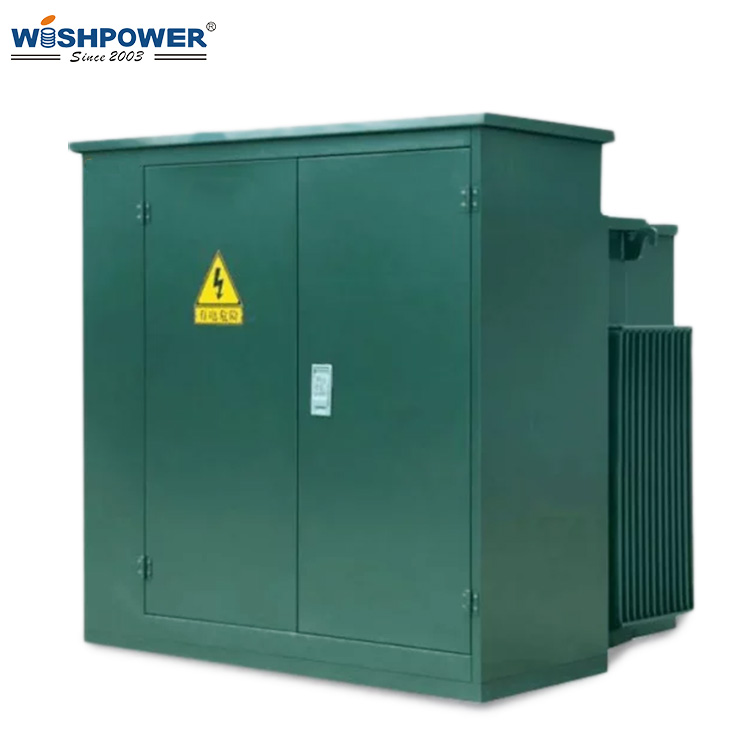

YB Series Prefabricated Transformer Substation provides efficient energy management functionality for different application domains. The Prefabricated Transformer merges high-voltage switchgear elements with a transformer and low-voltage distribution hardware into one pre-assembled container design to provide a new competitive solution for standardized substations. The substation benefits from having a prefabricated modular design that cuts down project installation times and lowers labor expenses. installation times are reduced substantially because the pre-engineered solution arrives ready for connection which speeds up the commissioning process. The unit features customizable operations for different voltage and load specifications which make it adaptable for diverse project needs. The YB Series exists for extended usage demands through the combination of premium insulation materials and heavy-duty protective containers made to face harsh outdoor elements. This substation guarantees reliable power distribution and secure distribution when installed at different locations including cities industries and renewable energy sites.
Prefabricated construction design provides optimized space management and a simple assembly process which makes it suitable for limited spaces.
This equipment demonstrates high reliability by featuring strong weather resistance through effective insulation and protective compartments which ensure operation safety that extends equipment life span.
The system distributes power through innovative transformer technology which enhances both efficiency of energy usage and loss reduction.
The product allows different voltage setups and specific project configurations.
The modular construction design helps technicians maintain the power grid system by giving them simple access to all components for servicing.
The system features sensible energy-efficient components and low-loss transformers which reduce environmental harm.
The available Smart Monitoring System functions with predictive maintenance capabilities and facilitates real-time monitoring and diagnostic services through its intelligent features.
The YB Series Prefabricated Transformer Substation processes high-voltage electricity through transformer integration before it distributes the power at lower voltages for different applications. The YB Series Prefabricated Transformer Substation includes high-voltage switchgear for supply protection and distribution across the low-voltage section that ensures end-user safety. The powerful combination of components improves both power reliability and security measures.
Industrial operations across the country depend on the YB Series Prefabricated Transformer Substation for their power distribution needs.
Urban power distribution networks
Industrial and commercial facilities
Construction sites
The installation of wind and solar energy facilities belongs to renewable energy projects.
Residential complexes
Railways, airports, and data centers
Implement GB/T17467, IEC 60076, UL, ANSI, IEEE, DOE, CSA, and NEMA standards
Customers can select transformer substation models with voltage capability ranging between 11kV to 33kV and beyond to fulfill local power standards.
Our transformers are available with capacities starting from 100kVA up to 2500kVA which meets different power requirements.
Protection Level: Designed with IP54 or higher-rated enclosures for enhanced safety and durability.
This product operates within the temperature range from -40°C to +55°C which provides dependable performance under severe climate conditions.
Primary Voltage Ratings:34.5-19.92kV/13.8-7.957 kV/13.2-7.62 kV/12.47-7.2 kV or othersSecondary Voltage Ratings:240V/480 V/480-277 V/600-347 Vor others
H.V.Tap Range:+2×2.5% or others
Connection Type: D/Y
Application: Residential areas, hotels, single-family houses, parks, underground distribution systems
Power Rating:75-5000 kVA
This equipment uses two possible fluids: Mineral oil together with biodegradable natural vegetable oil.
Installation time becomes shorter because substation units arrive from the factory already assembled.
Low Maintenance Needs Exist Because The Sealed Modular Design Prevents Both Dust Entrance and Moisture Penetration Thus Lengthening Service Life.
Safety Features: Equipped with overload protection, short-circuit protection, and temperature monitoring systems.
Several different projects across the world have employed our YB Series Prefabricated Transformer Substation successfully.
Smart City Power Grid Upgrades: Enhancing urban energy efficiency with intelligent distribution systems.
Industrial Manufacturing Zones: Providing stable power supply for production facilities.
Renewable Energy Integration: Supporting solar farms and wind power stations with seamless energy transformation.
Manufacturing projects that require extensive power distribution utilize this system in railway systems as well as airports and highway networks.
The YB Series Prefabricated Transformer Substation establishes itself as an economical solution that addresses future power distribution needs. This entity follows international safety protocols while streamlining installation procedures to provide a dependable power supply for running vital operations. The substation enables smooth power management through its uses in urban infrastructure and industrial procedures as well as renewable energy systems.
